Specifications

Click here to download a list of our standard specifications

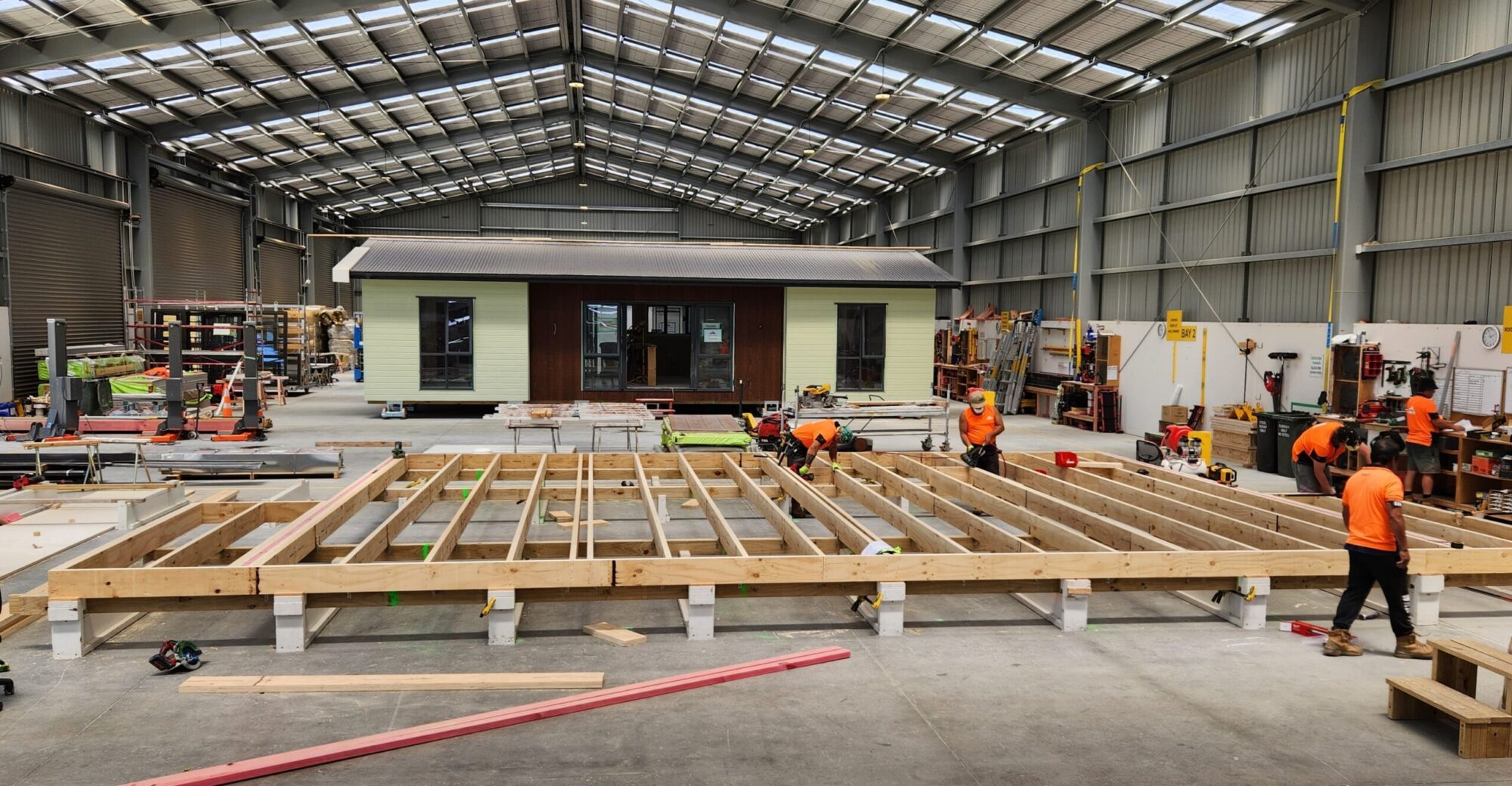

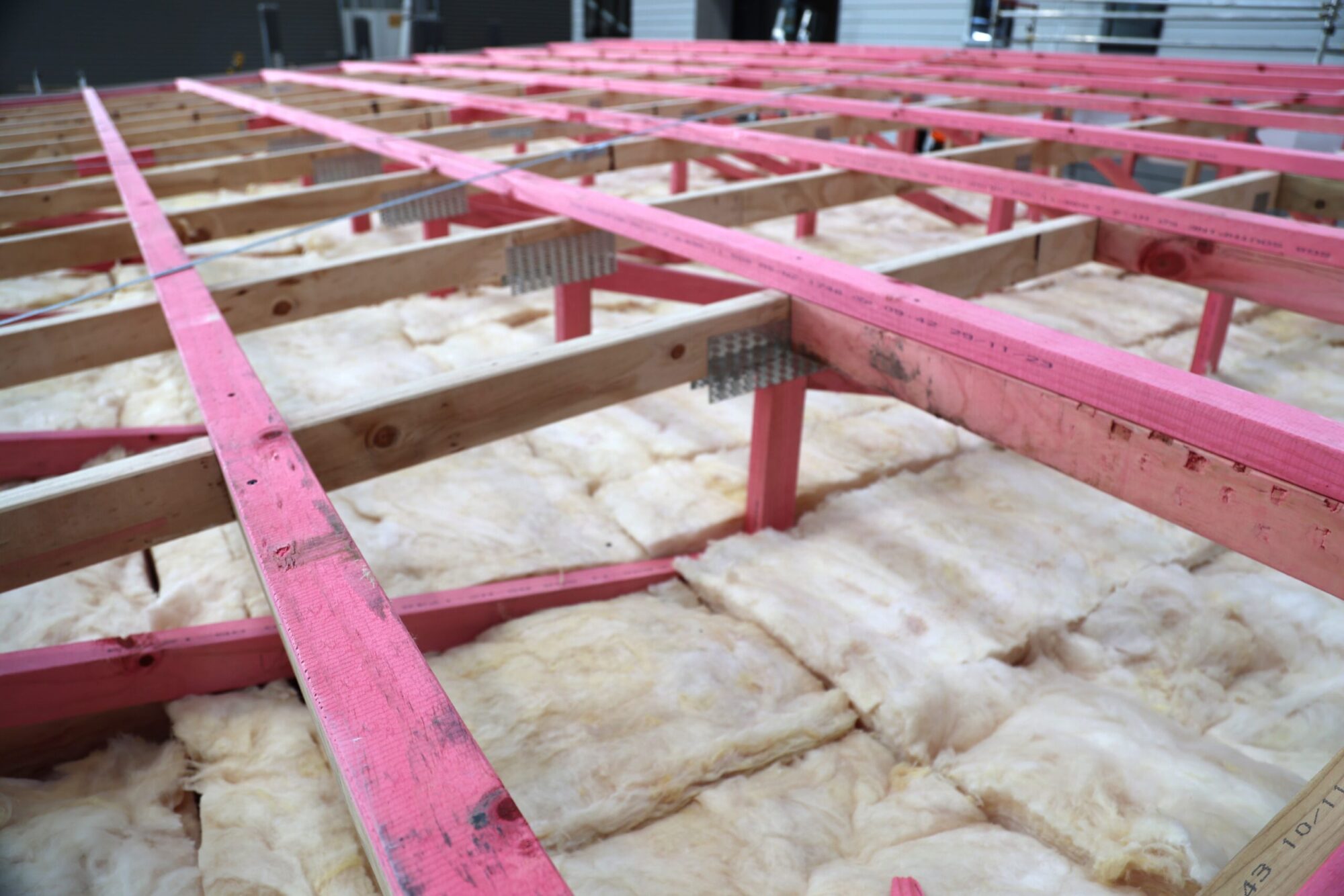

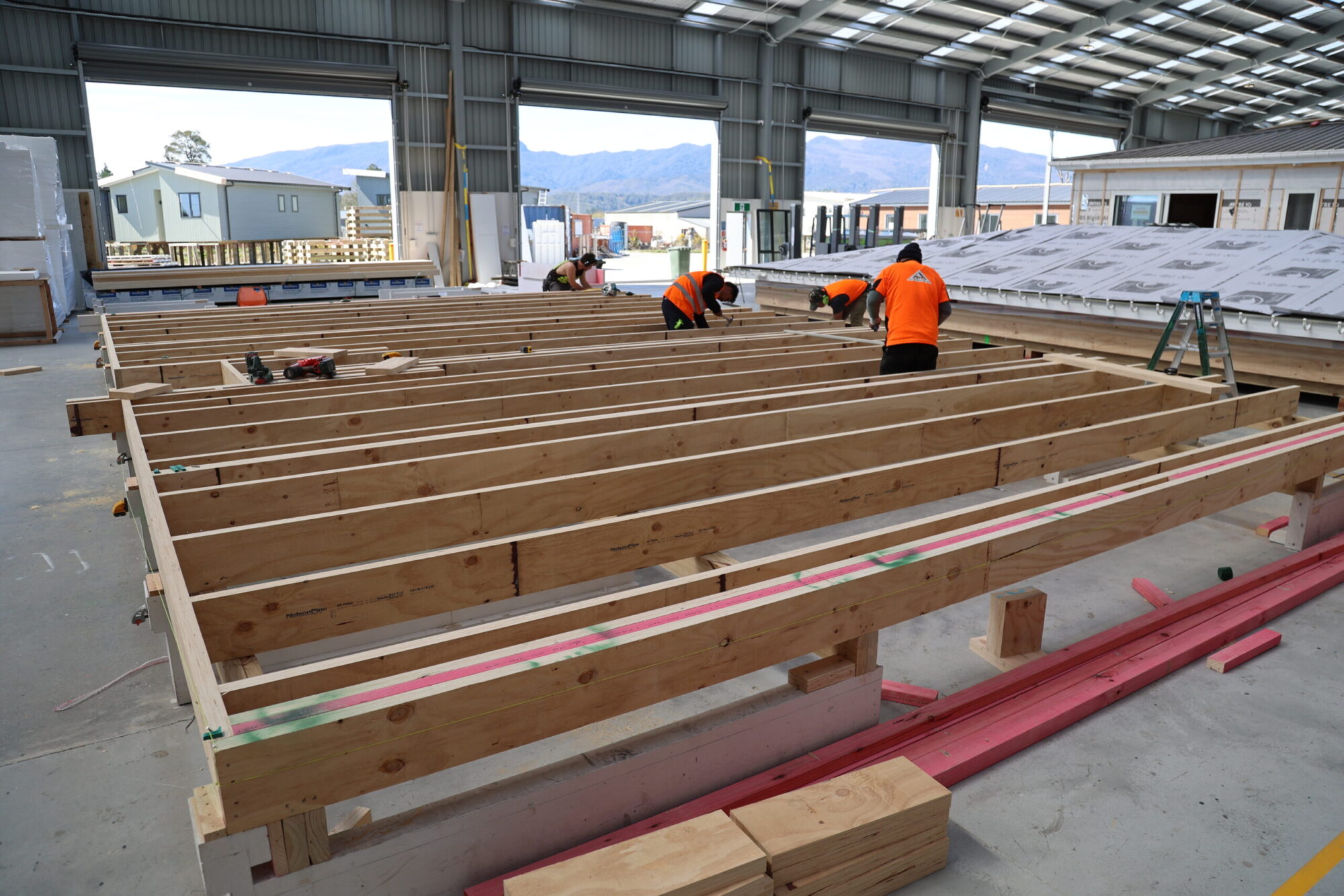

Subfloor

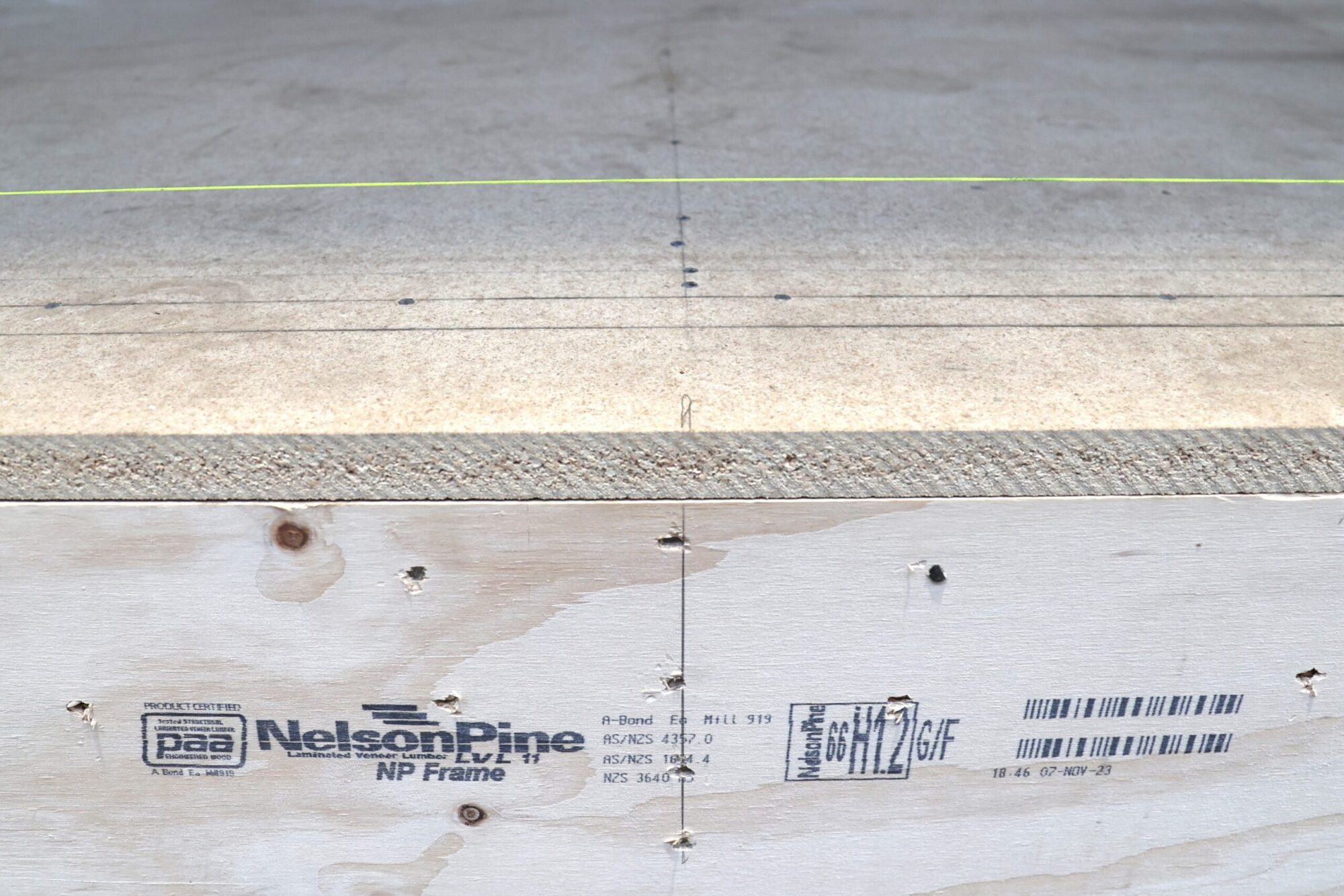

The sub-floor structure is constructed using laminated LVL timber which is stronger & straighter than other timber and allows for larger spans in one piece.

Bearers – 140×45 SG8 H3.2 treated radiata pine
Floor Joists – 200×45 LVL11 H1.2 treated laminated veneer lumber (LVL)
Flooring – 25mm thick Metrapanel or 19mm orientated Strand Board

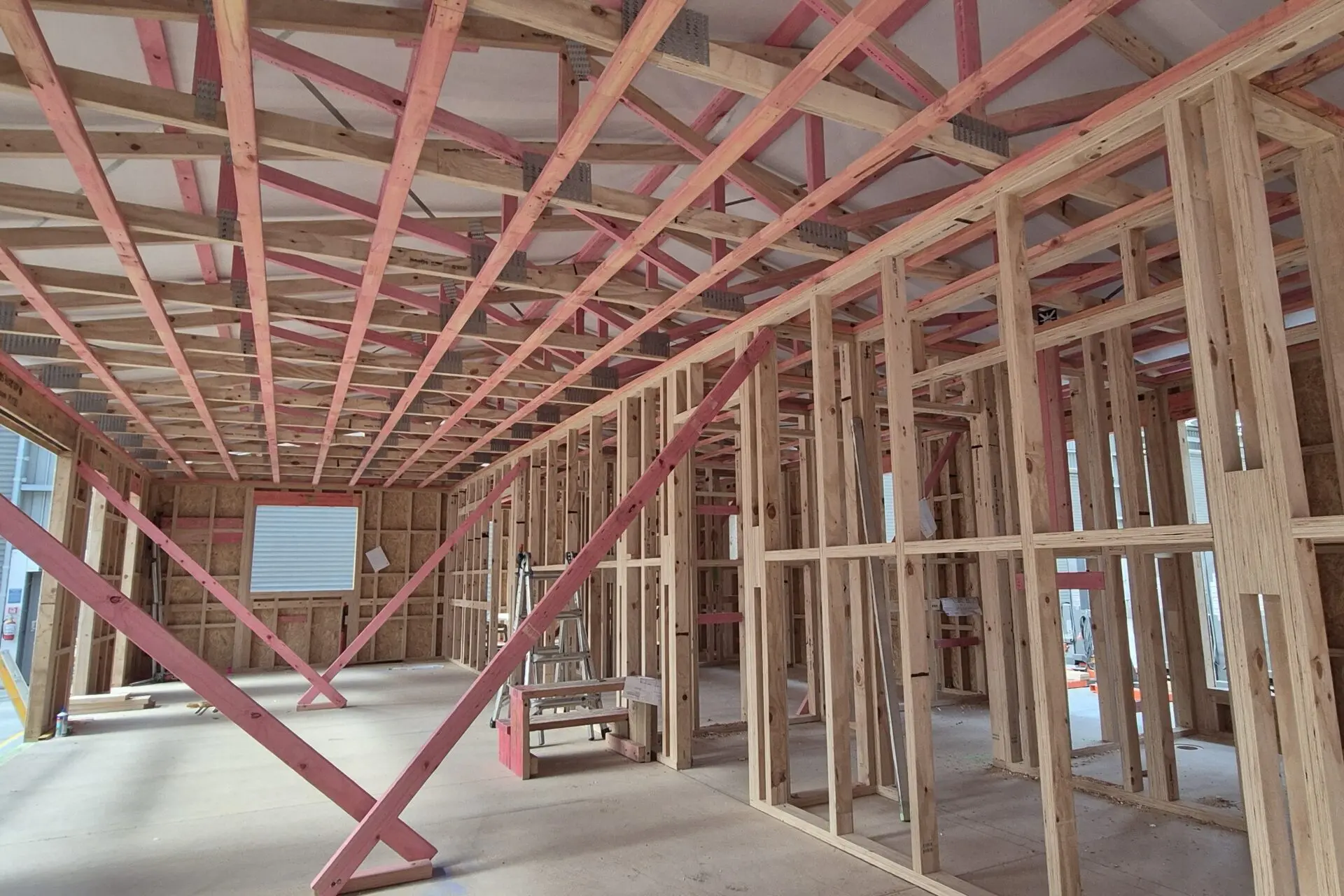

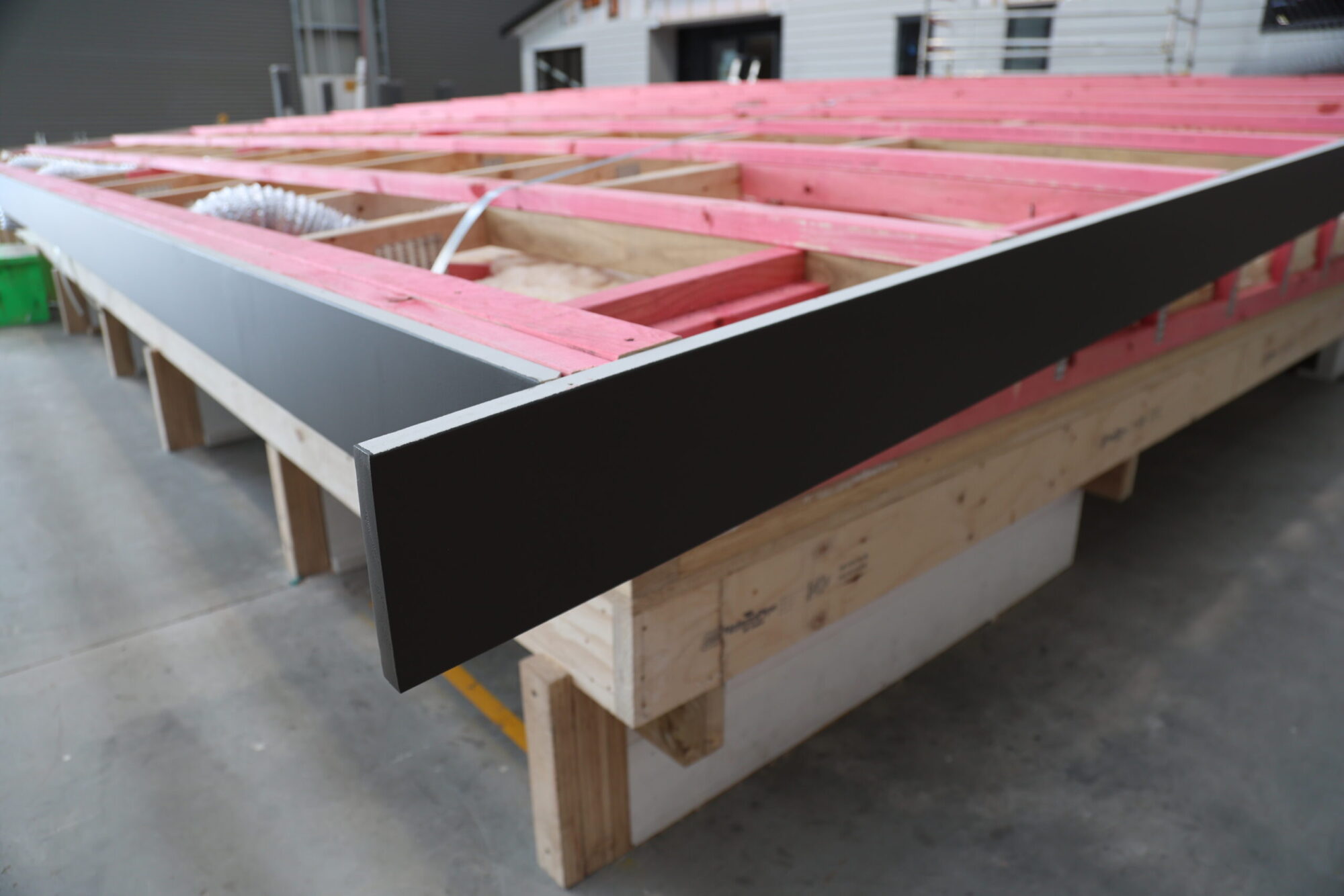

Frame & Truss

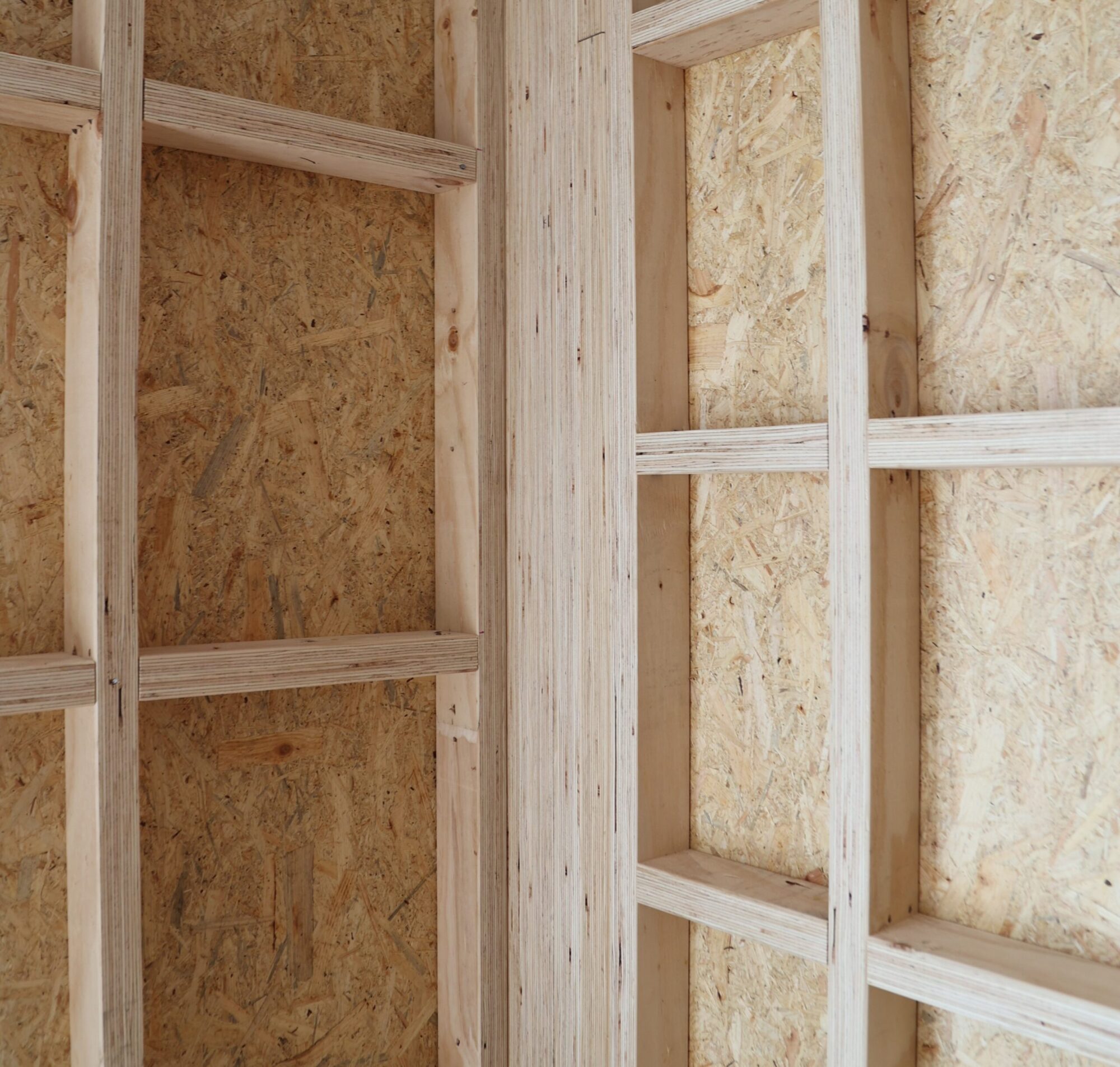

The frames & trusses are made using laminated LVL timber for greater straightness & structural strength.

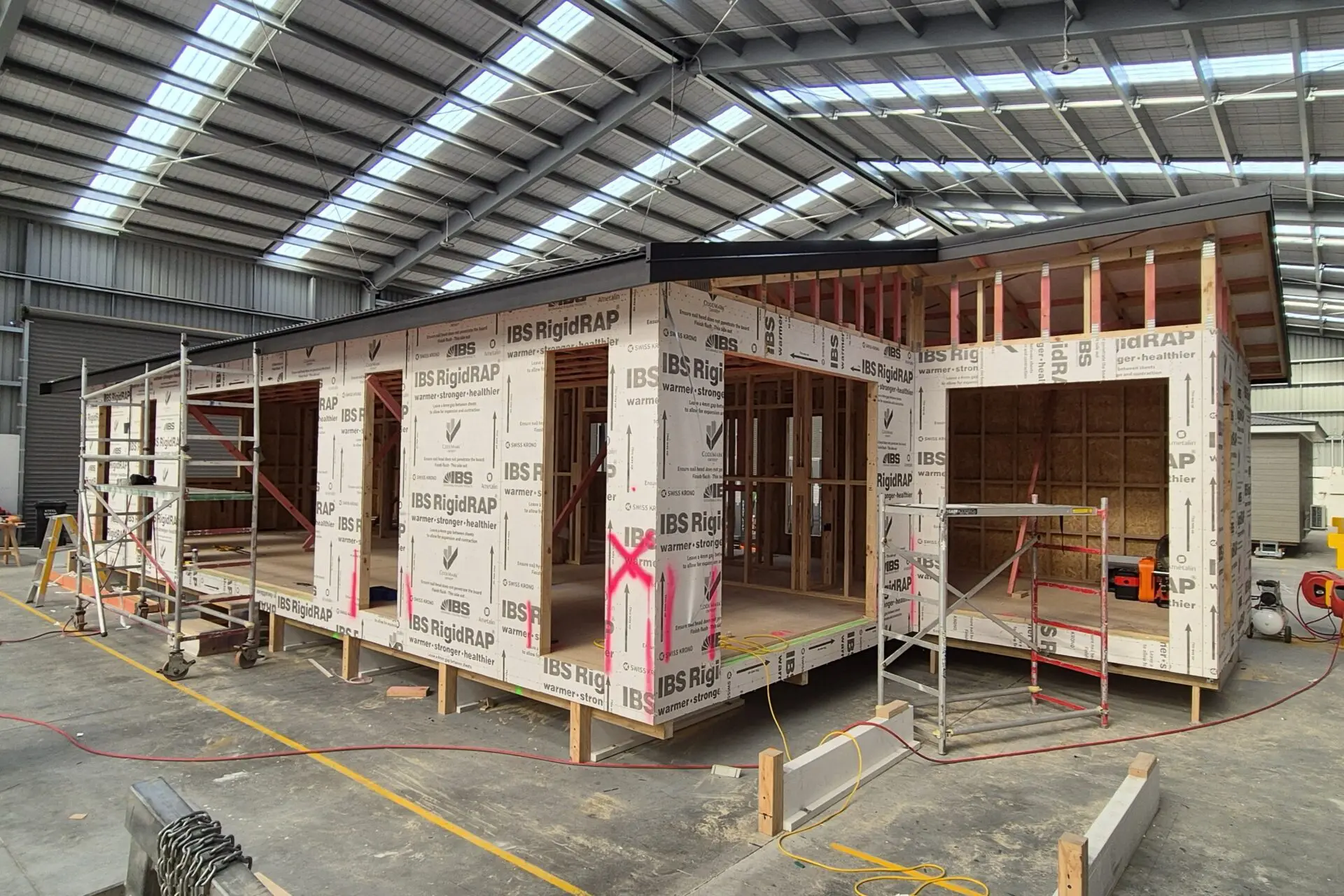

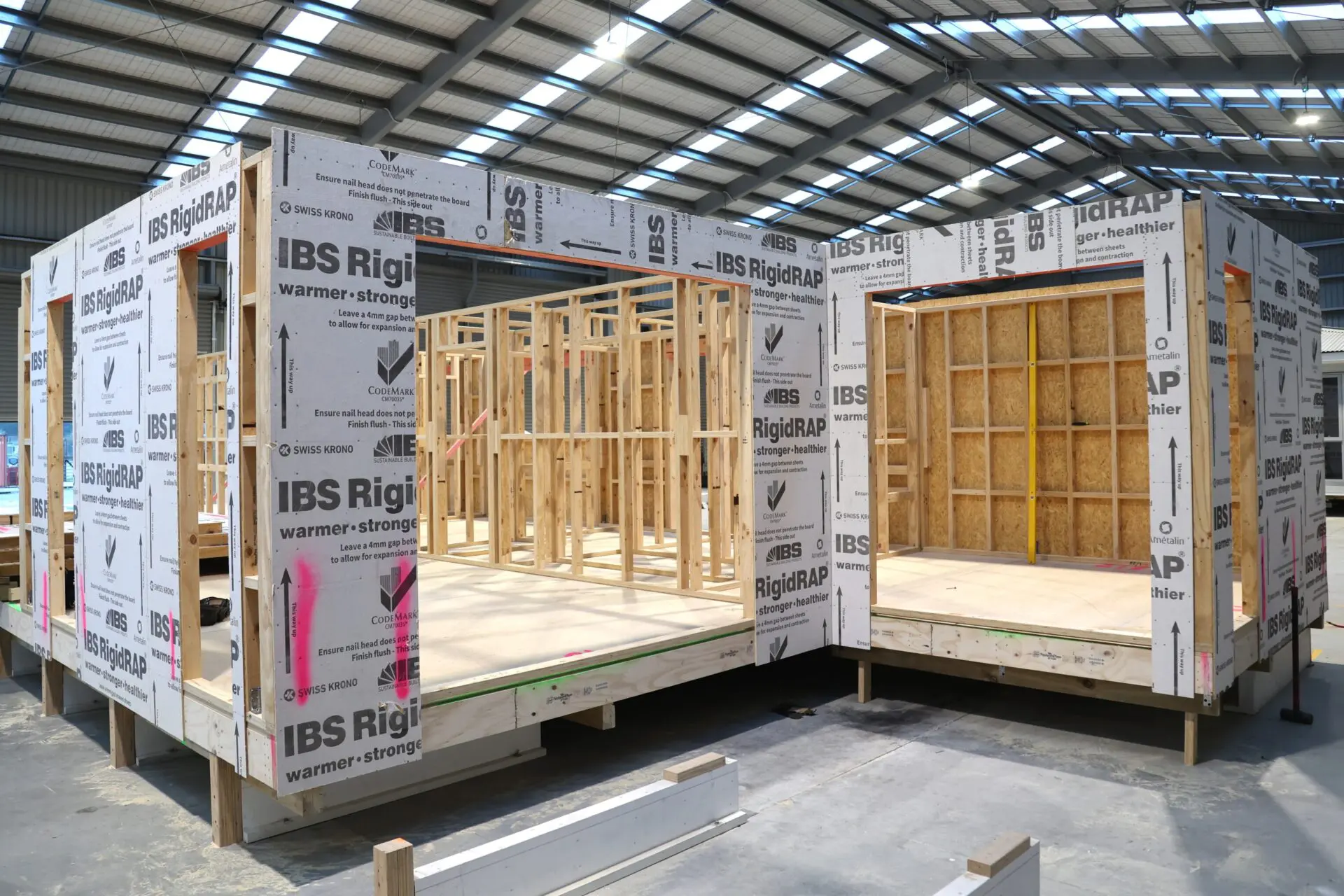

Wall Frames – 90×45 LVL8 H1.2 laminated veneer lumber (LVL) with RigidRAB board fitted for bracing & extra insulation
Roof Trusses – Engineered for site specific zoning

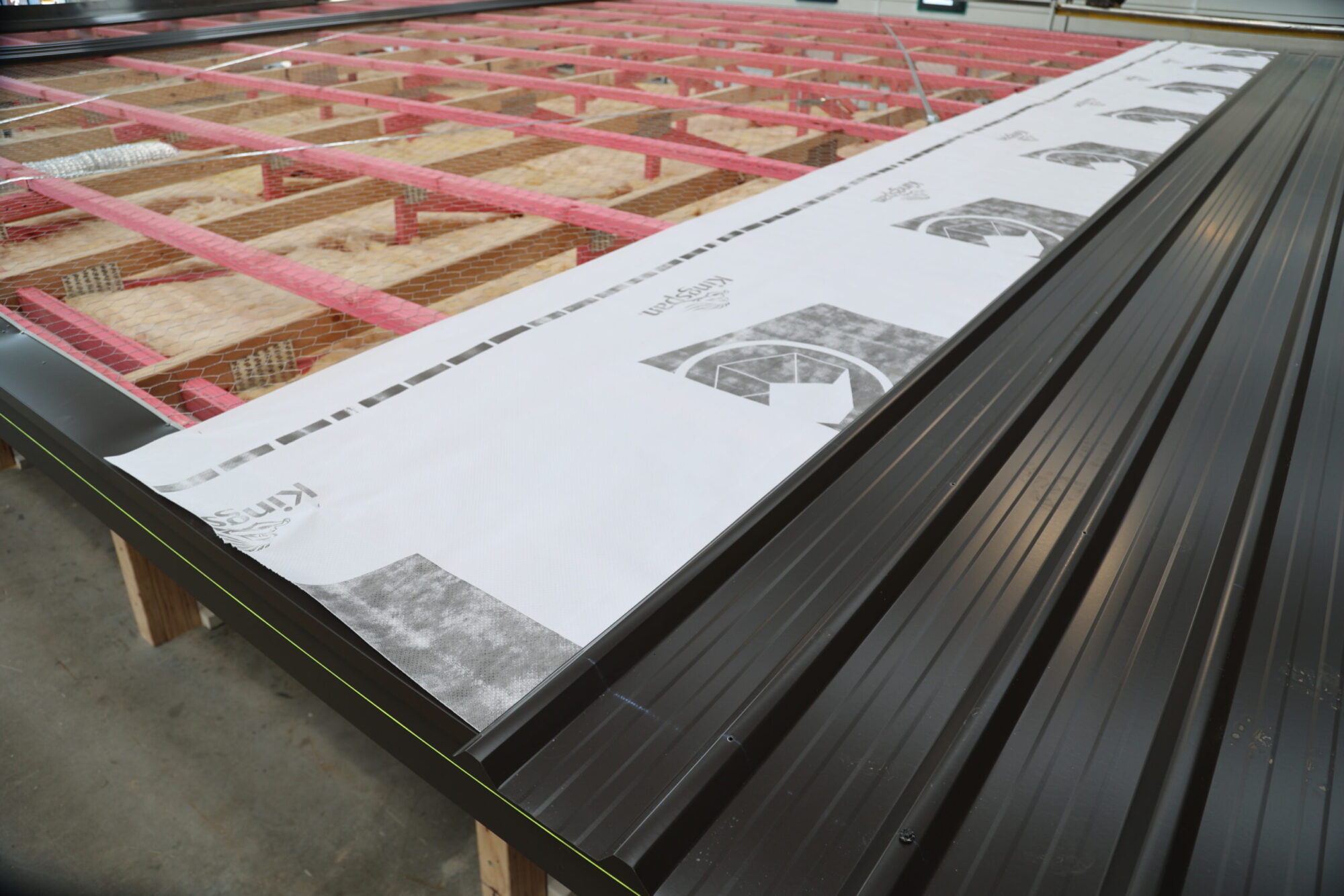

Roofing

High quality roofing materials are used on all our homes.

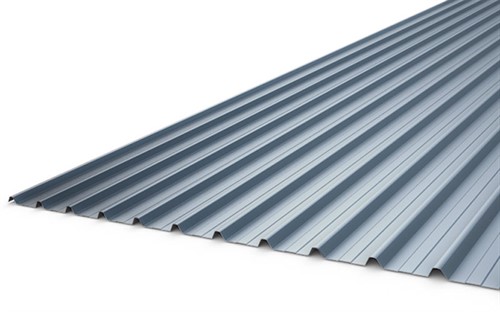

Roofing & Flashings – Colorsteel MAXAM, available in two different profiles (5 Rib for Hip, Gable & Mono / Corrugated for Hip & Gable only) & in 5 standard colours (Flaxpod / Ebony / Ironsand / Grey Friars / Sandstone Grey)
Roofing Underlay – Thermakraft Covertek 215 self supporting synthetic roof underlay
Timber Fascia – 200×40 FJ H3.2 radiata pre-primed, painted to match roof

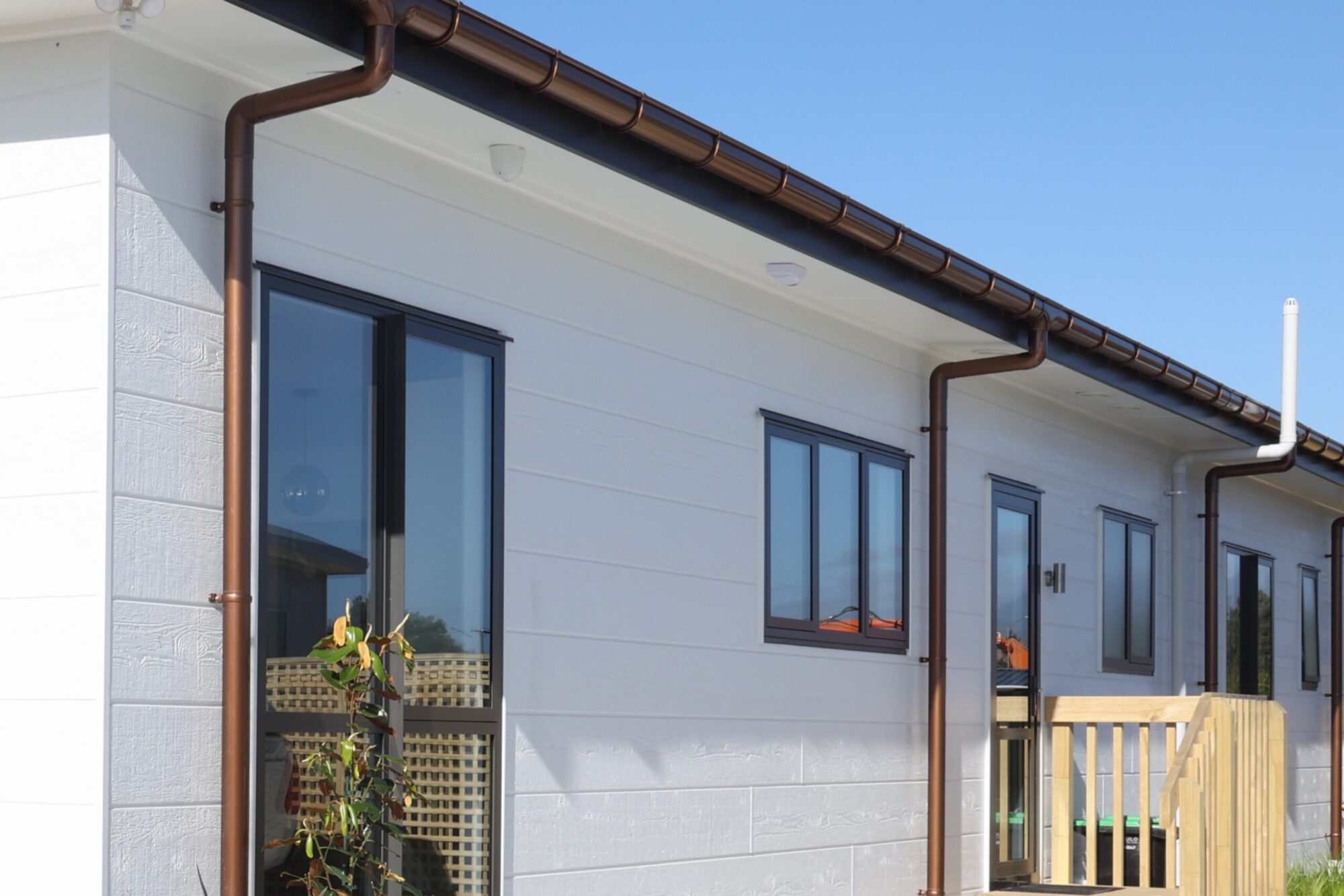

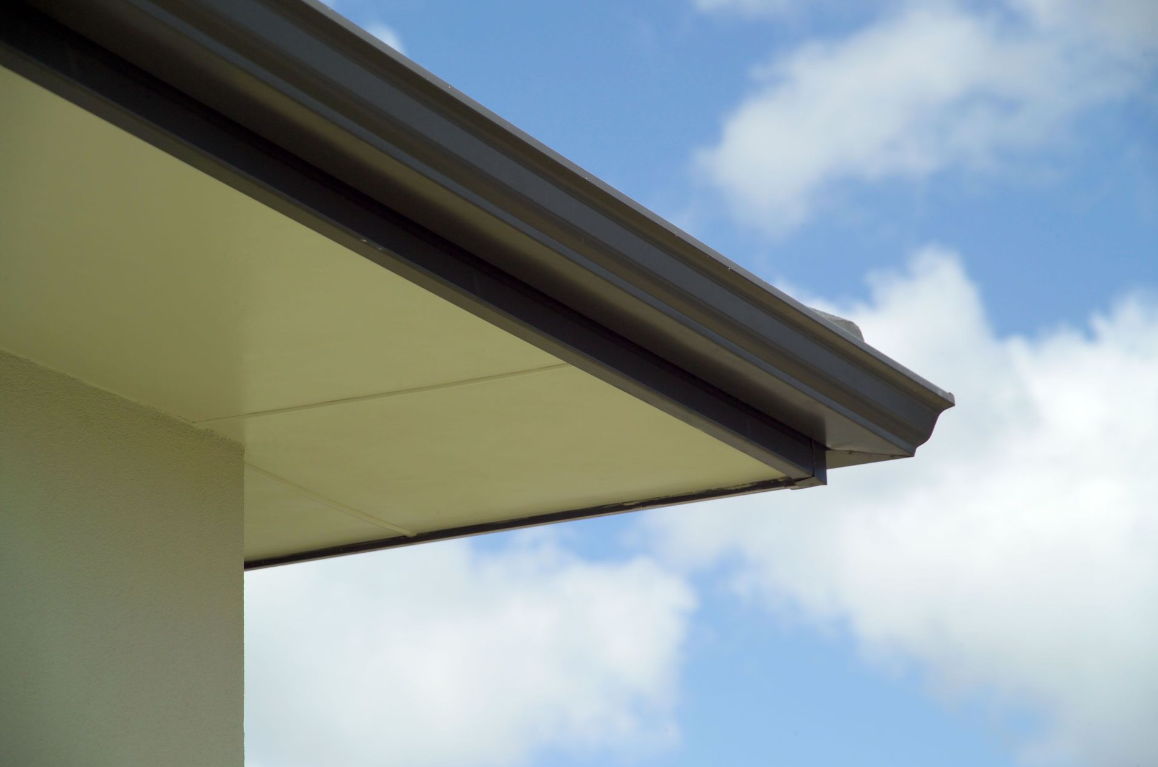

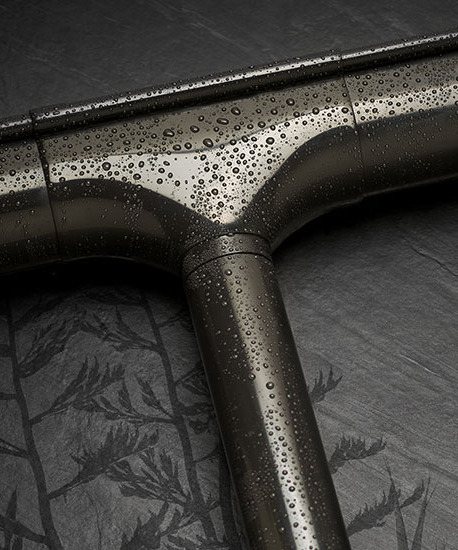

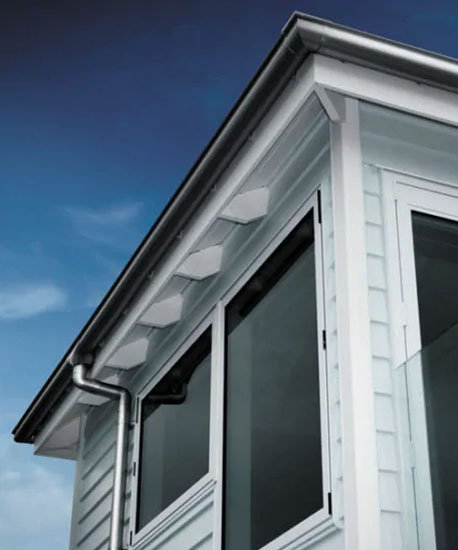

Spouting – Marley Stormcloud with internal brackets 40-120 rainfall range available in 5 standard colours (White / Black / Grey Friars / Ironsand / Flax Black)

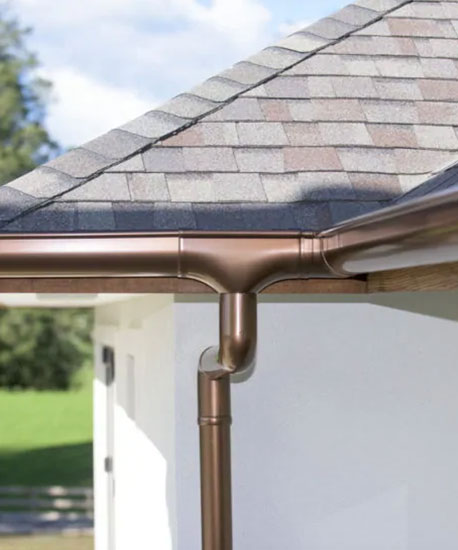

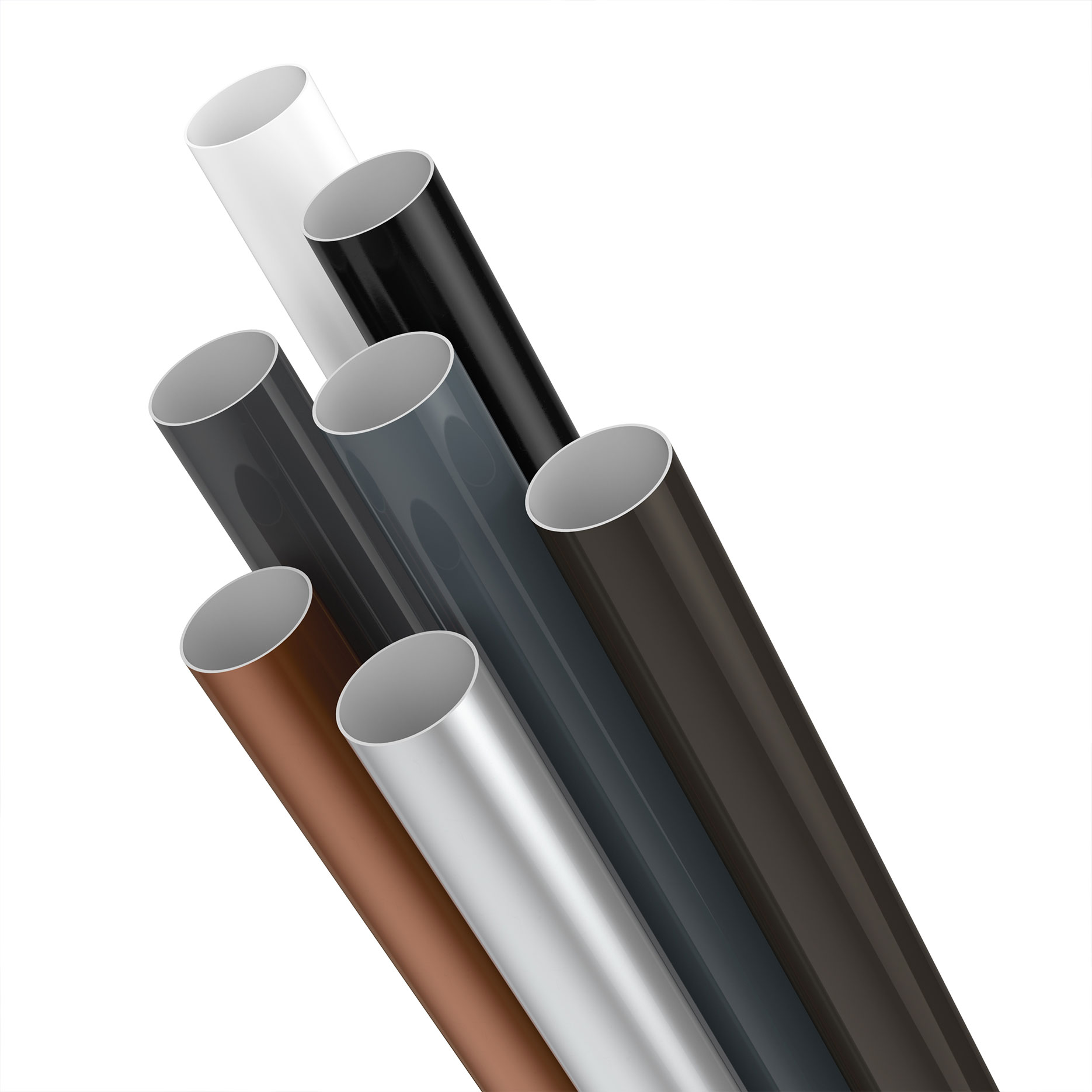

Downpipes – Marley 80mm diameter PVC available in 7 standard colours (White / Black / Grey Friars / Ironsand / Flax Black / Copper Metallic / Titanium Metallic)
Eaves – 200mm eaves to all sides consisting of painted 4.5mm KalsiFlex cement soffit lining

Exterior Finishing

We use quality cladding systems & products to ensure your home is warm, dry & durable.

Air Barrier System – 8mm RigidRAP rigid air barrie r system is used for air/moisture tightness & structural bracing
Cavity System – 20mm FJ H3.2 timber with drain slots, closed with bottom vent

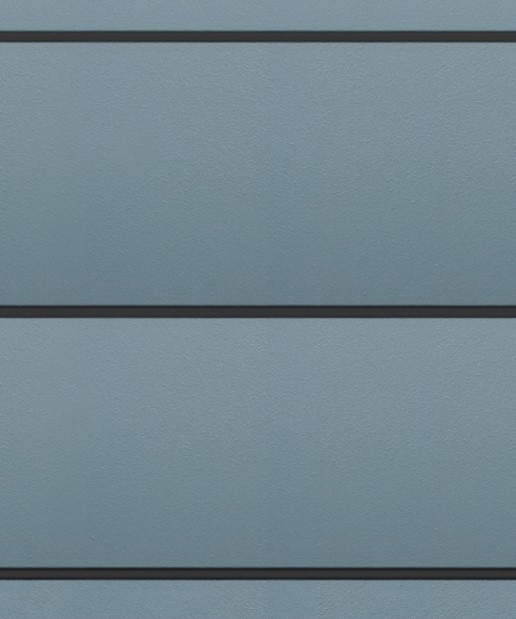

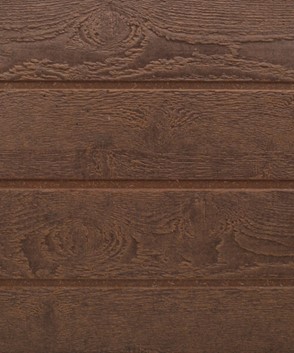

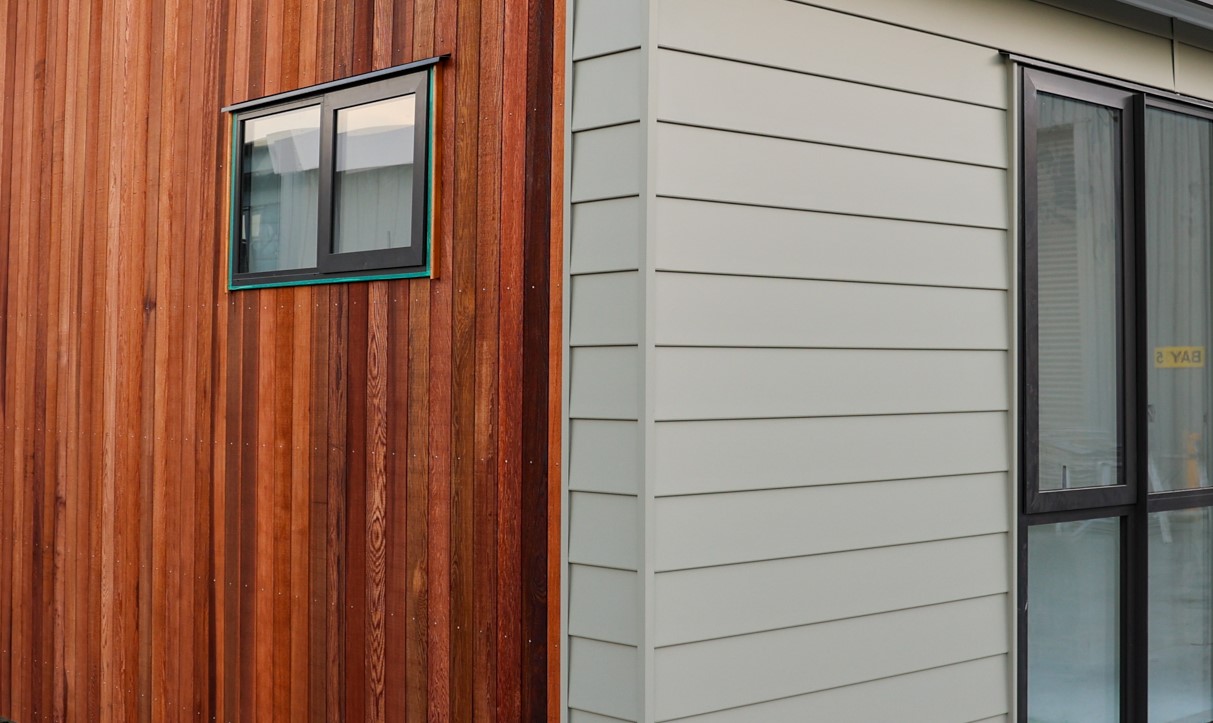

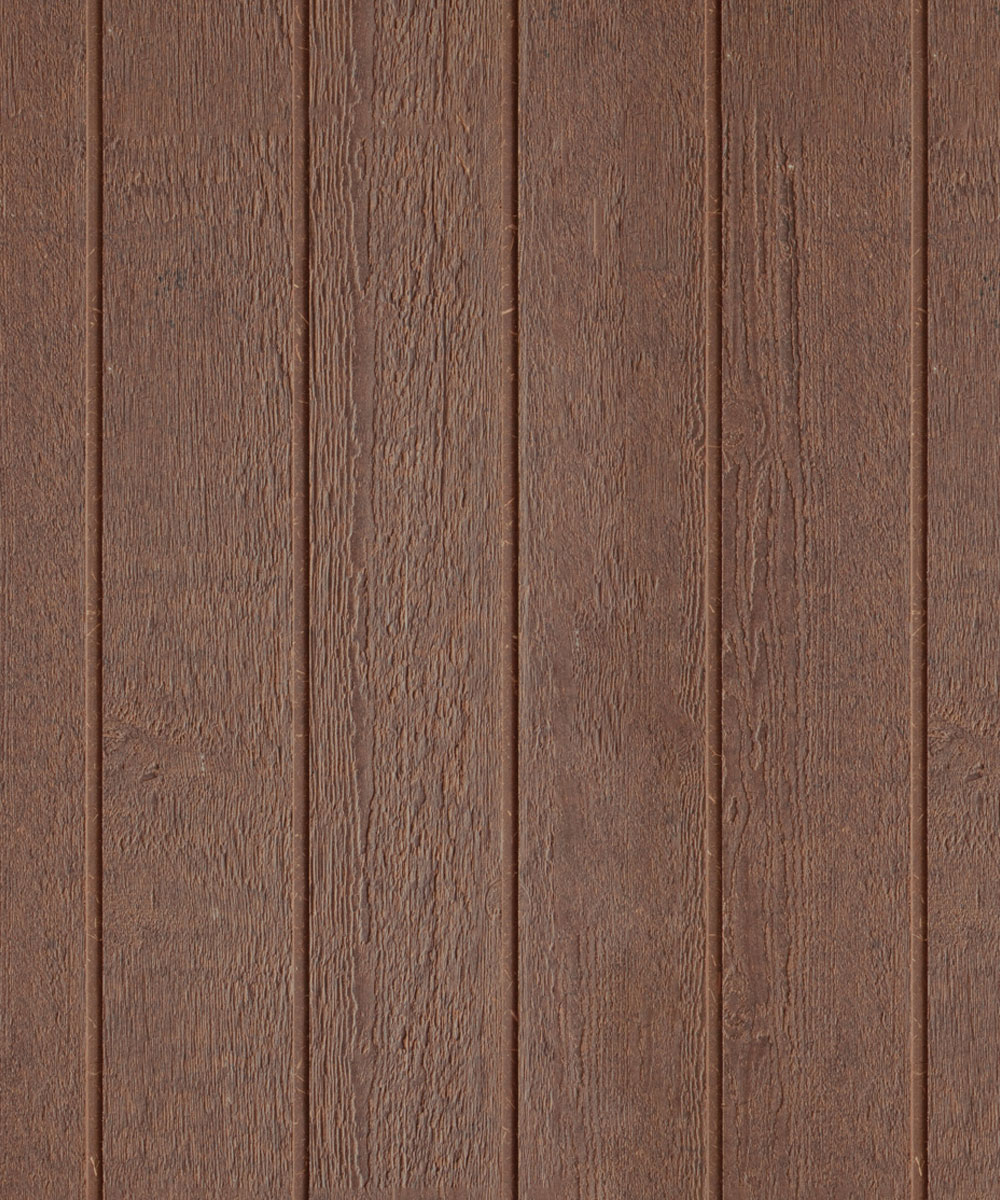

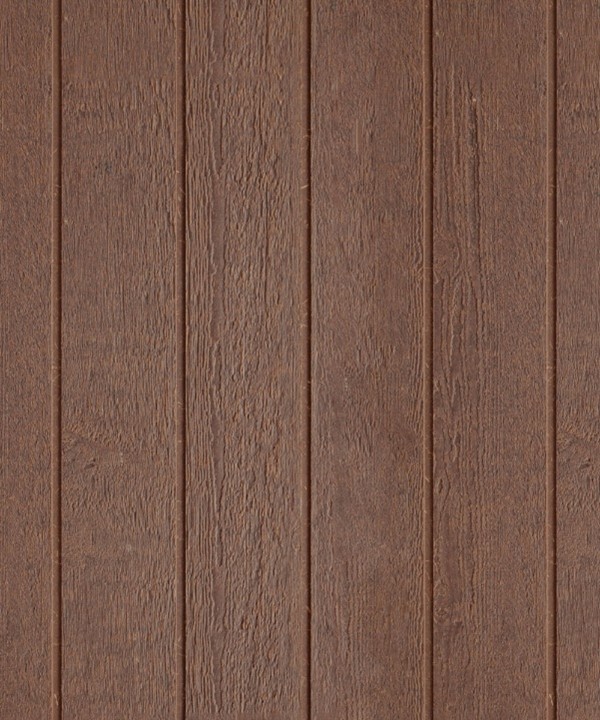

Cladding – Weathertex Primelock weatherboard, Selflock ecogroove & Weathergroove woodsman options
Exterior Paint – Dulux paint system is used

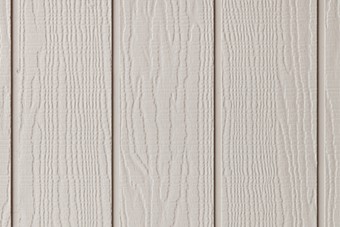

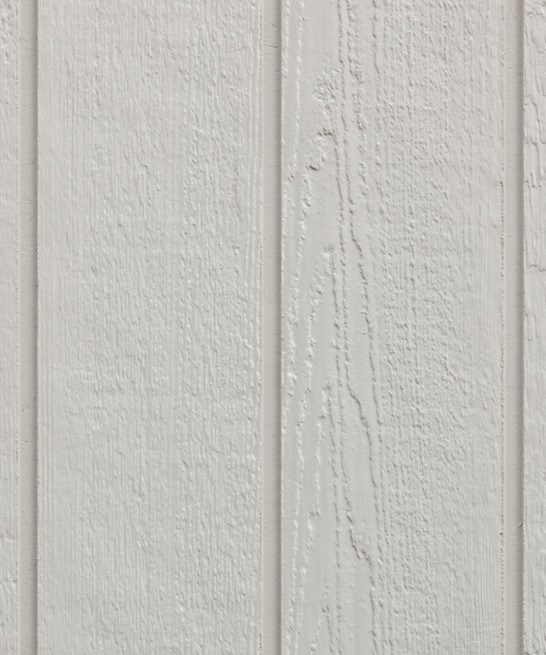

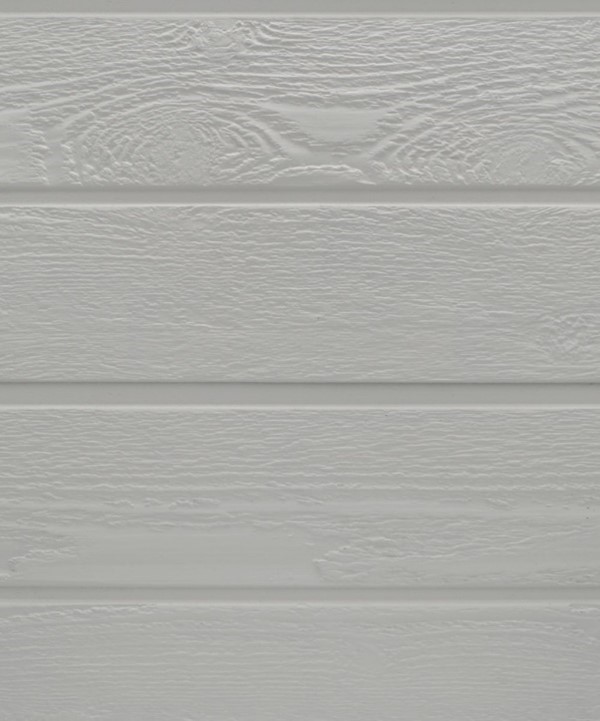

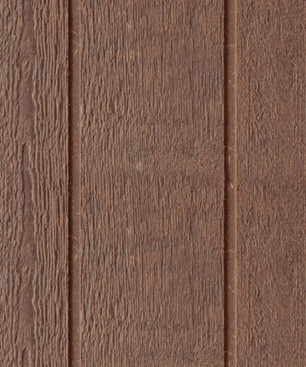

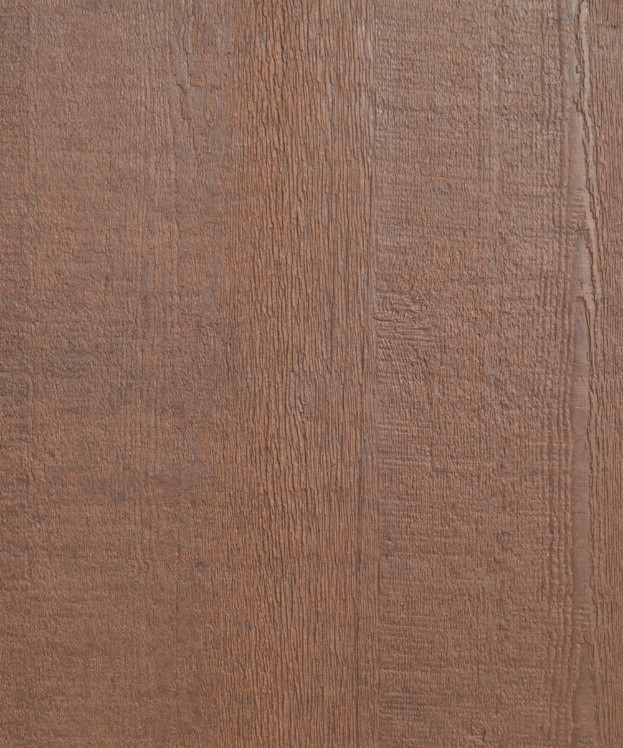

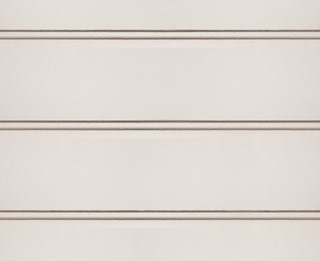

Selflok Ecogroove Woodsman 150mm Weather Board

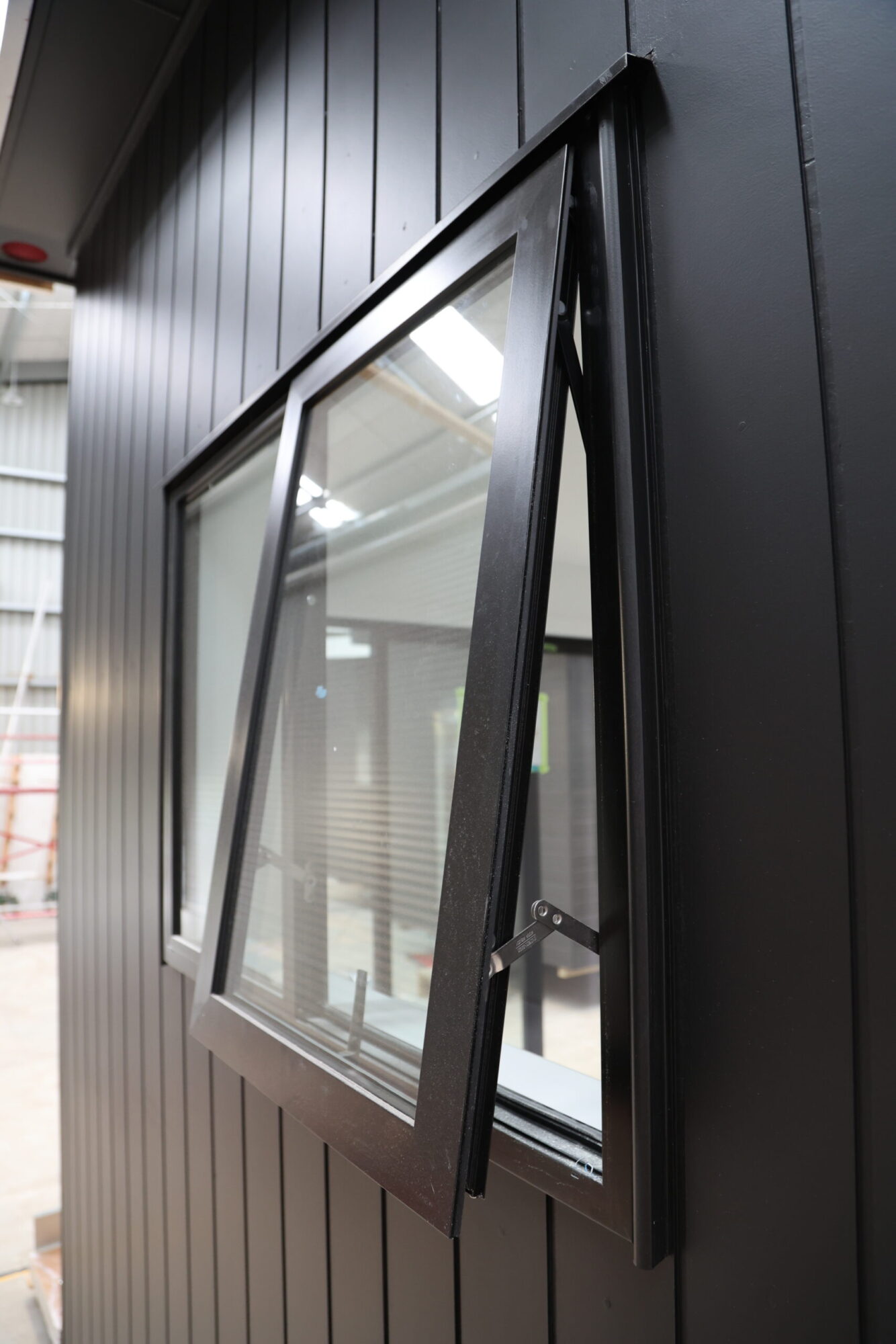

Aluminium Door & Window Joinery

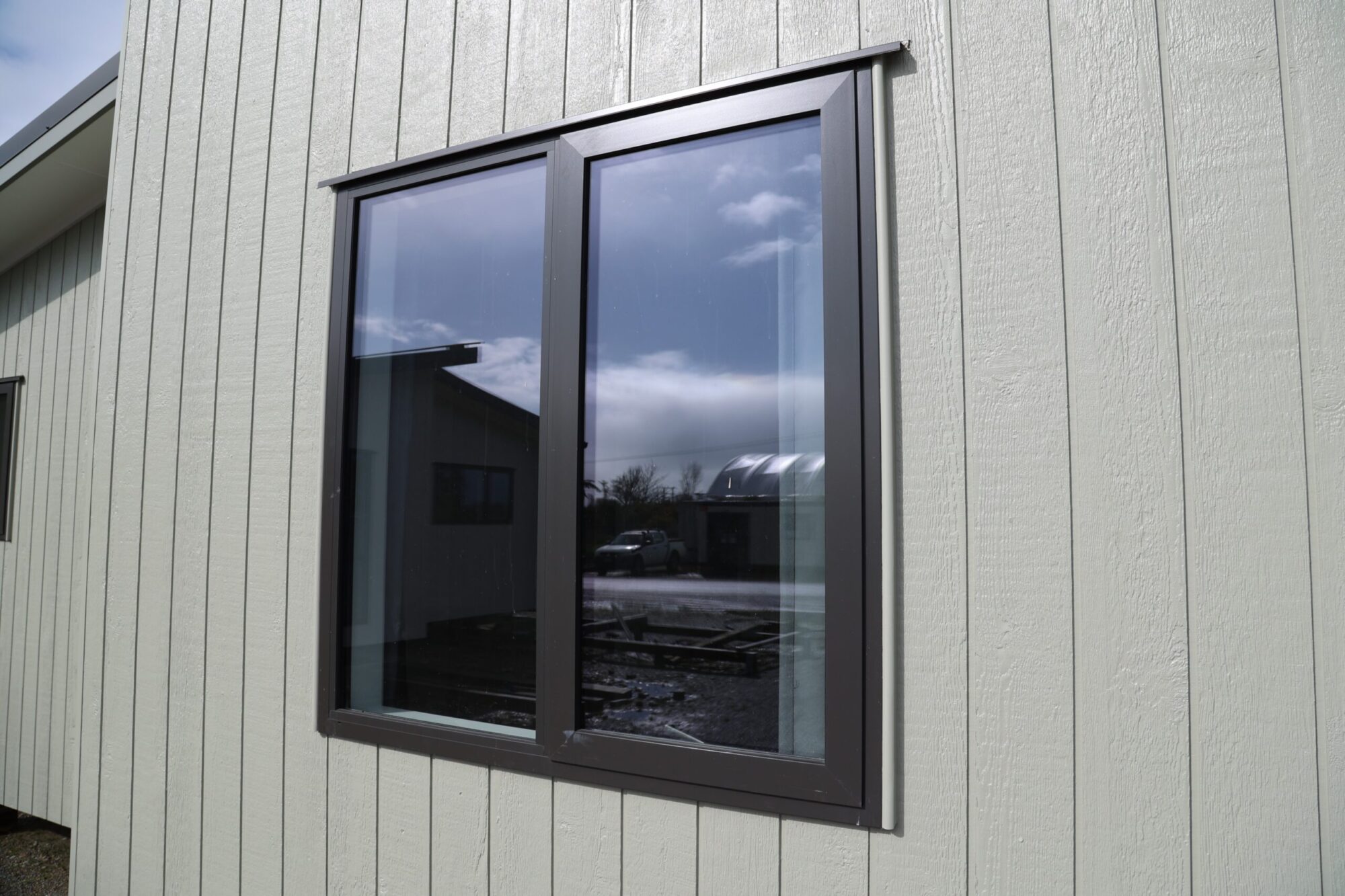

High quality aluminum joinery & hardware is used for all external doors & windows.

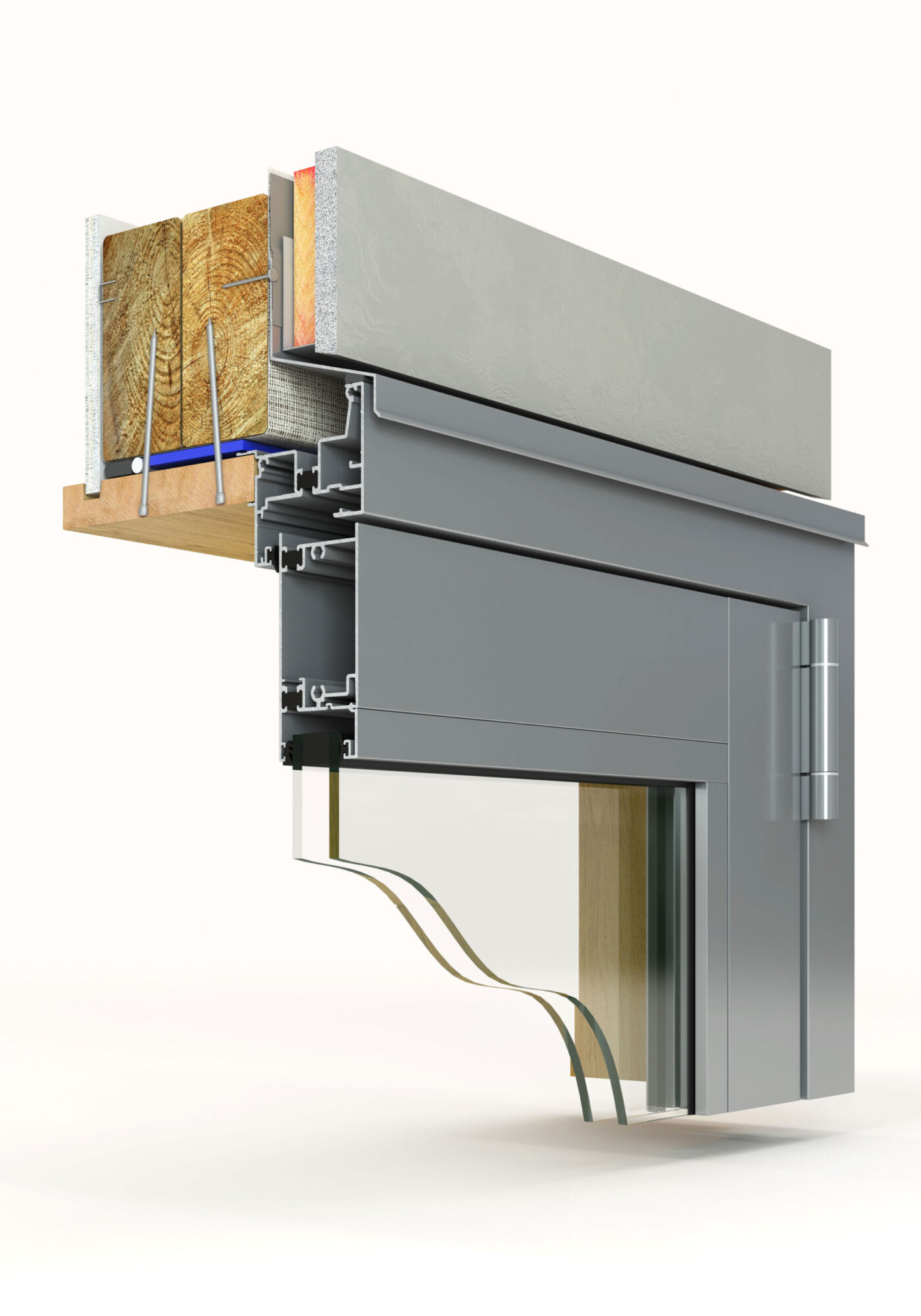

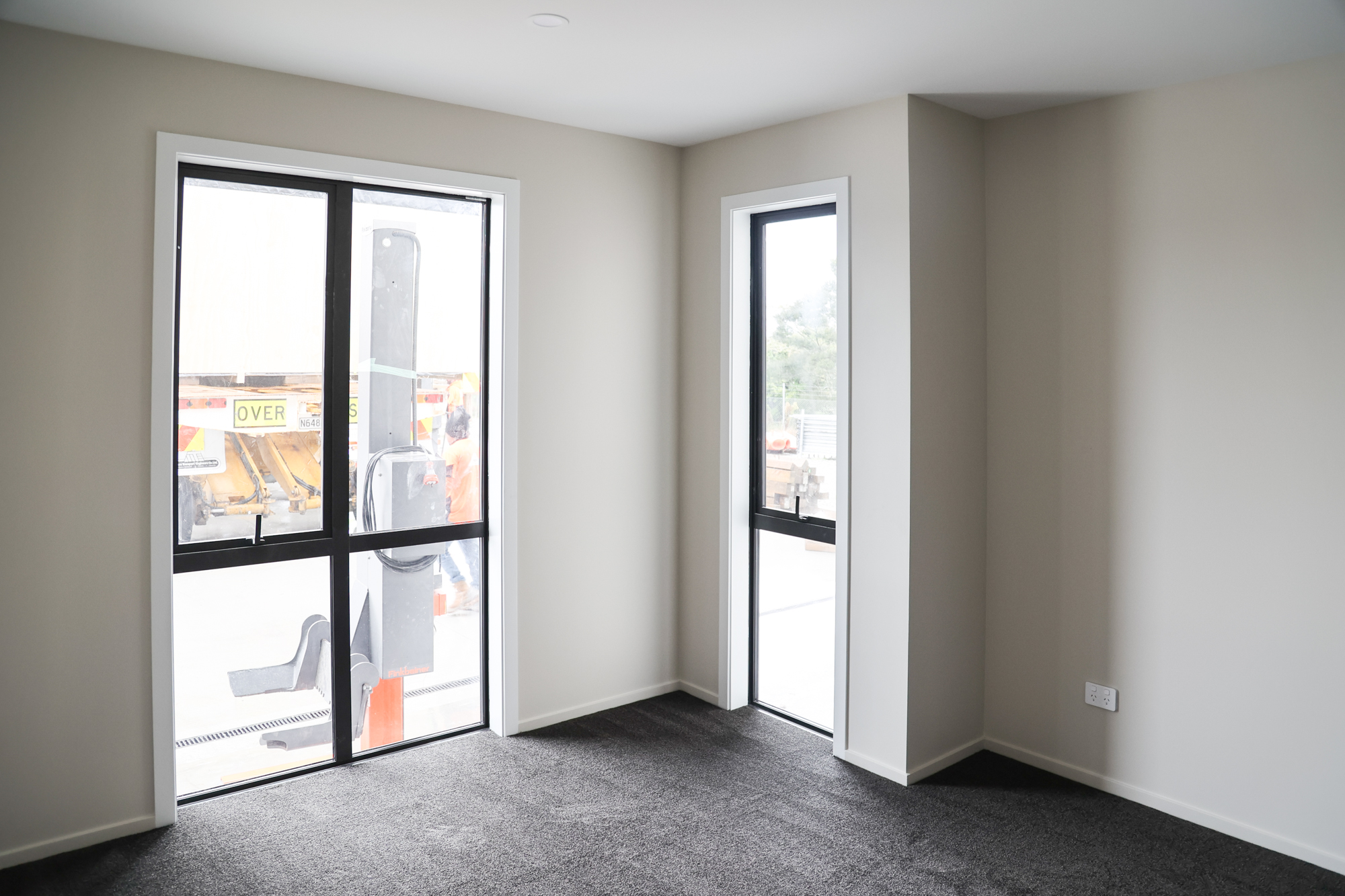

Joinery – Fairview Aeonox thermally broken powder coated joinery with vision rails, locking sliding doors, rated upto very high wind zone, available in 11 standard colours

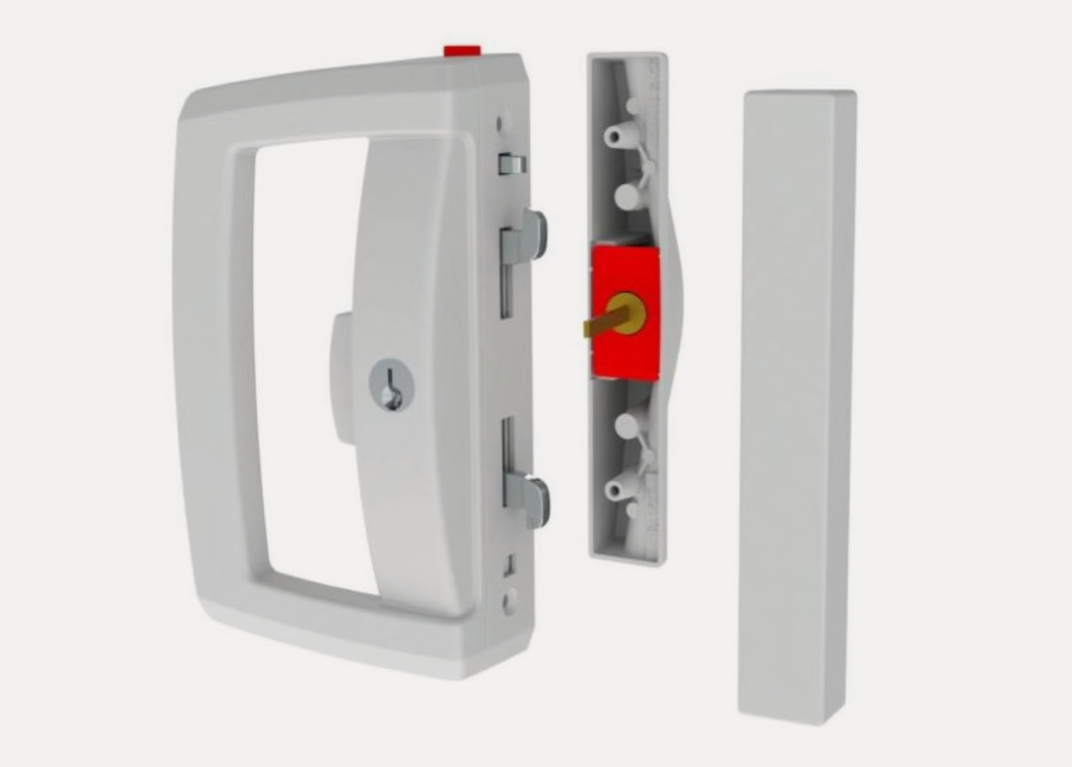

Sliding Hardware – Kanso locking sliding door D pull handle 300mm. Slider set colour matched to joinery
Laundry Door – 860mm aluminum with two panel clear glazing, vision rail and Kanso 4-point lock set
Windows Glazing – Fairview TL40 architectural thermal suite with solace low E, argon gas filled, double glazing

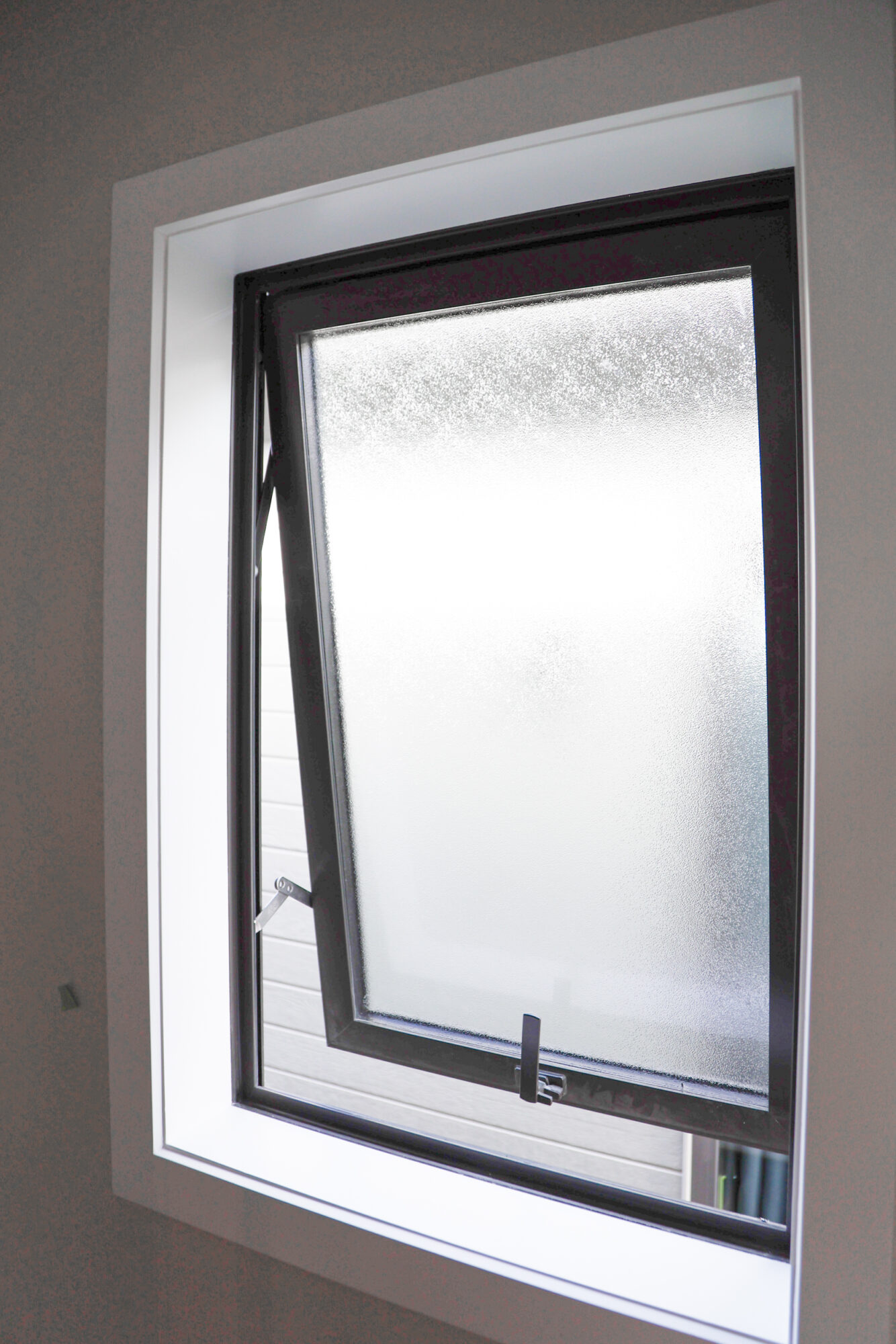

Obscure glazing – Etchlite obscure glass to bathrooms (option of laundry door)

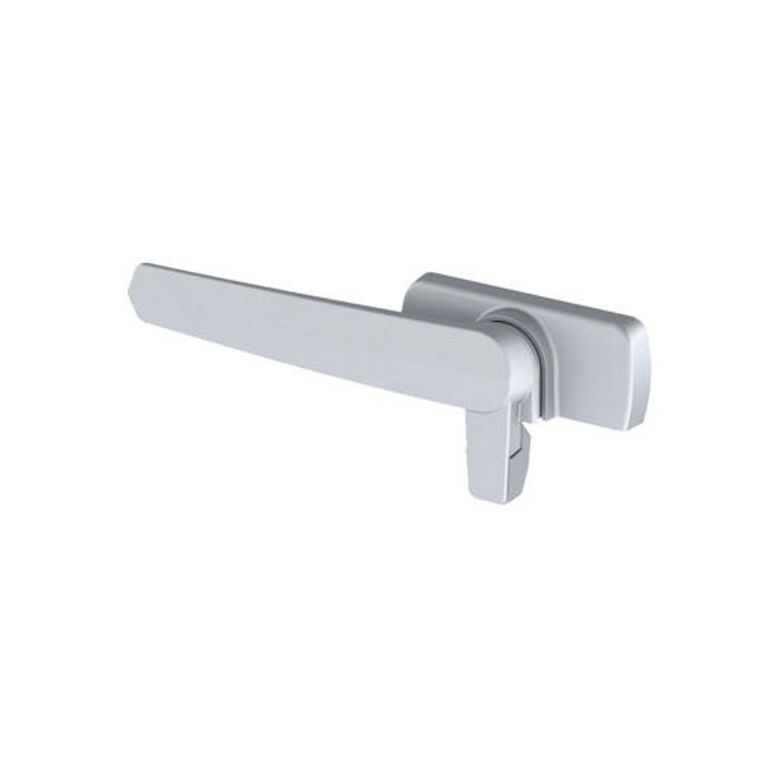

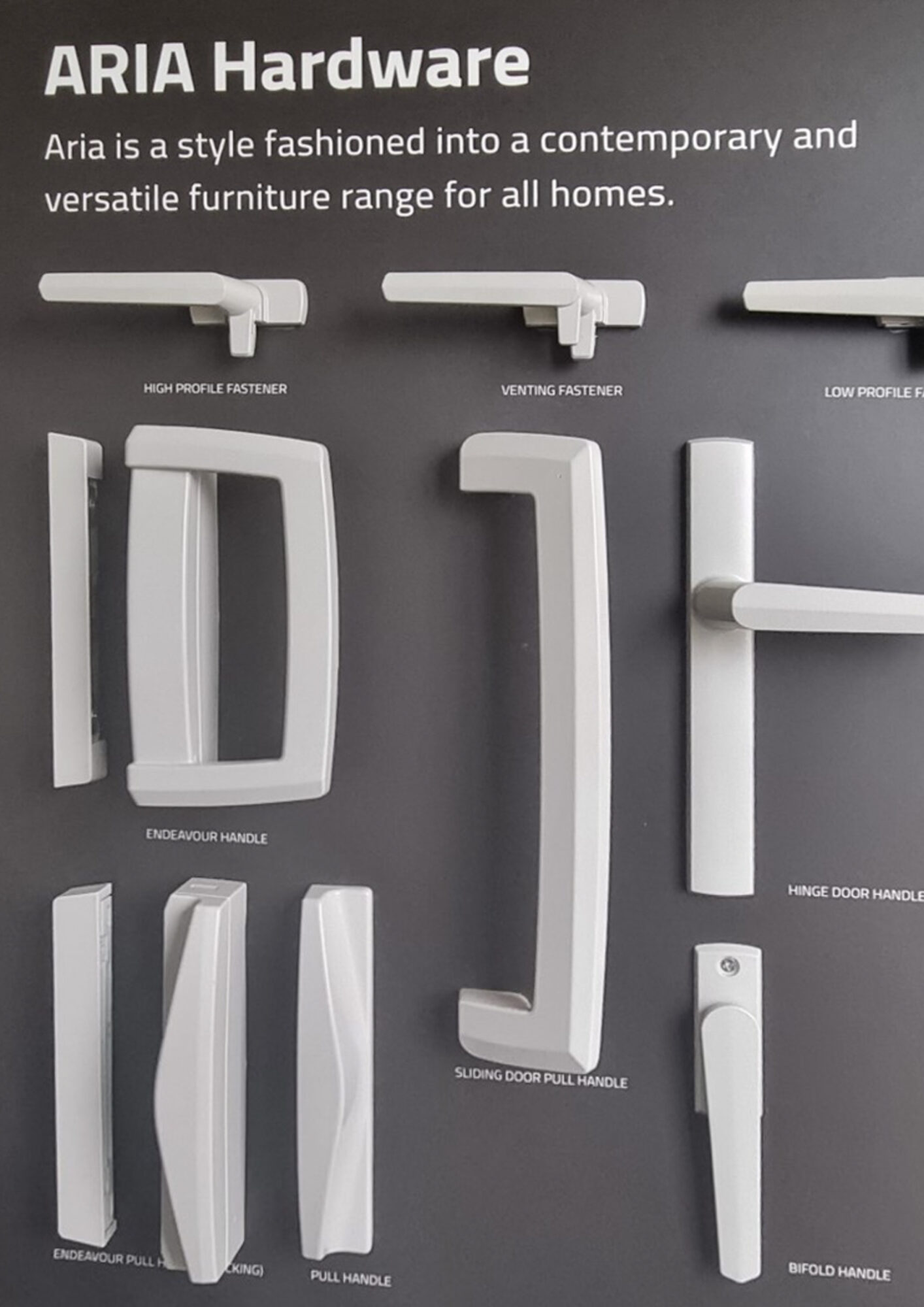

Window Hardware – Colour matched Kanso hardware, 300mm offset pull handles to sliders, venting latches to opening sashes, 4 point lock to doors, safety stays to all opening sashes. All outward opening doors come with a colour matched hold back
Flashings – All head and sill flashings (where required) colour matched to joinery
Sills – All jamb, head, and sill liners (where required) are 19mm H3.1 treated radiata for paint quality finish
Scribers – 30x20mm FJ H3.1 RAD scribers painted to match cladding on Weatherboard and joinery on Weathergroove Natural

Plumbing

All internal plumbing is completed within the building envelope ready for connections onsite.

Plumbing in place for dishwasher & washing machine
All water pipes are butelene
All waste pipes are white PVC

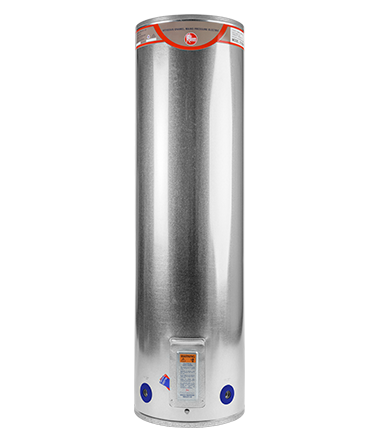

180L Rheem Hot water cylinder

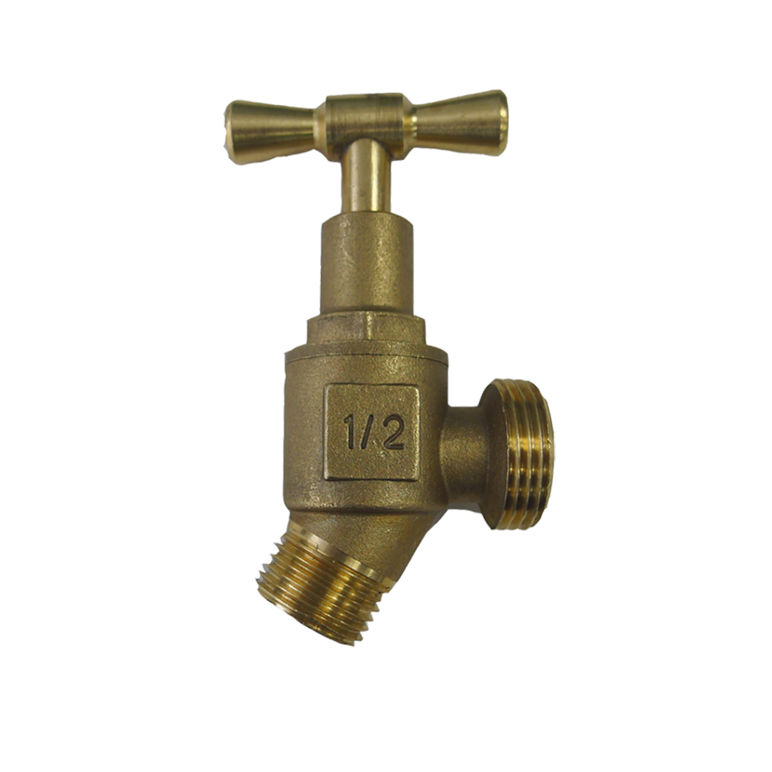

2x exterior brass hose taps
All pipework is pressure tested to ensure no leaks

Electrical

All electrical work is completed within the building envelope ready for connection to site services by the electrical service provider.

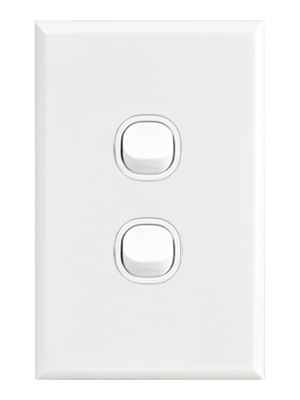

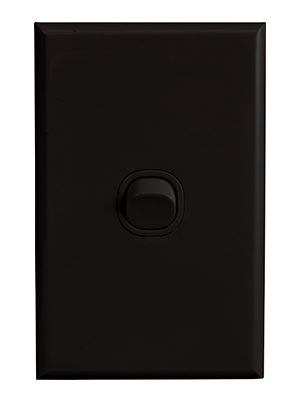

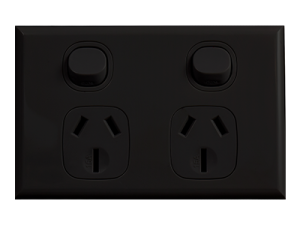

Face Plates – Vynco Home face plates for all light switches and points, available in White or Black
Downlights – Recessed LED warm light, standard allowance as per plans
Power Points Single – Standard allowance = 1x for fridge, microwave, rangehood & dishwasher
Power Points Double – Standard allowance = 4x kitchen, 3x living, 2x bedrooms, 1x dining, hallway, bathroom, laundry
Light Switches – 2 way switching on 3 sets of lights

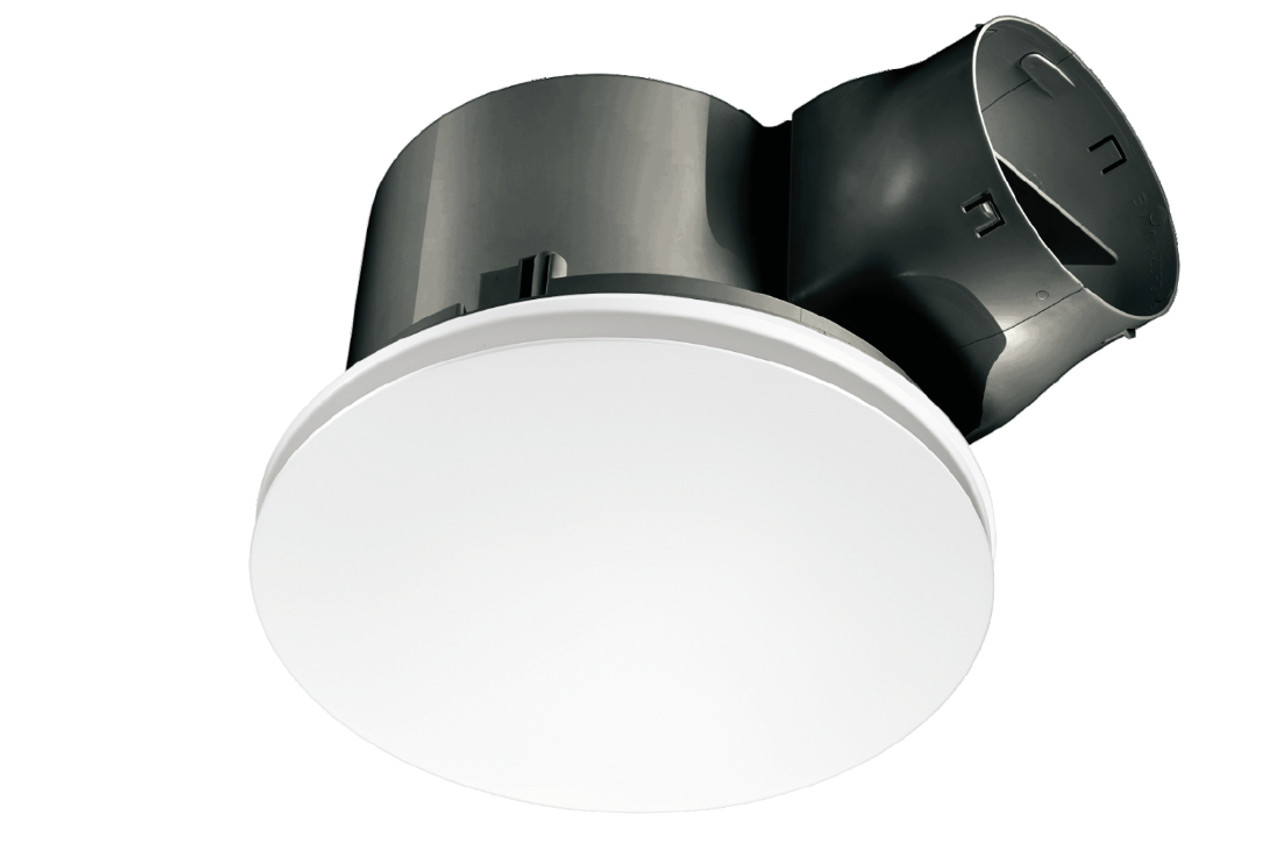

Extractor Fan – Manrose Contour LED integrated 150mm Inline fan vented to eaves in bathroom, ensuite and laundry, centered in the room.

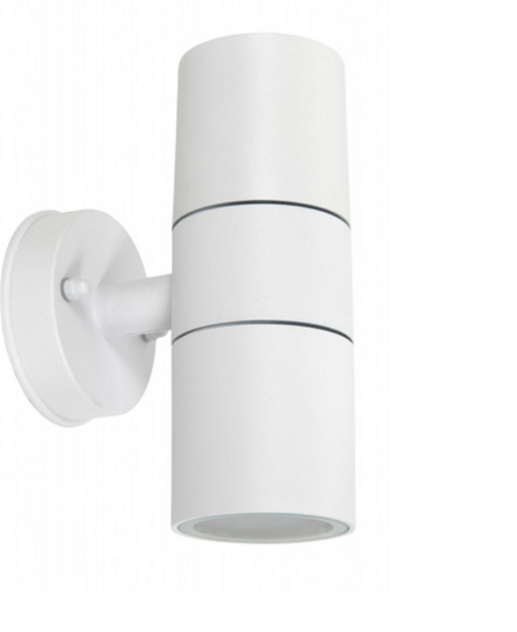

Exterior lights – Wall mounted IP65 Liro 2L up/down LED light by each exterior door available in White or Black

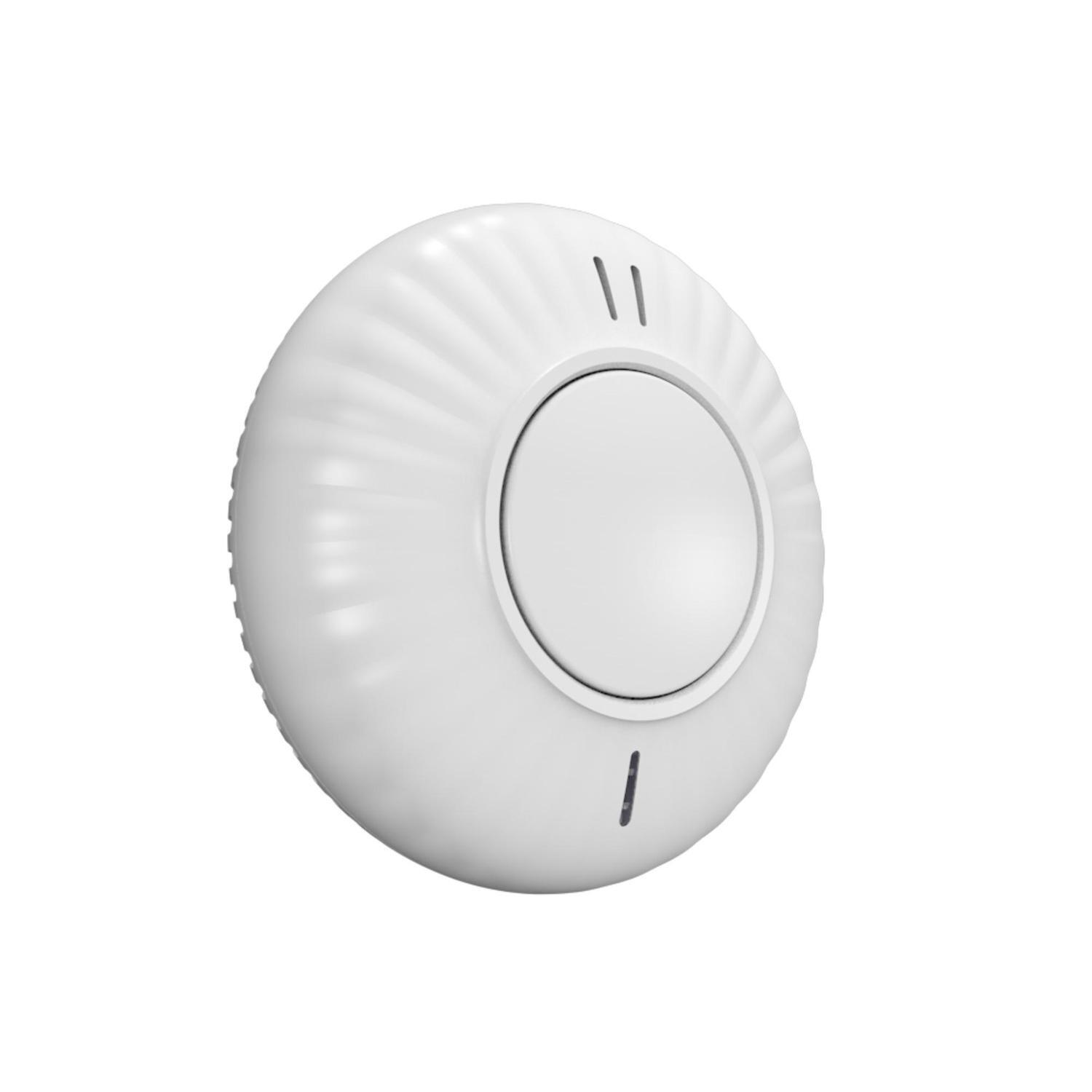

Smoke Detectors – Cavius 10-year blue tooth interconnected photoelectric smoke detectors as per new code standards located in all bedrooms, living & kitchen
Heat Pump – 1x heat pump unit, the KW size is dependent on the home size

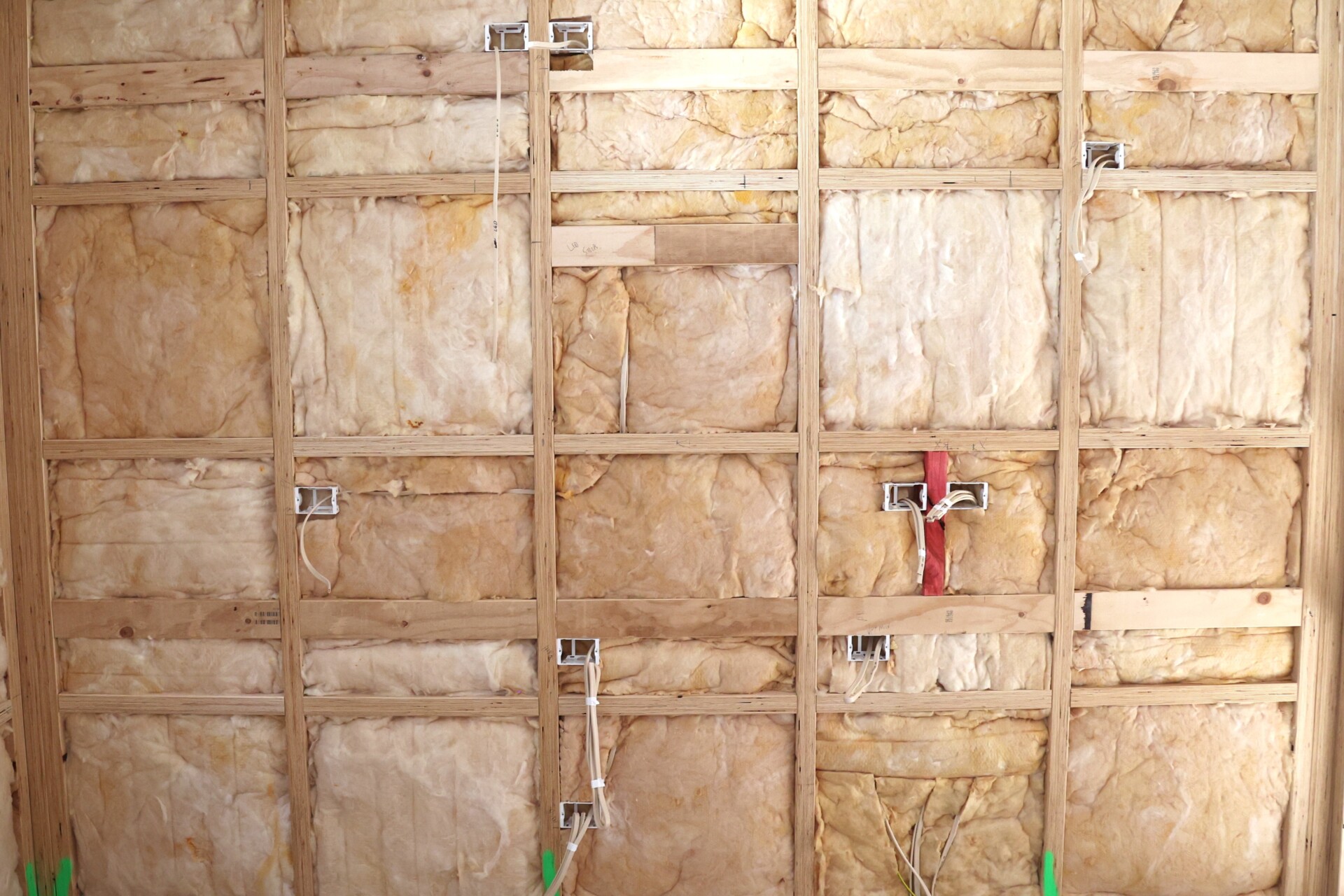

Insulation

High quality insulation products are used in all our homes & exceed the building code requirements.

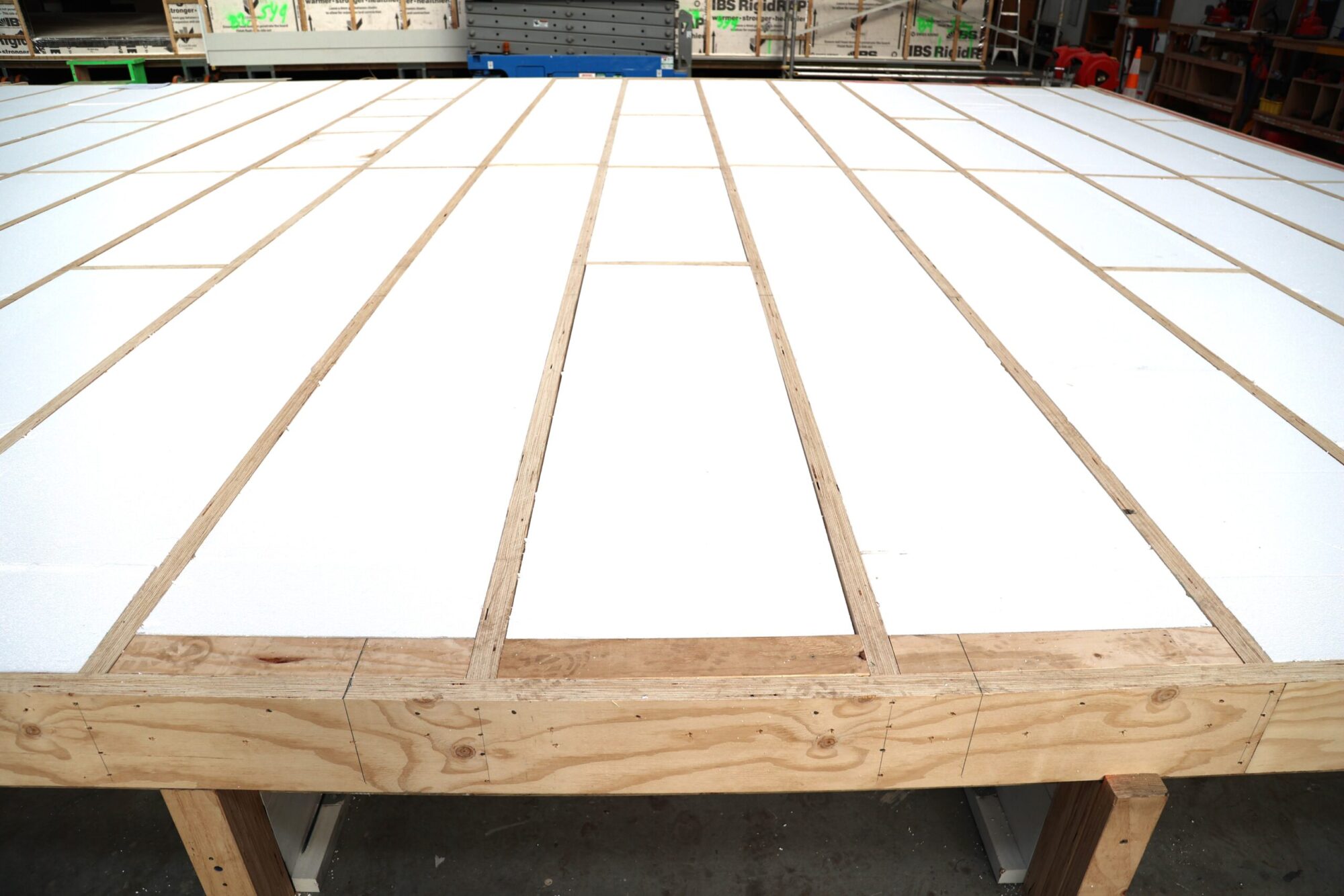

Underfloor Insulation – R2.8 Expol H-grade white expanded polystyrene

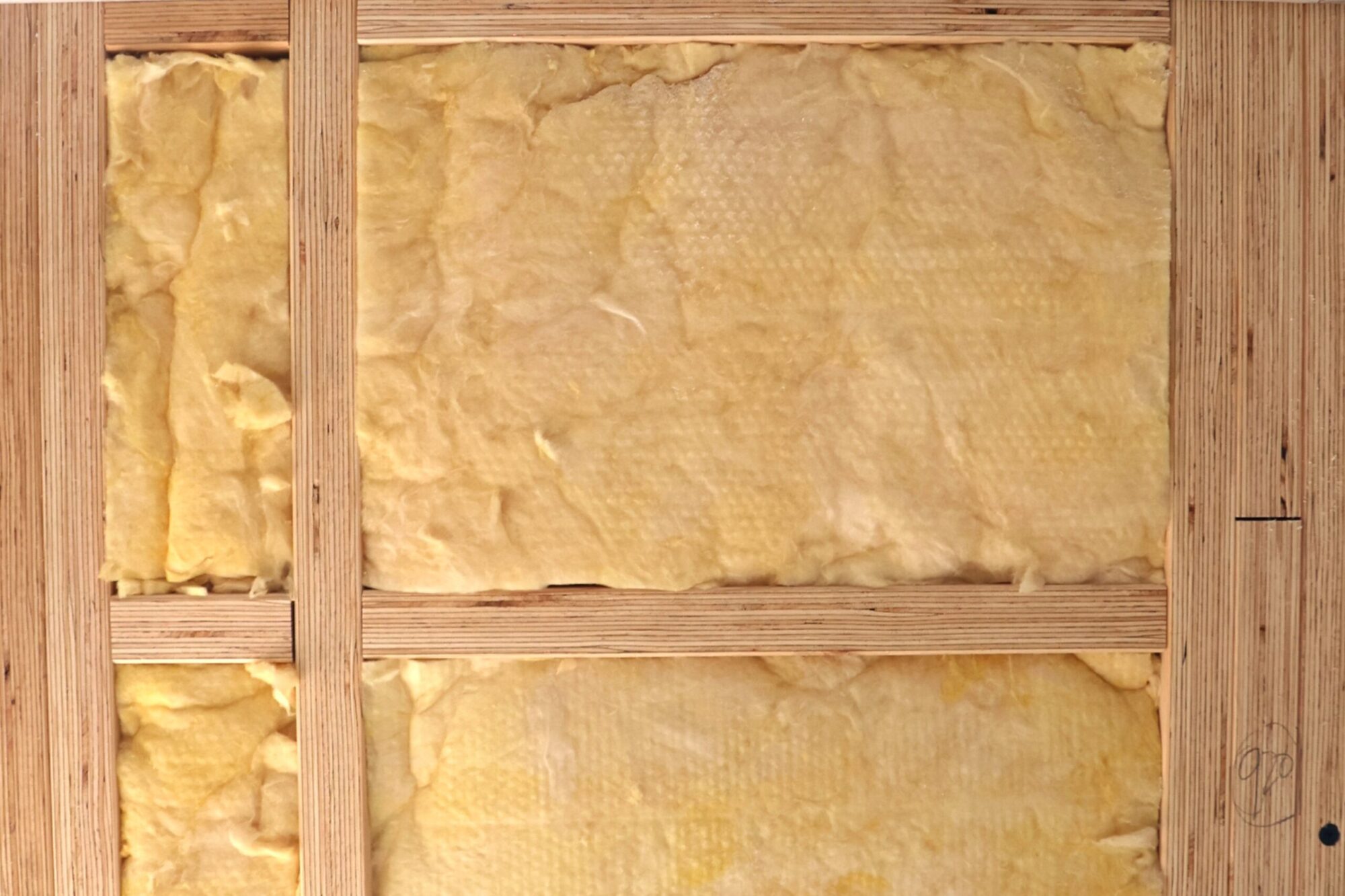

Wall Insulation – R2.6 Bradford Gold fiberglass insulation

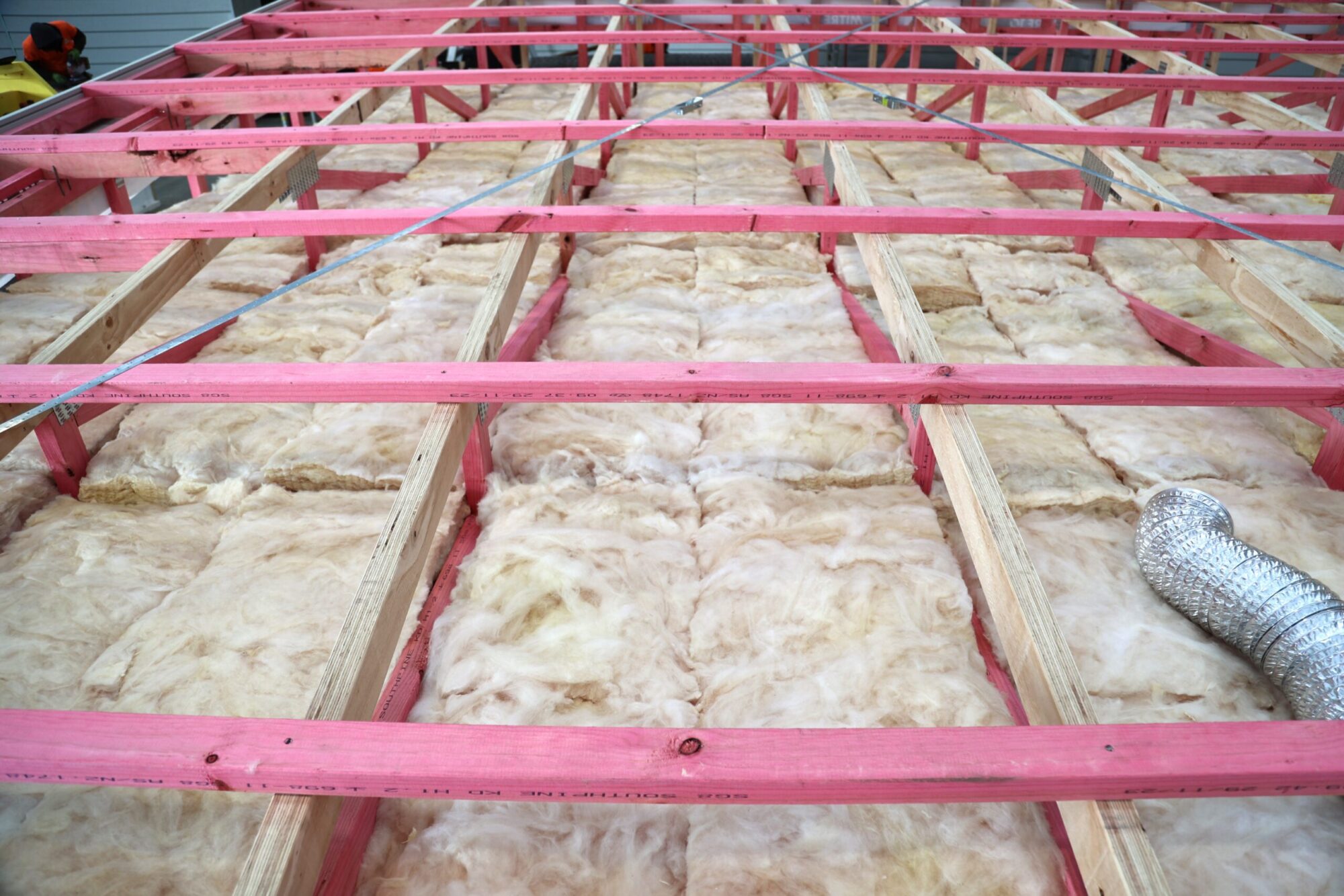

Ceiling Insulation – Minimum R6.6 Bradford Gold fiberglass insulation

Interior Linings & Doors

High quality interior finishing products are used for long durability.

Walls & Ceilings – Standard 10mm plaster board gib stopped to a Level 4 finish
Wet Area Walls – 10mm wet area plaster board to Laundry, Ensuite and Bathroom walls where applicable
Ceiling Margin – Square stopped
Skirtings – 60×10 FJ Single bevel pine painted to match walls
Sills & Architraves – 60×10 FJ Single bevel pine
Interior Paint – Dulux paint system is used

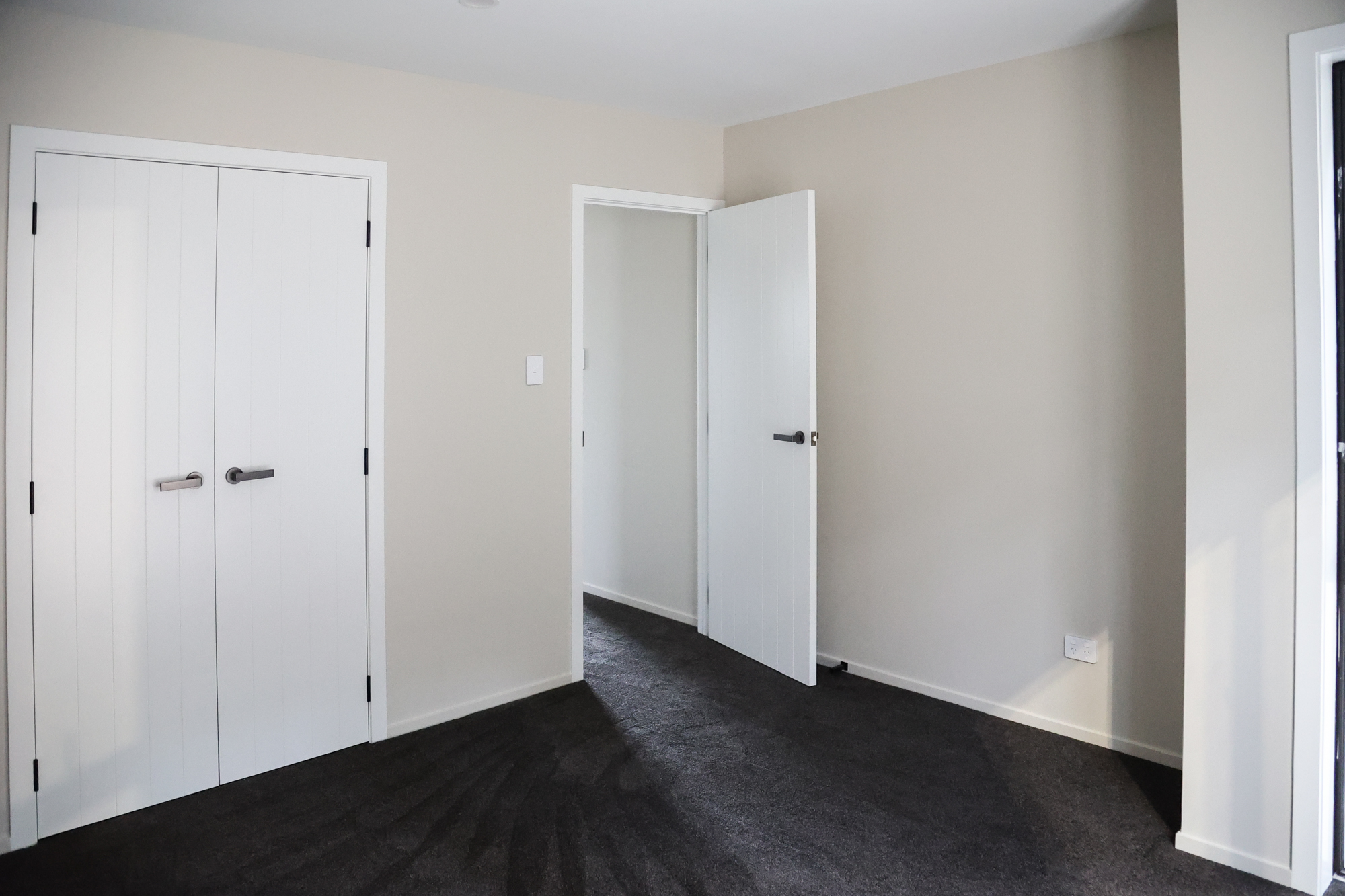

Hinged Doors – Hollowcore MDF Smooth painted doors throughout

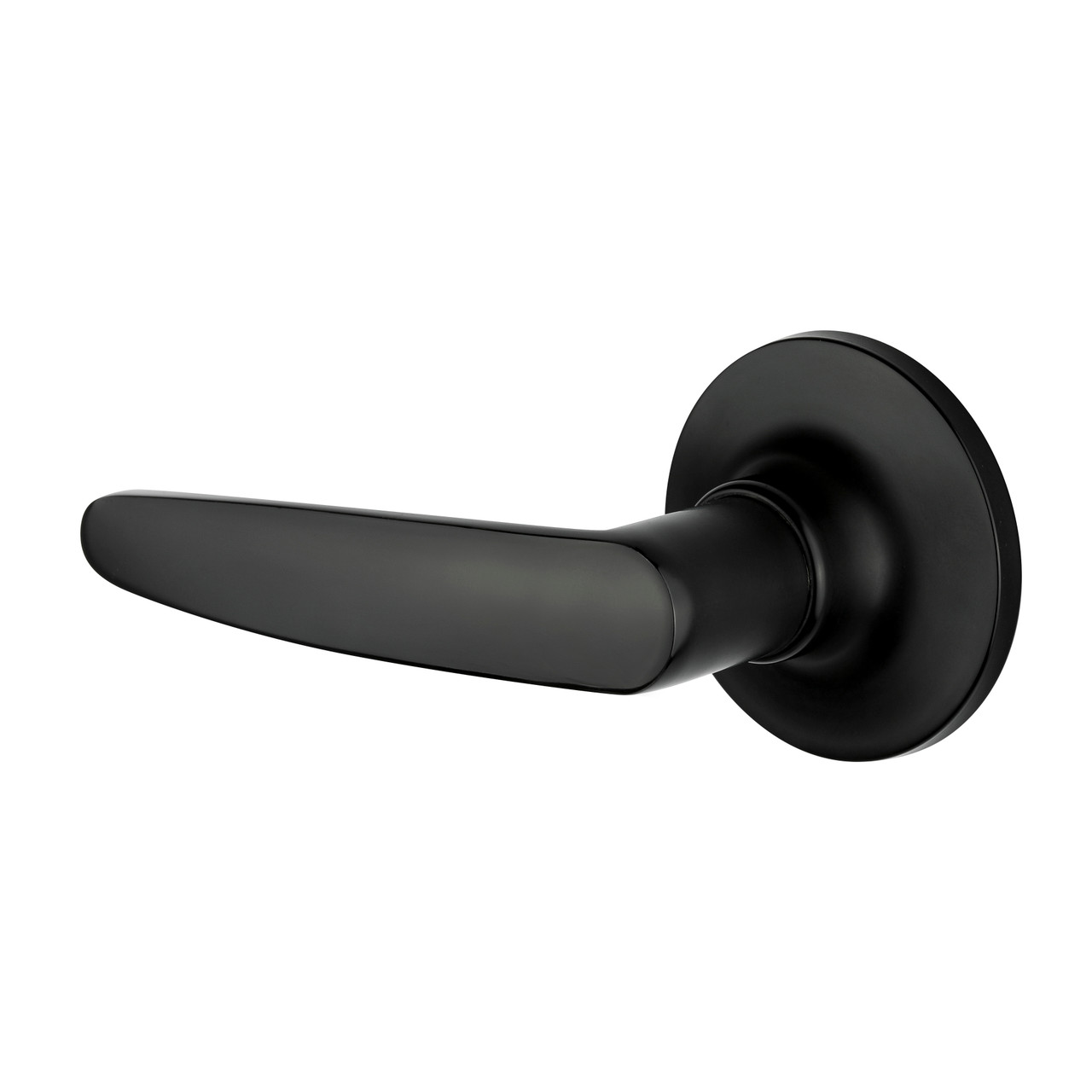

Interior Hardware – Sylvan Dalton in Satin Chrome or Denver in Black hardware

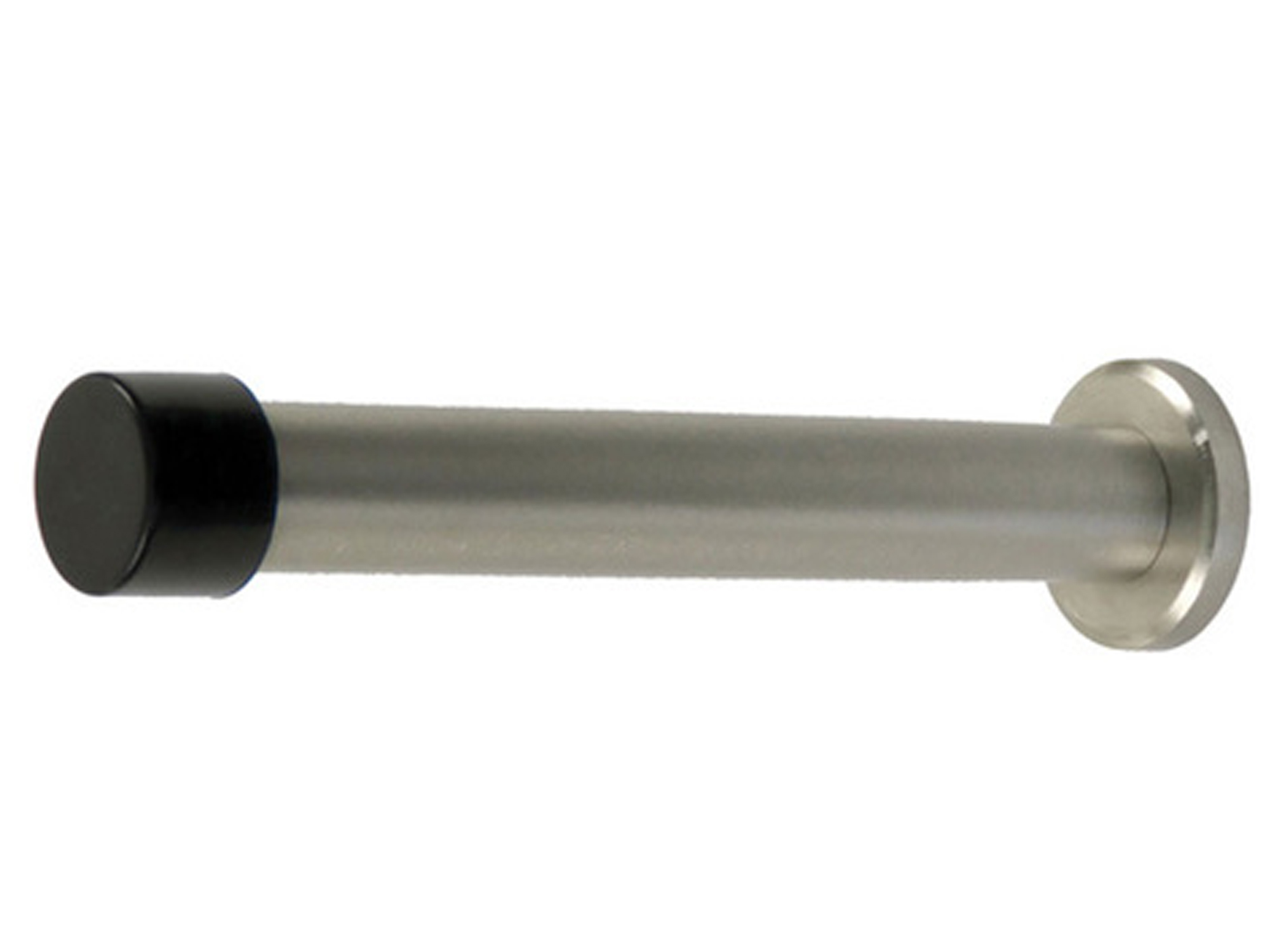

Doorstops – Sylvan round skirting mounted & floor mounted stops as required to match door hardware

Floor Coverings

High quality floor coverings are used in all homes with a mix of hard plank flooring & carpet.

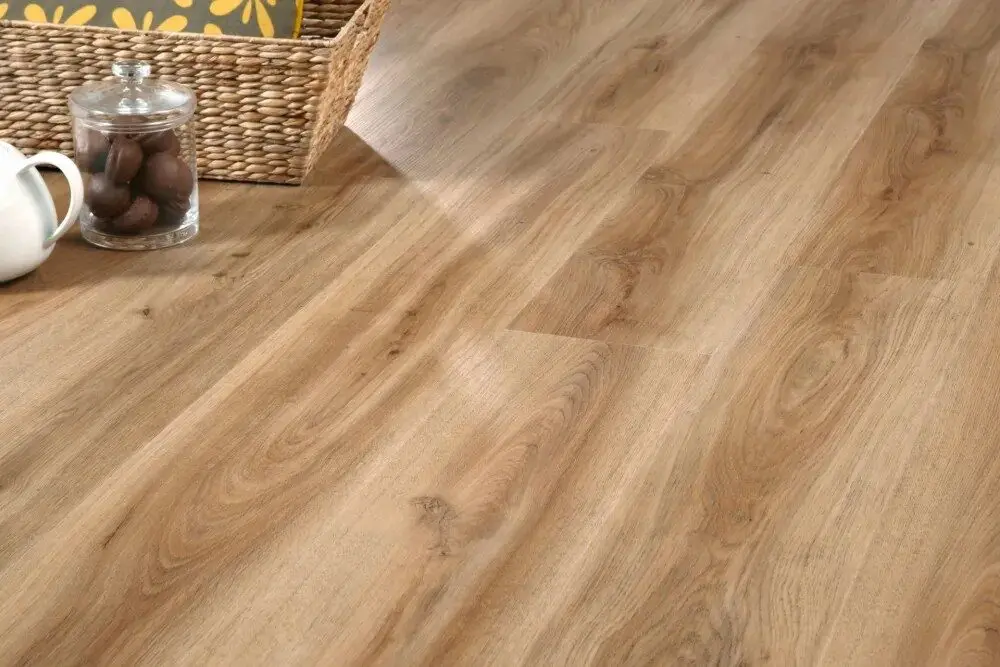

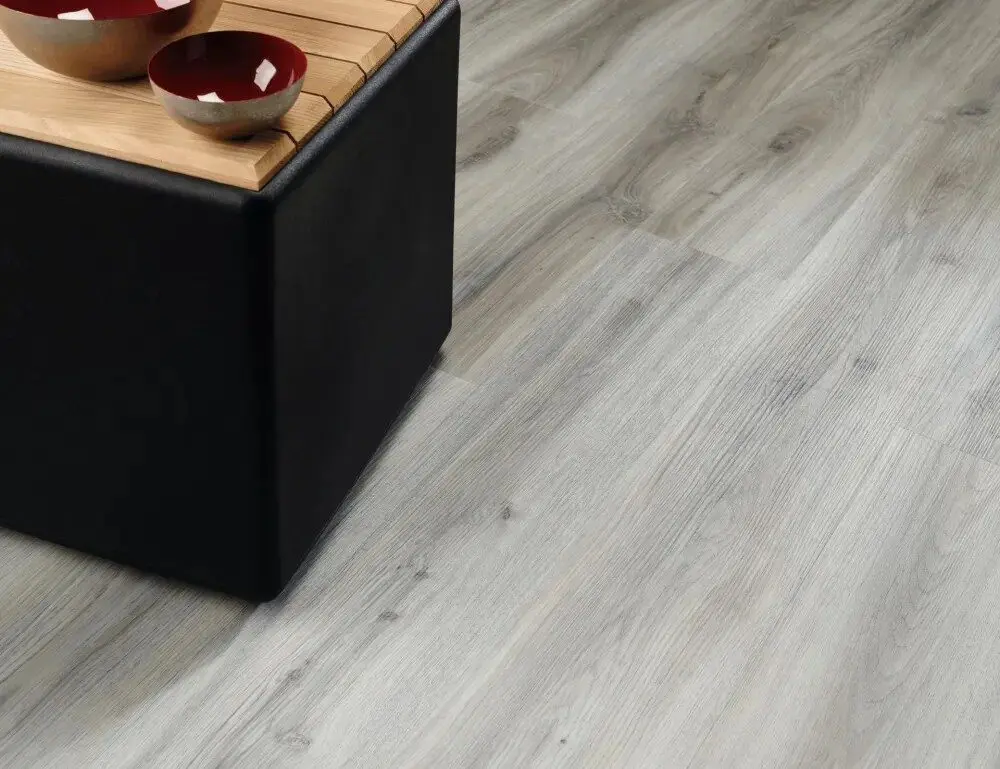

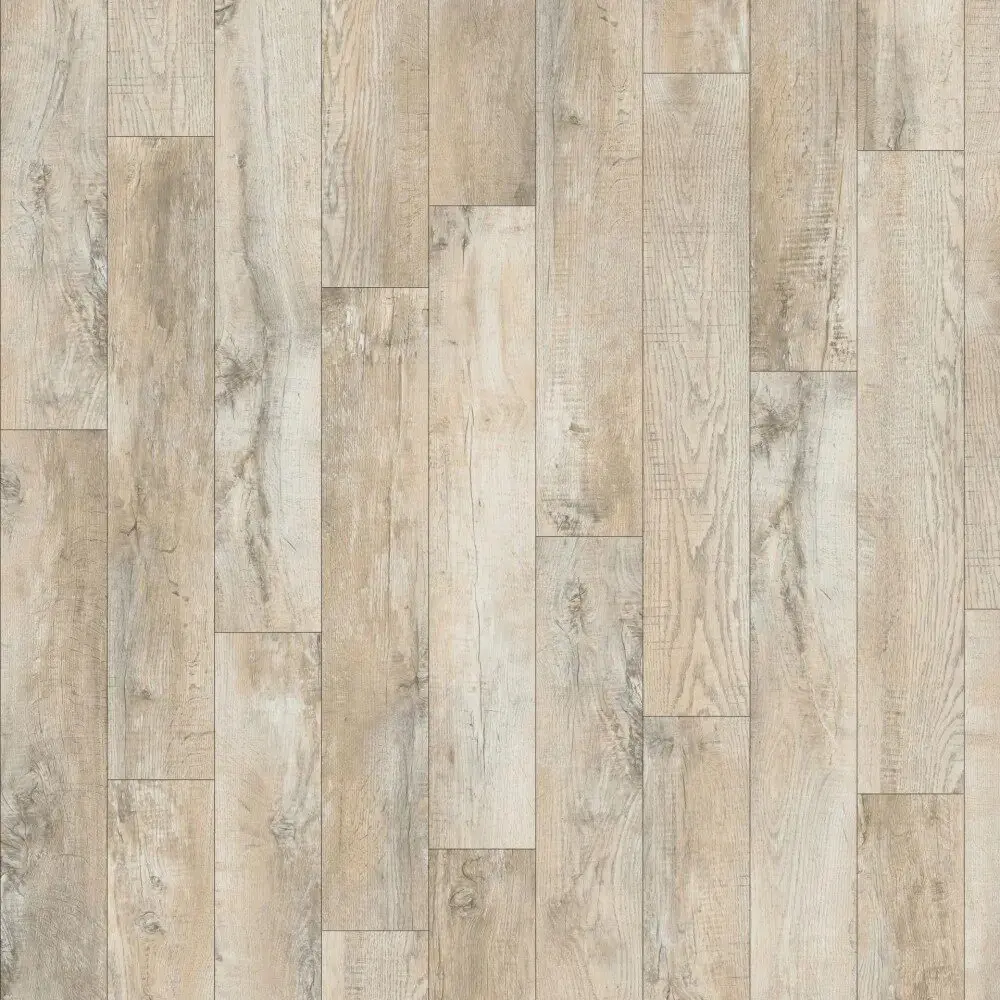

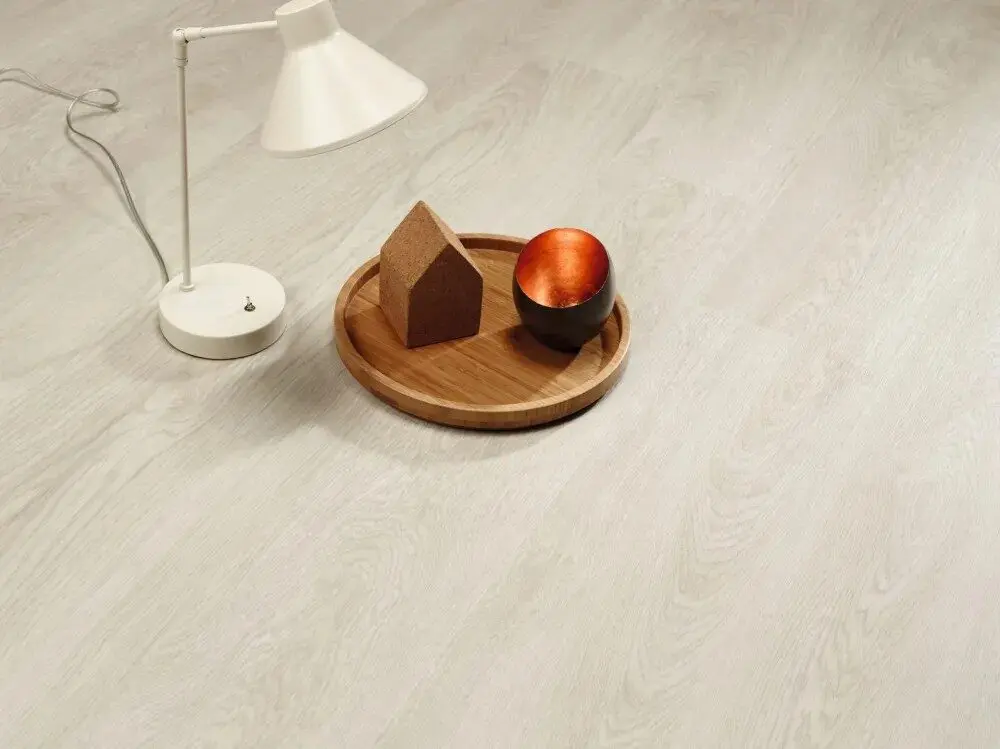

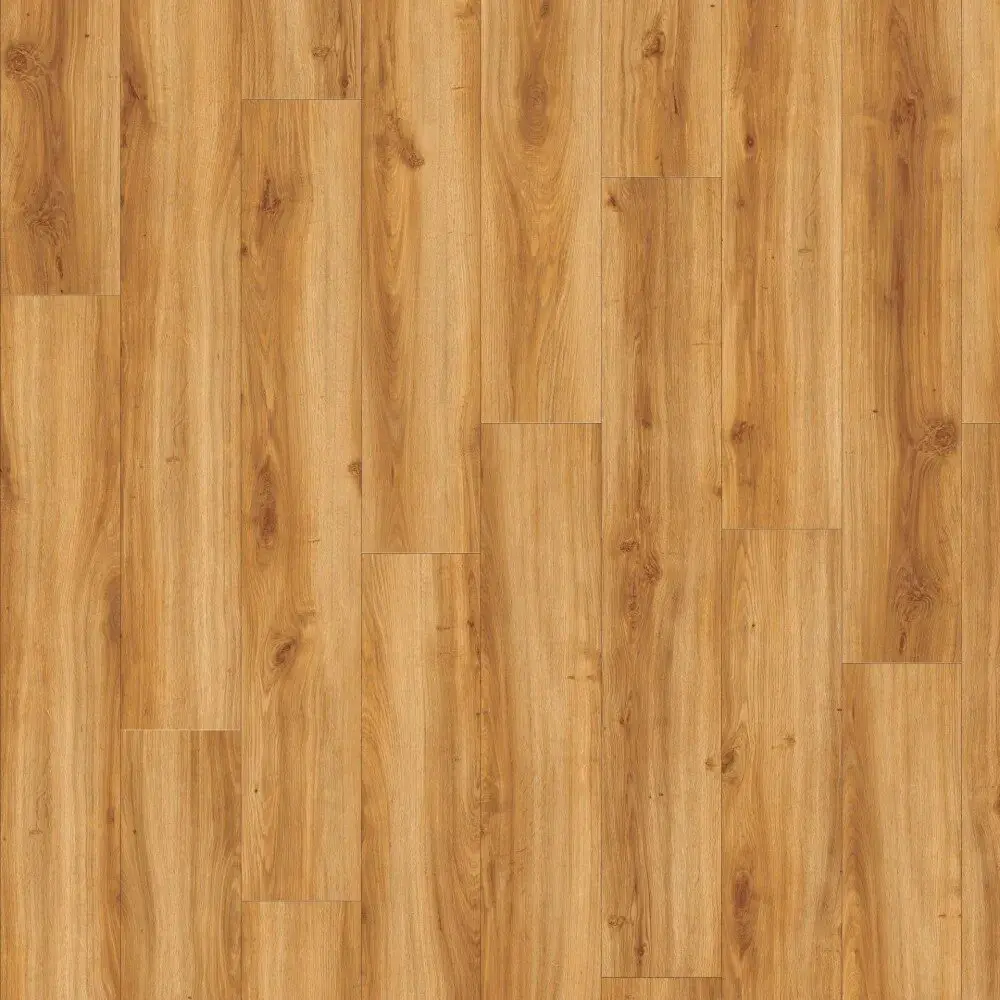

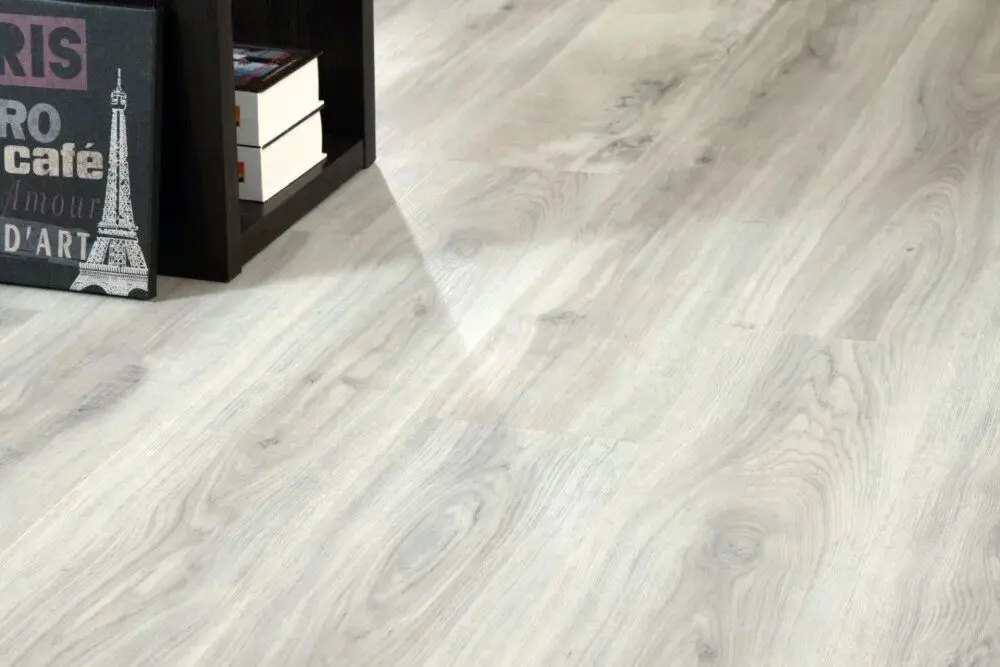

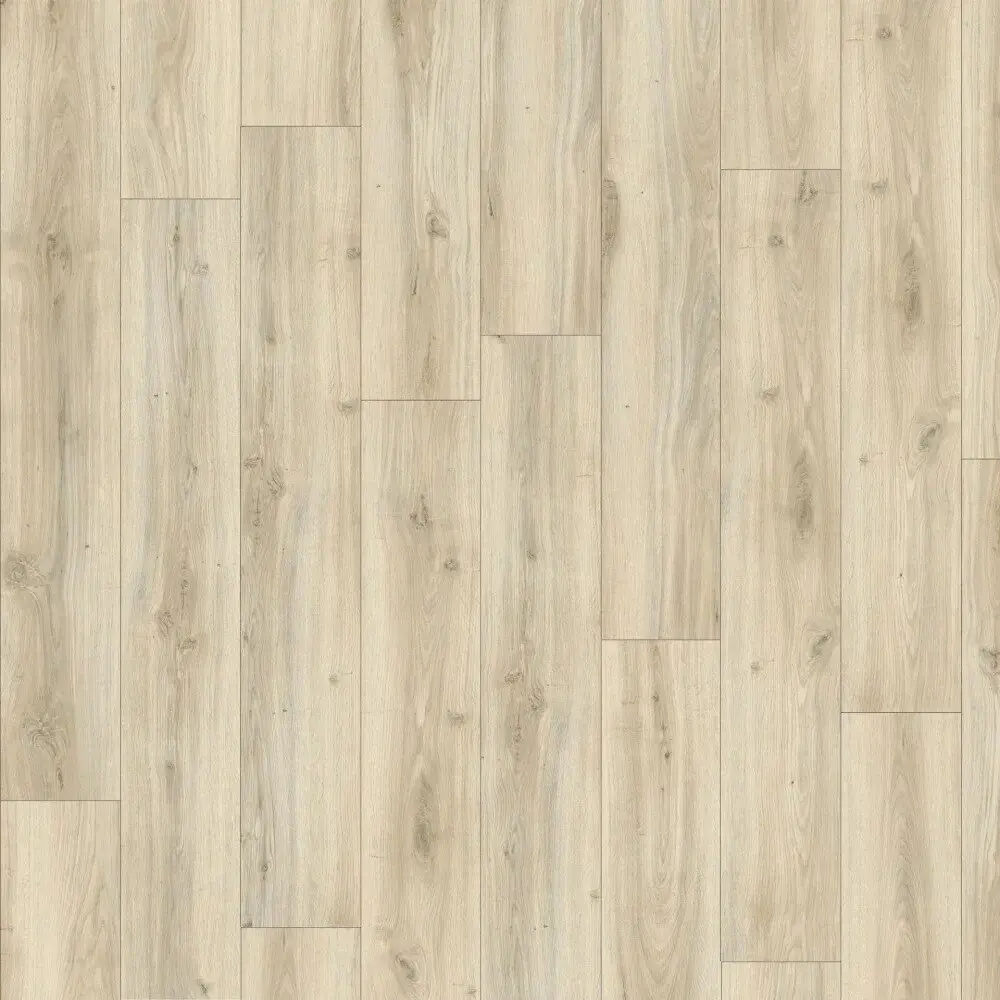

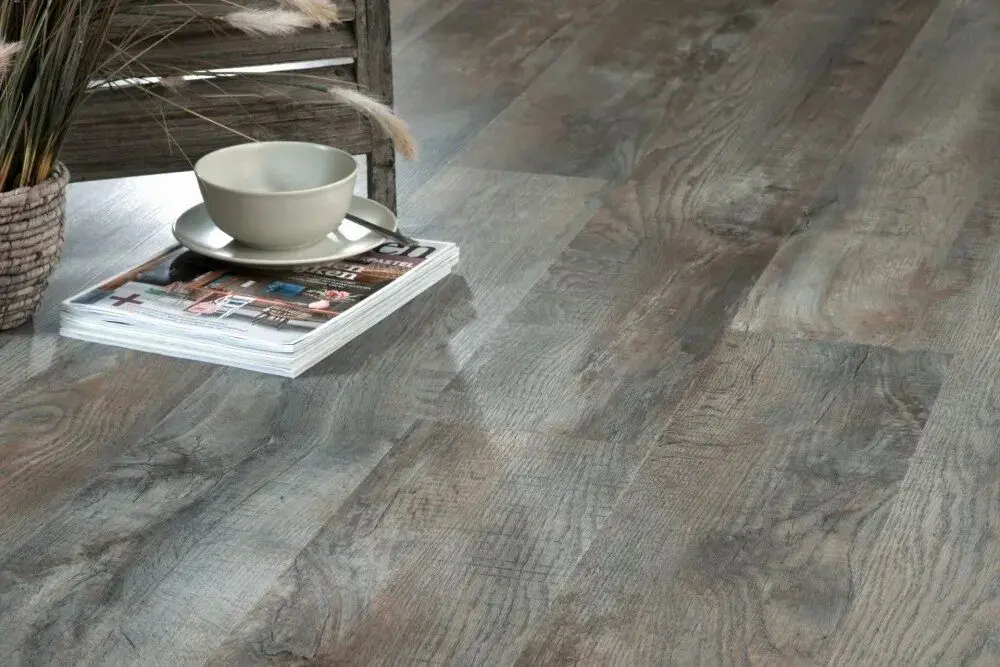

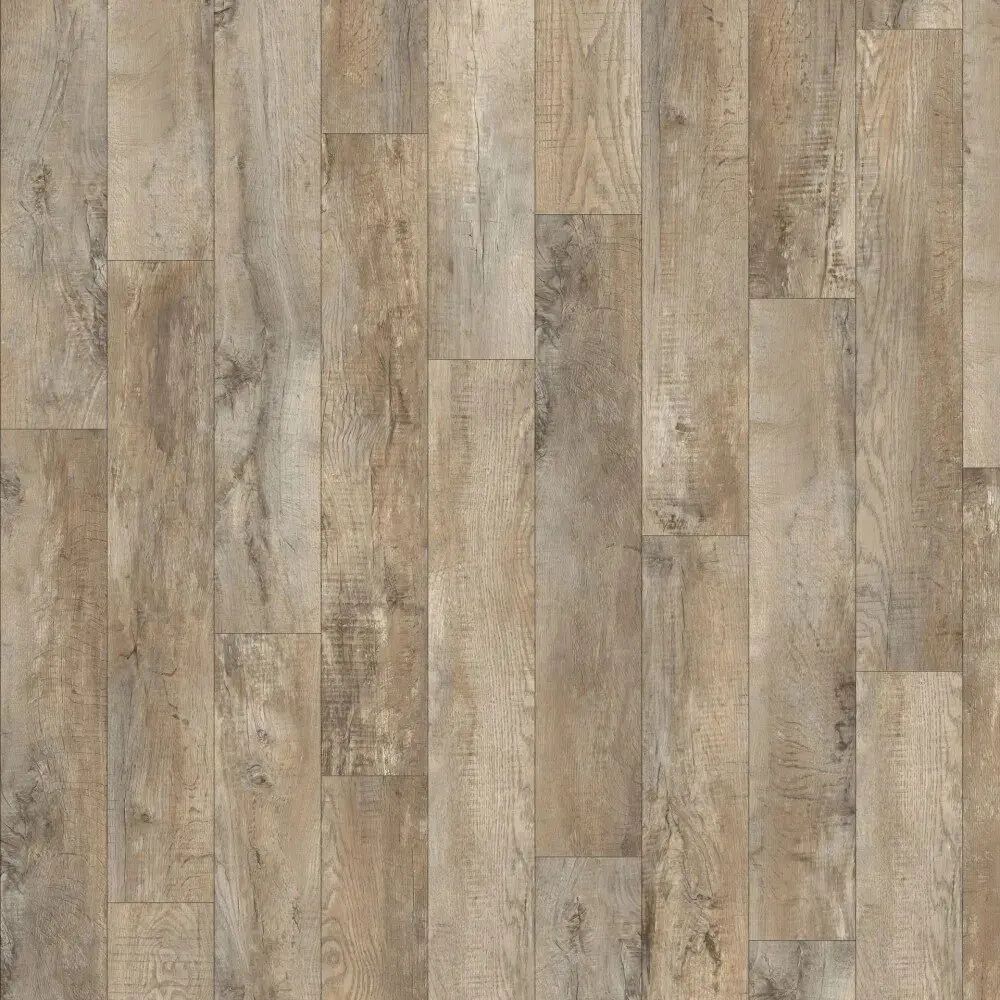

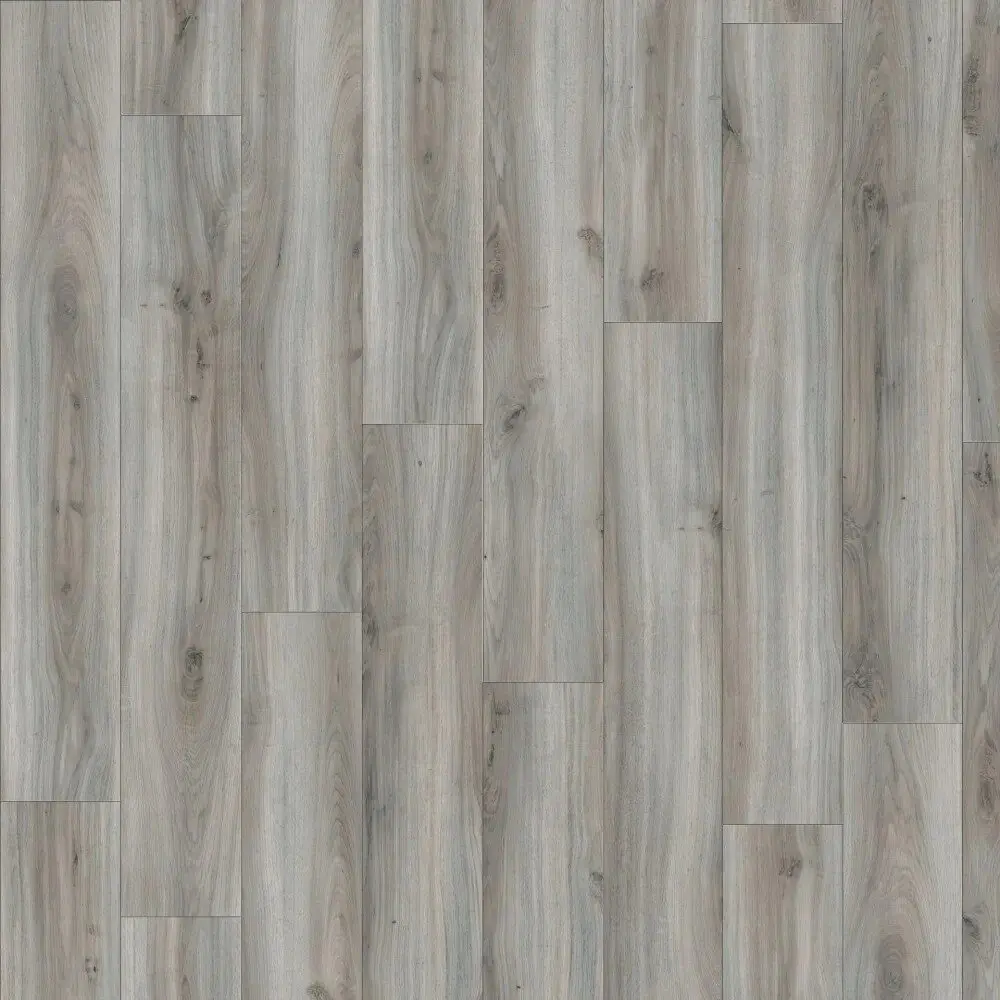

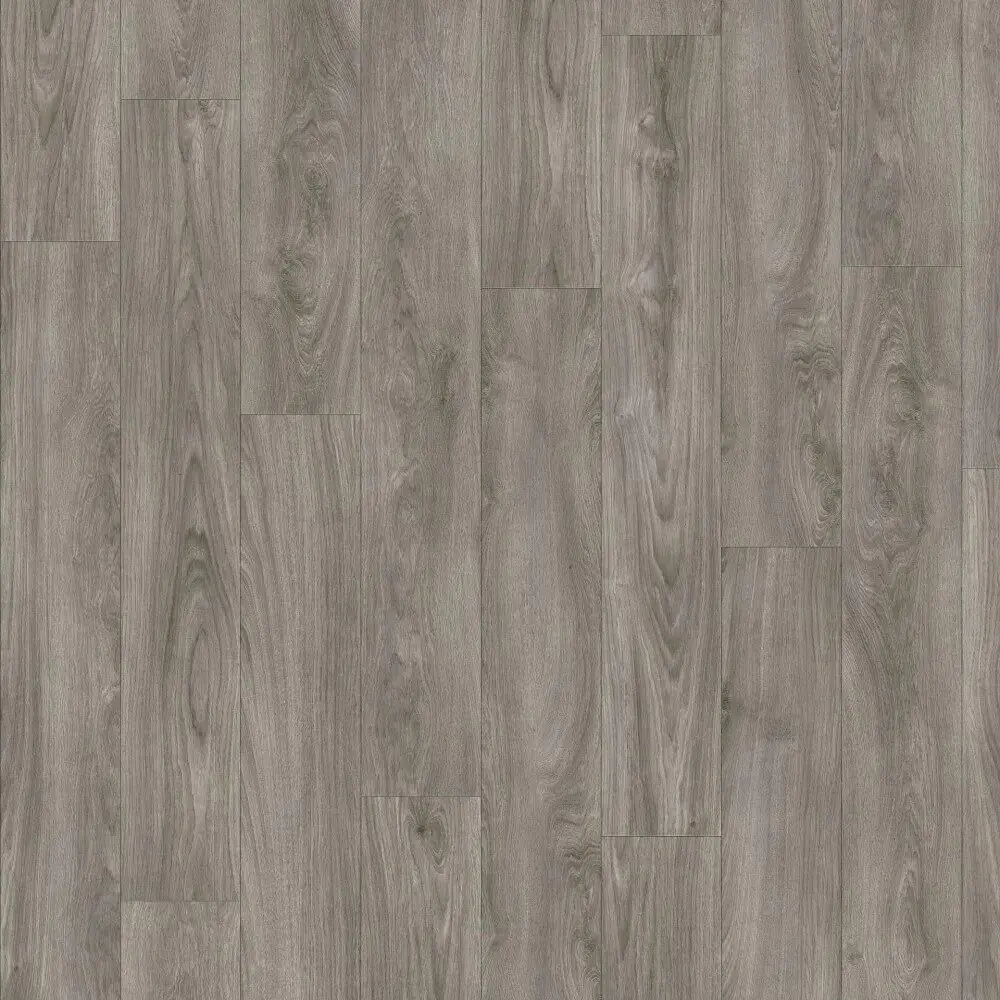

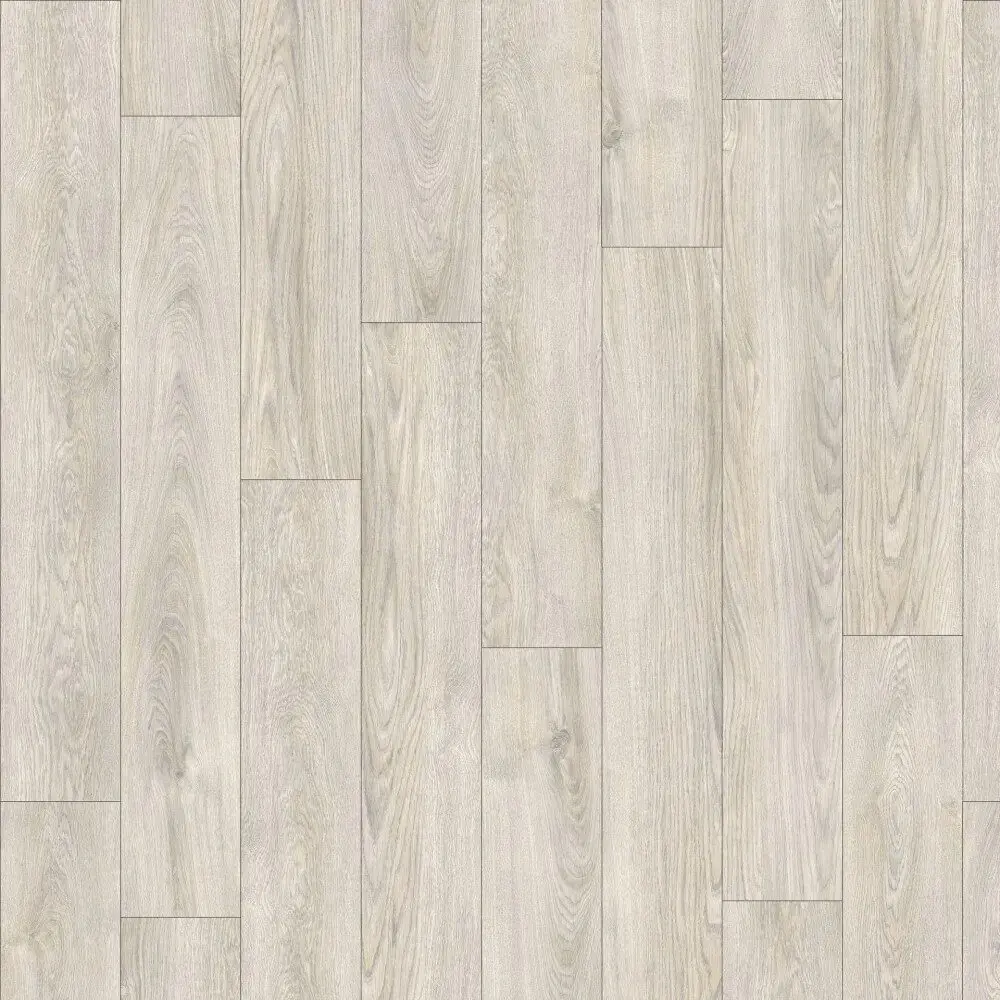

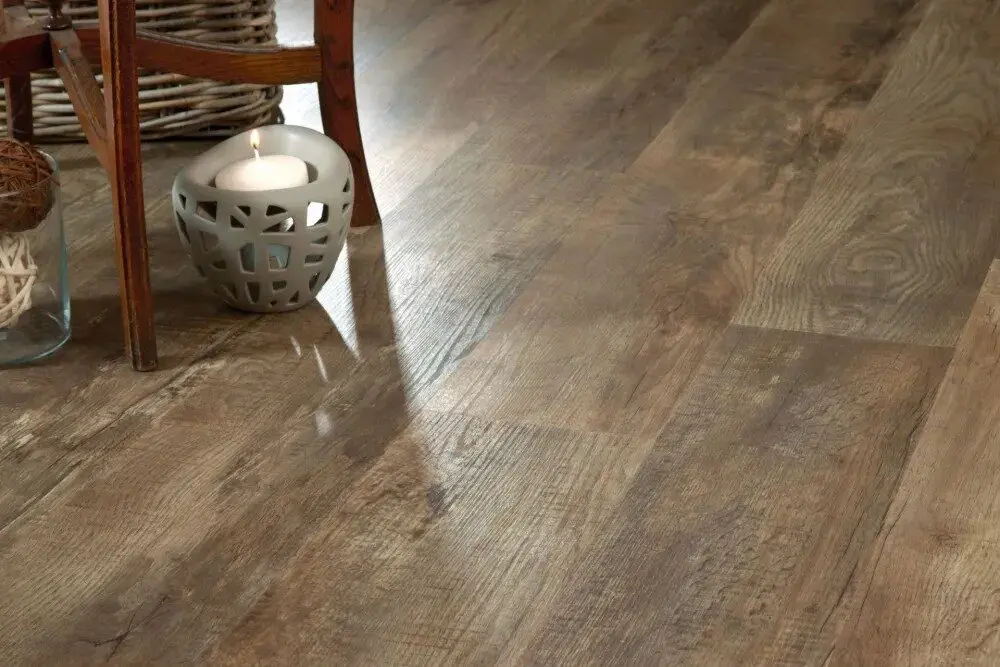

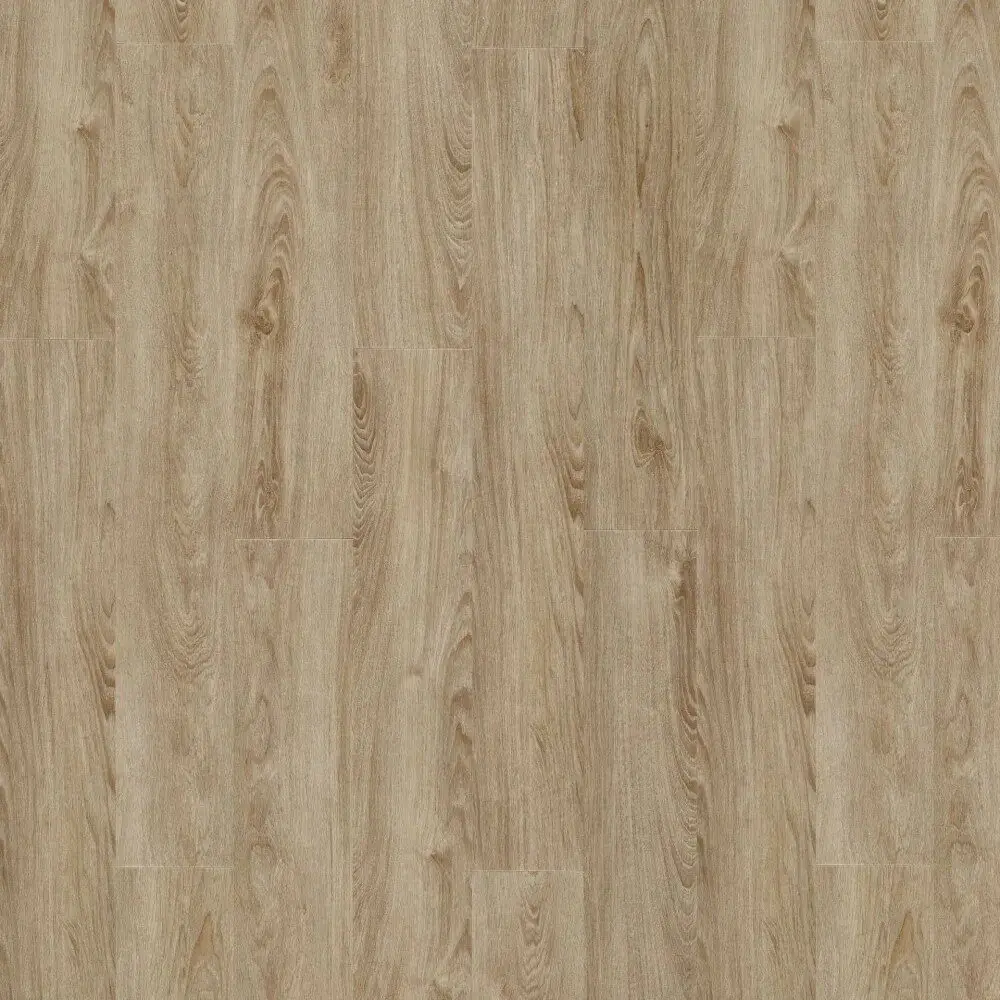

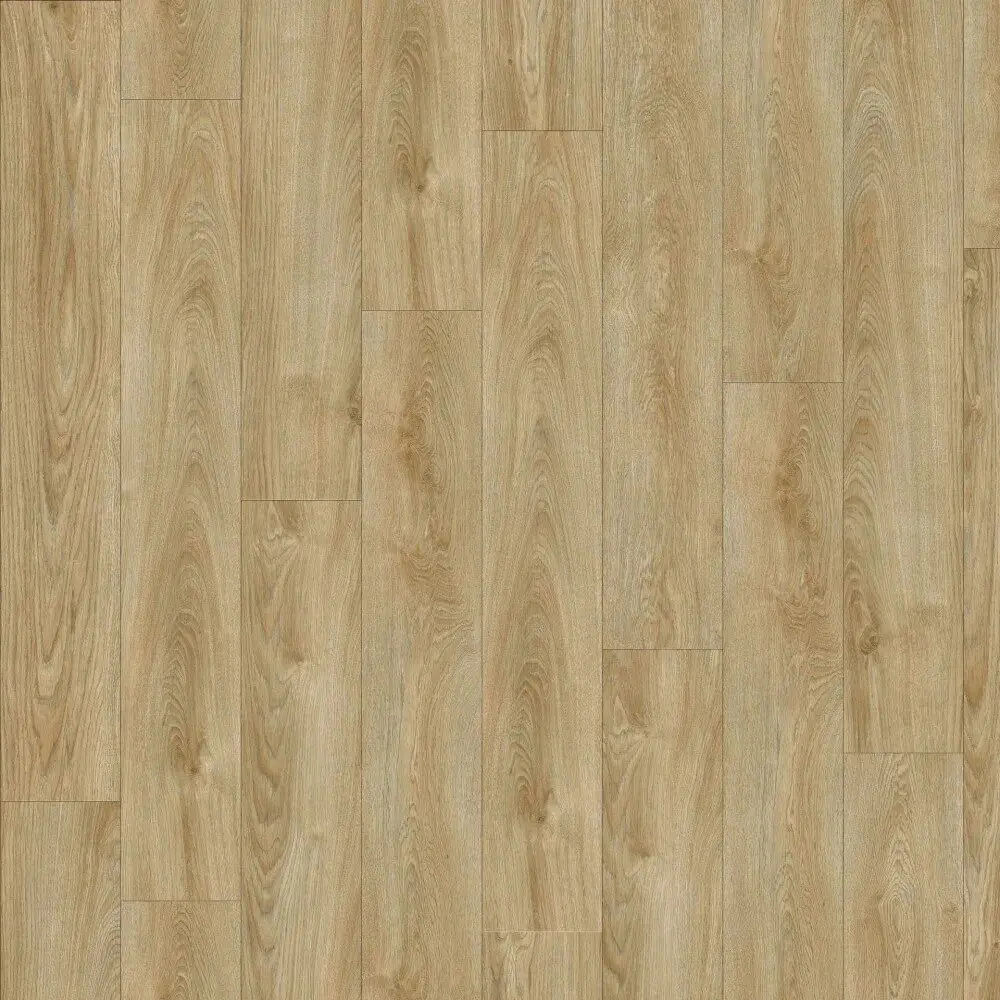

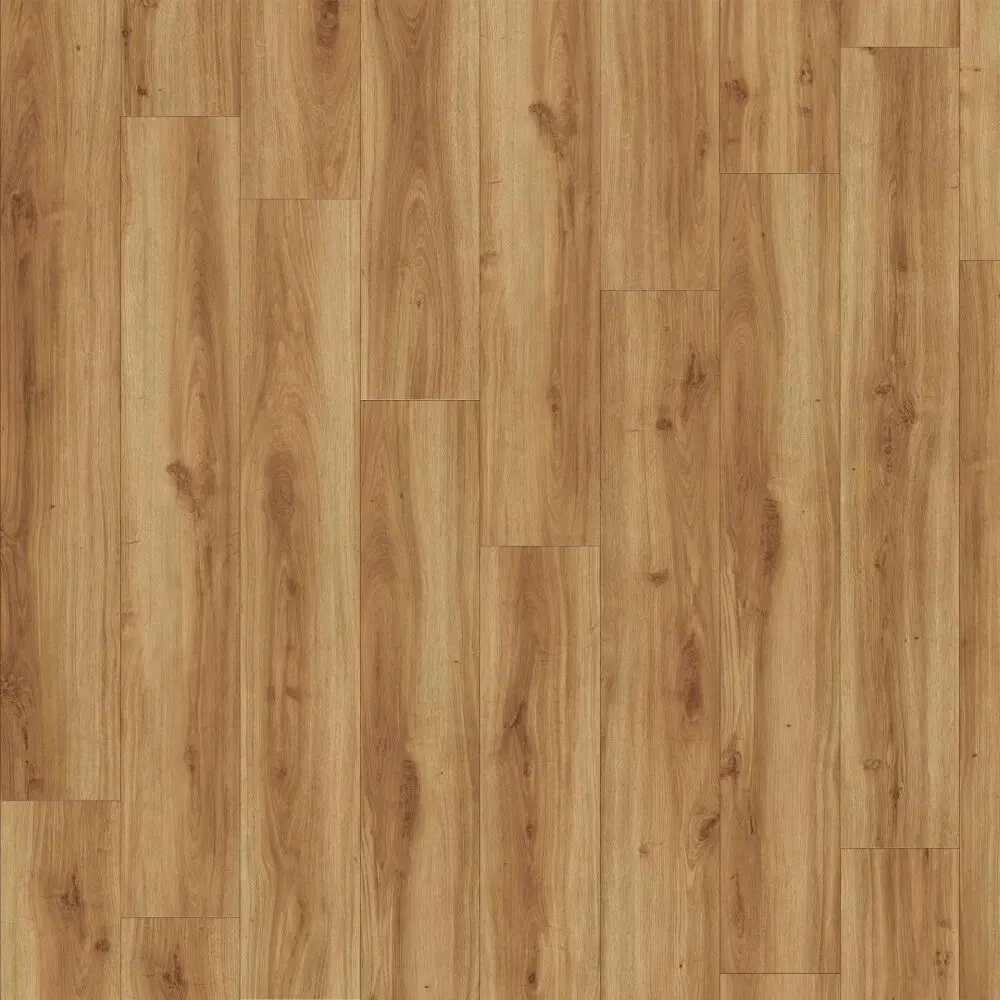

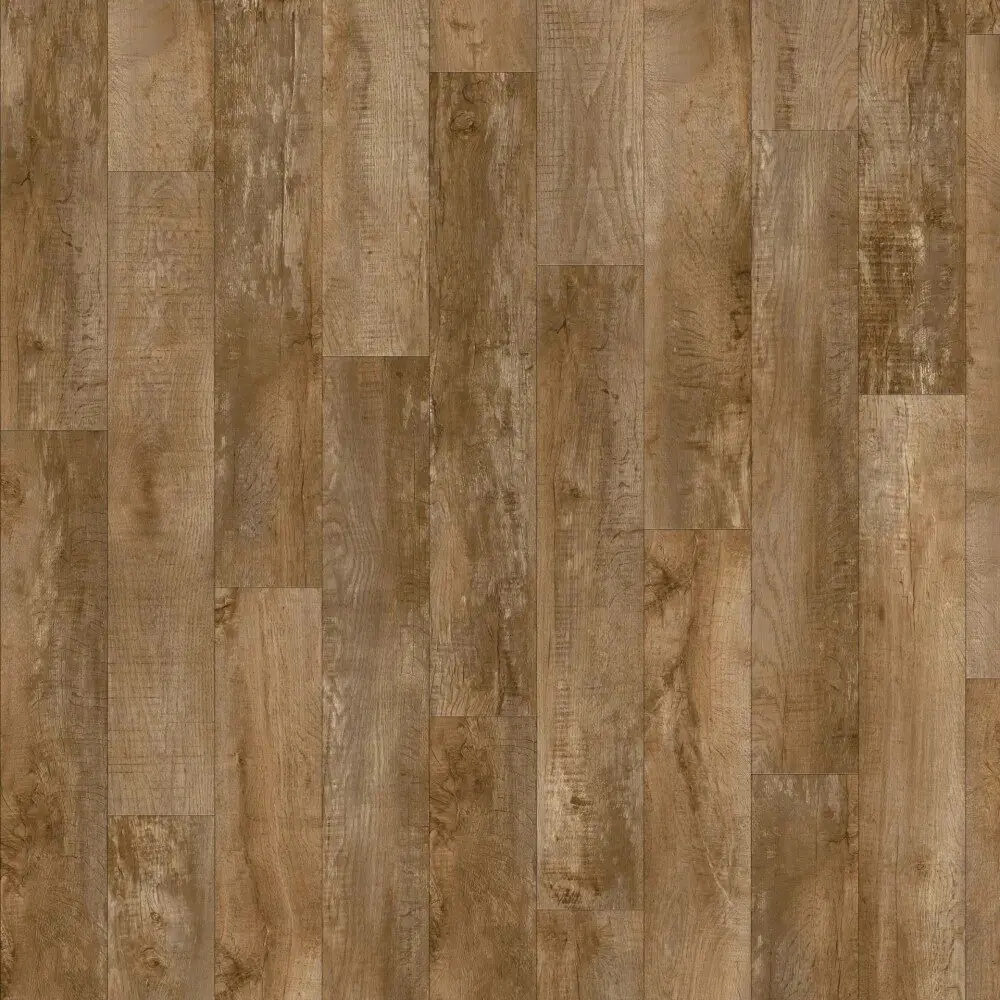

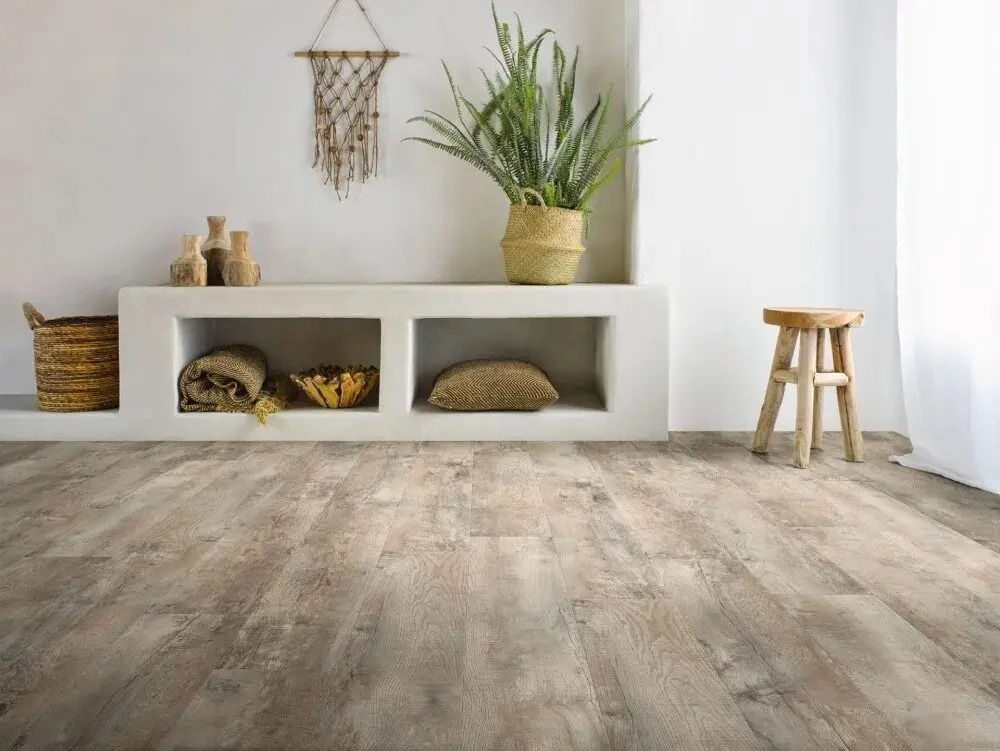

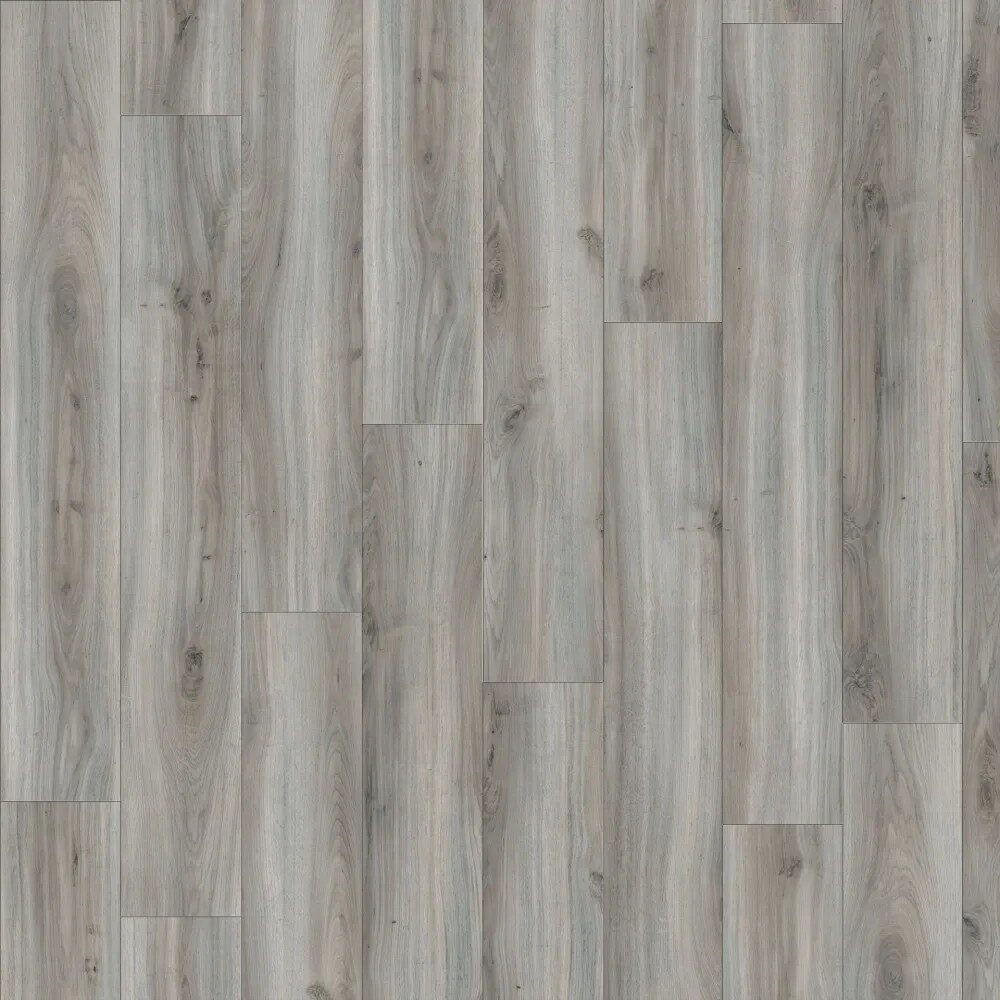

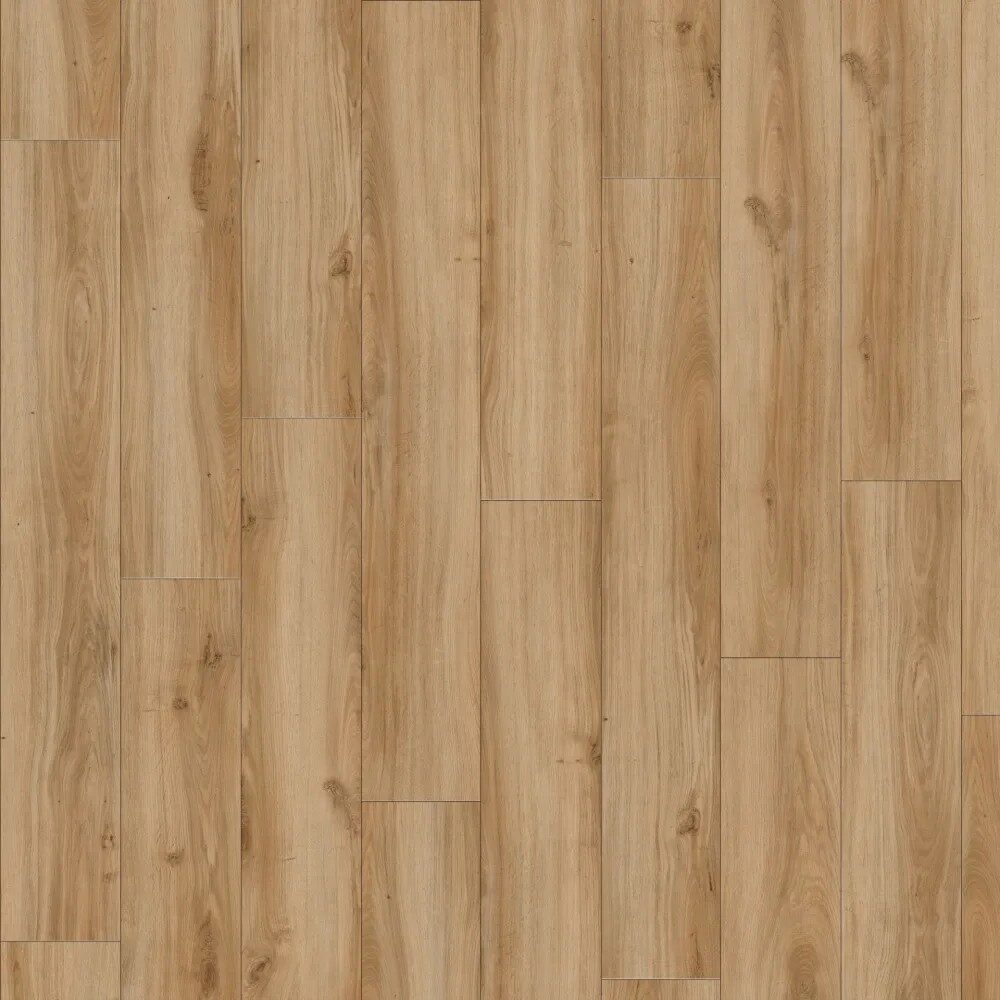

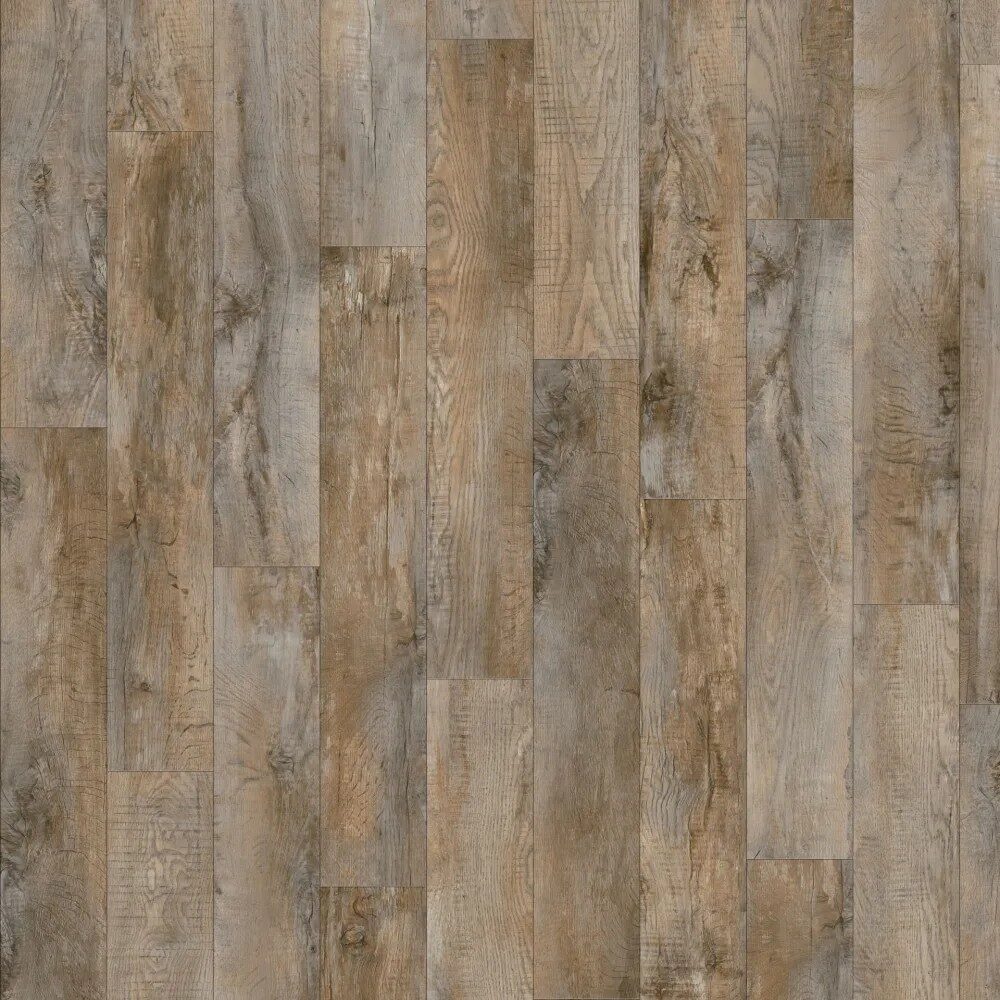

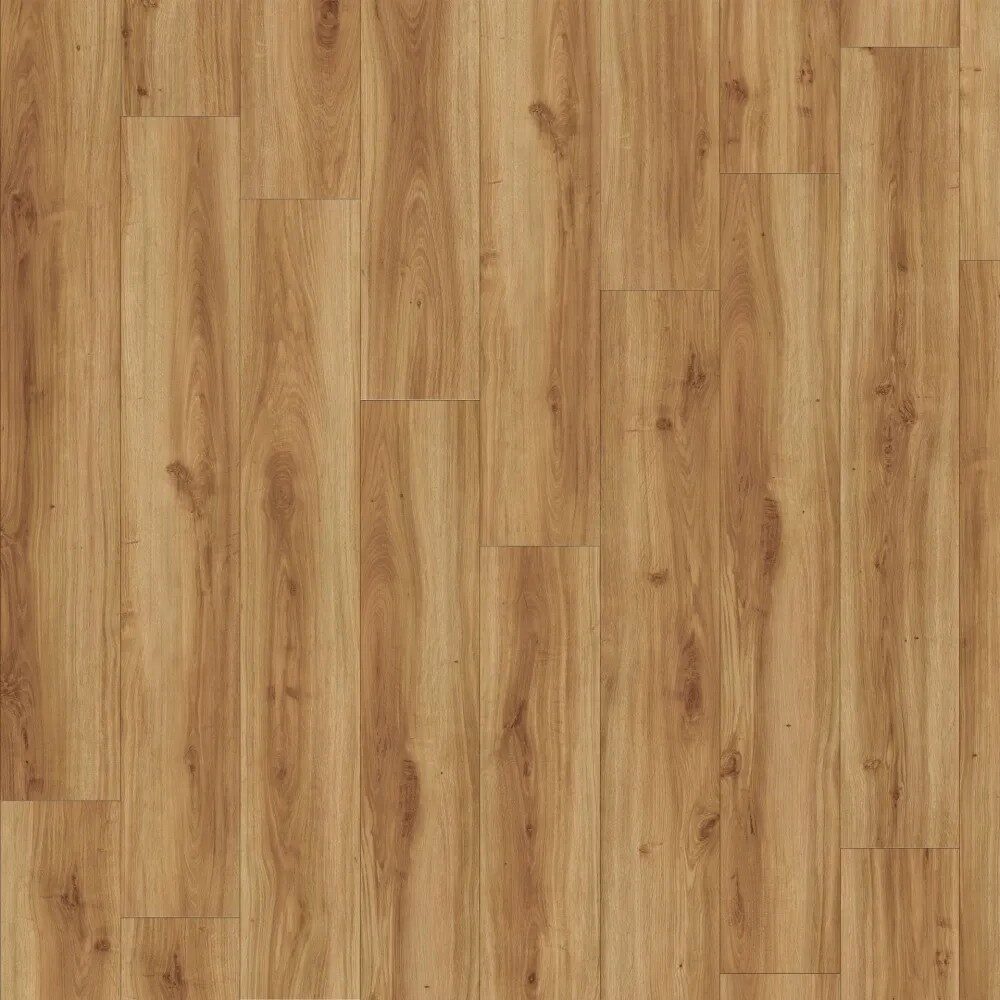

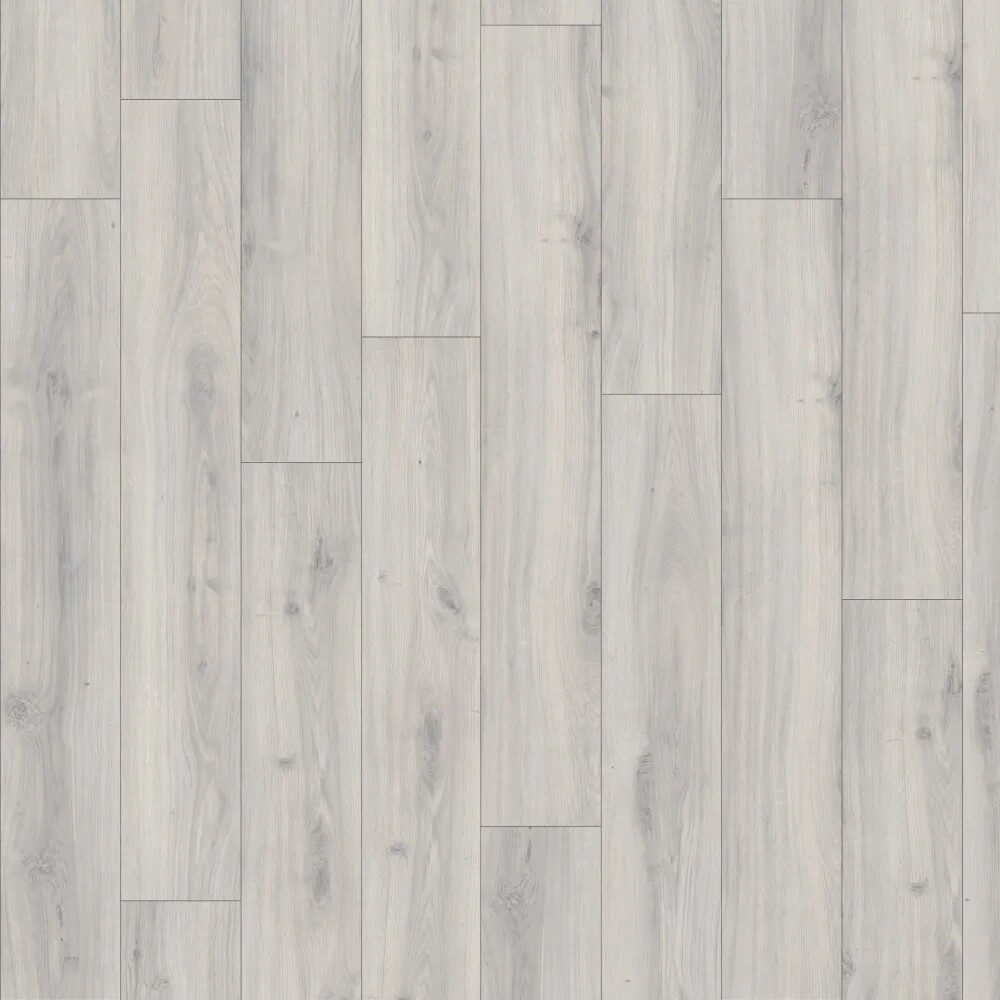

Hard Flooring – Luxury Vinyl Planking, Moduleo Select or or Jacobsen Traffic 250 flooring in kitchen, laundry, bathroom, ensuite & toilet. Robert Malcolm’s range of luxury vinyl planking is made up of three primary layers. On top is an enhanced protective layer that makes it easy to clean and resistant to scratches and scuffs, and a protective clear film layer which adds durability and helps protect against rips, tears and gouges.

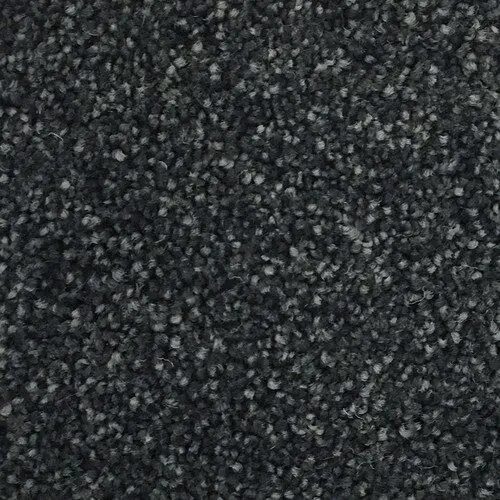

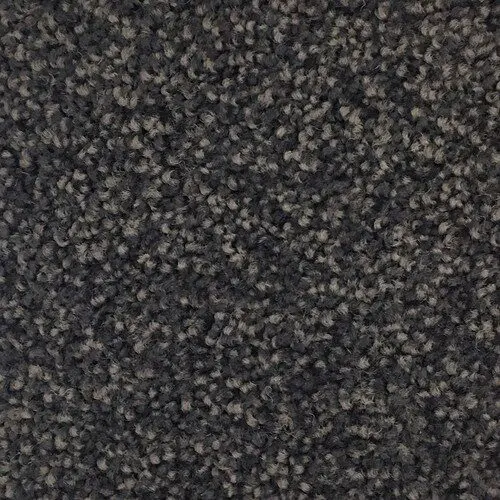

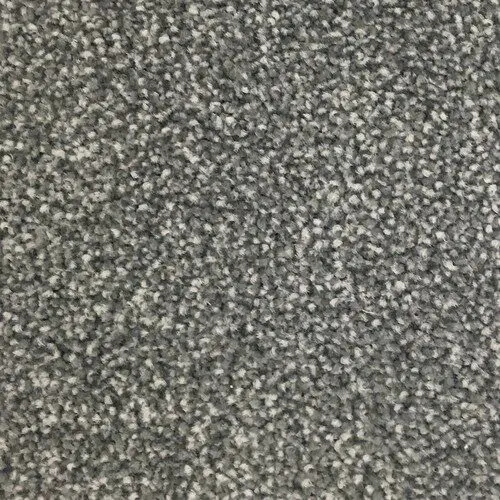

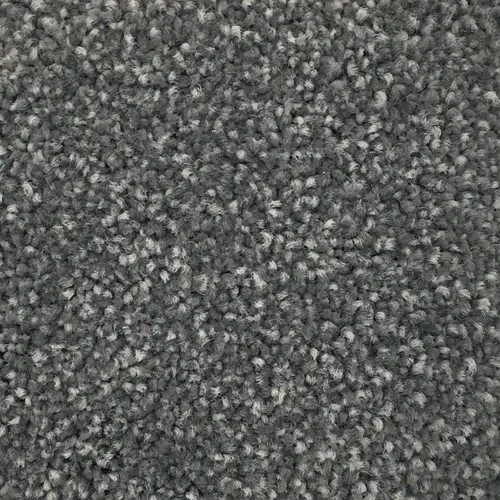

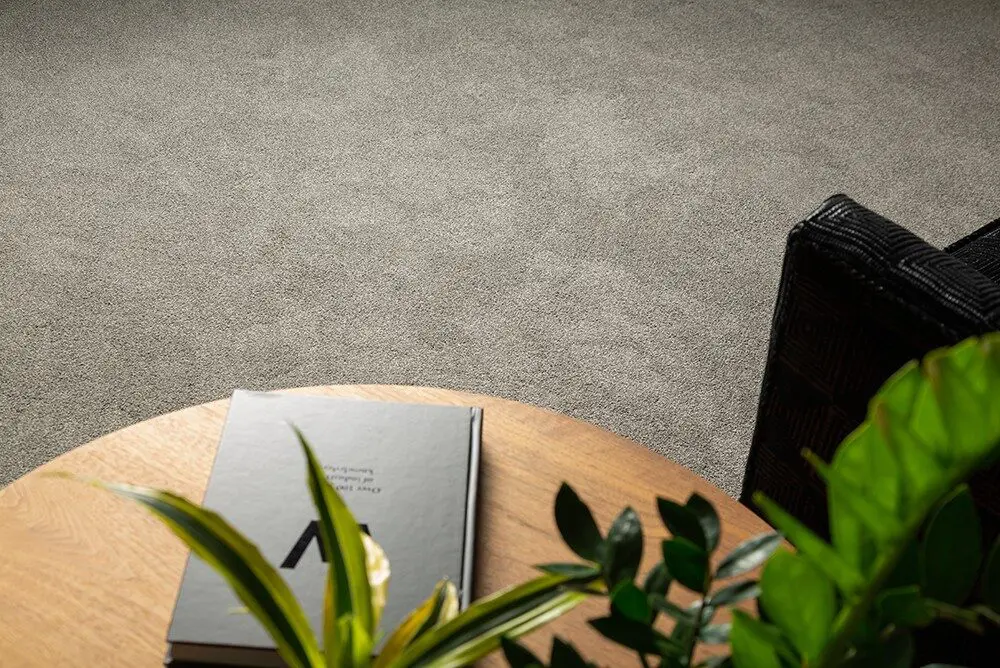

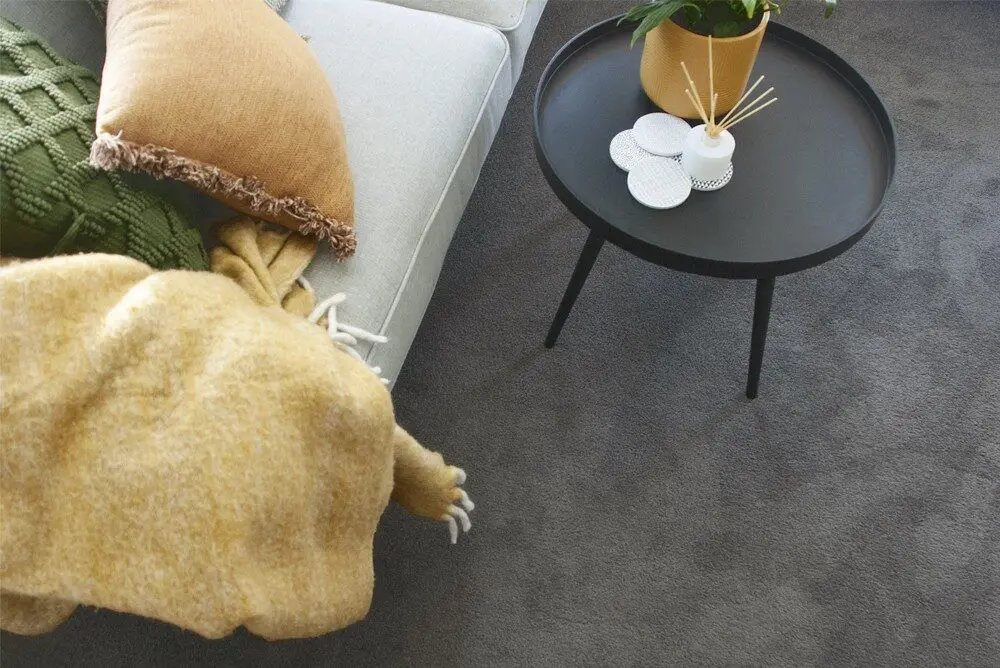

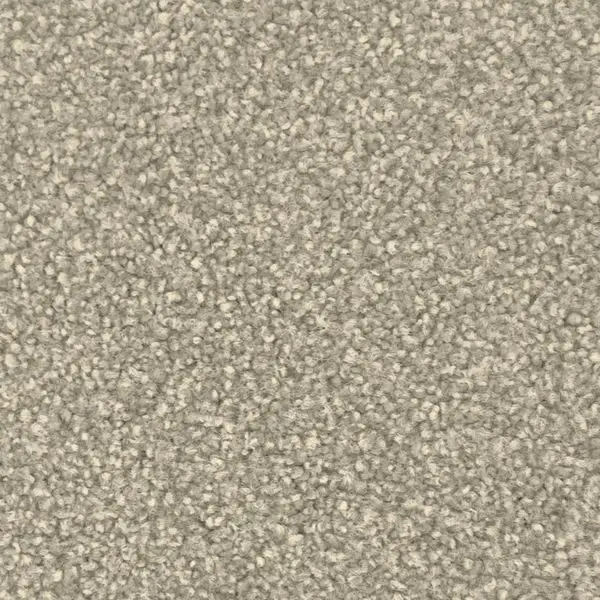

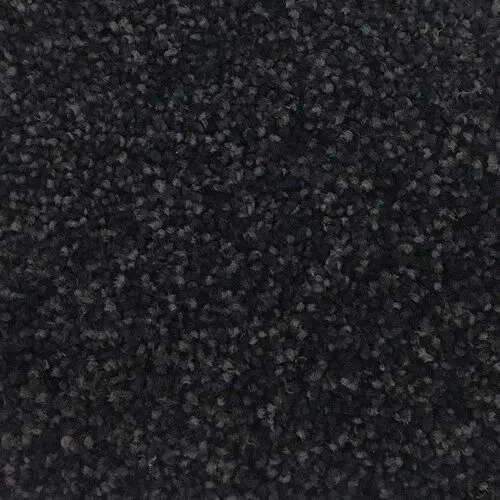

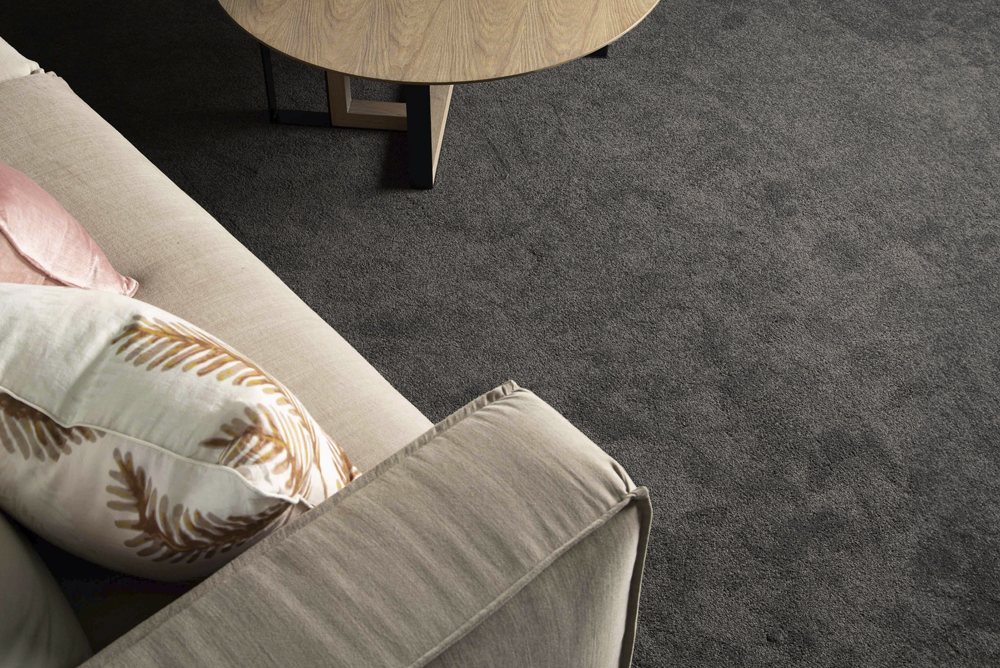

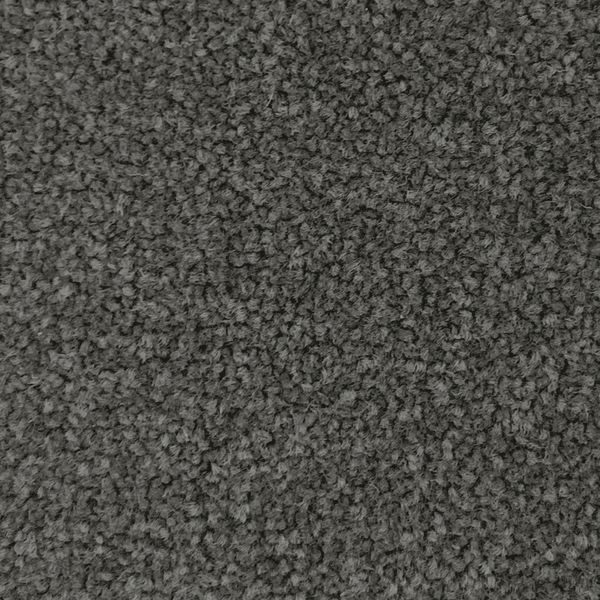

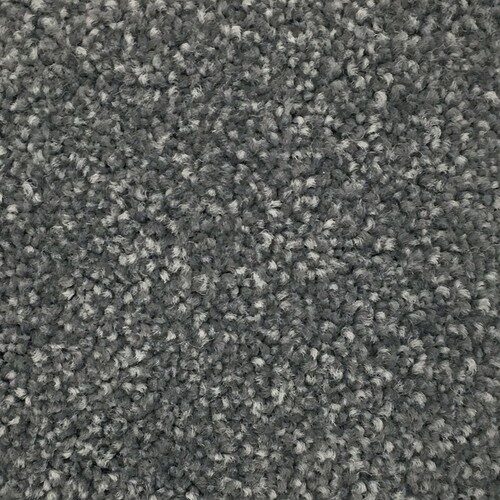

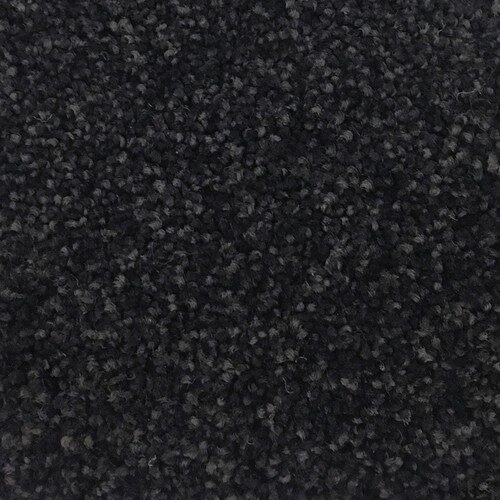

Carpet – Belgotex Delta Solution dyed nylon carpet on 11mm underlay in living, dining, hallway & all bedrooms. Delta carpet is an excellent choice for comfort, performance and style. Made from Stainproof Solution Dyed Nylon with a premium FusionBac backing, its stain proof and fade proof. Available in 7 standard colours.

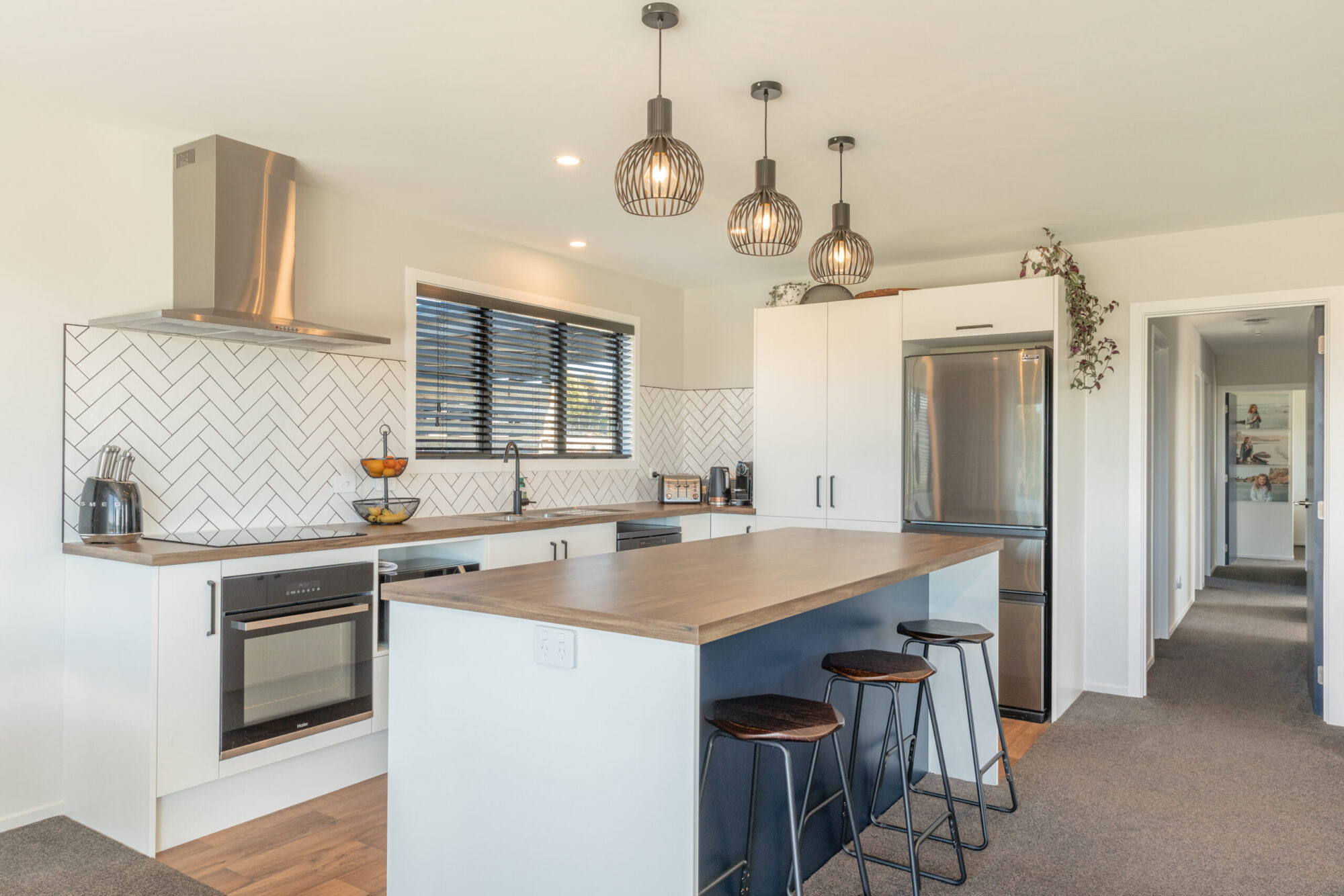

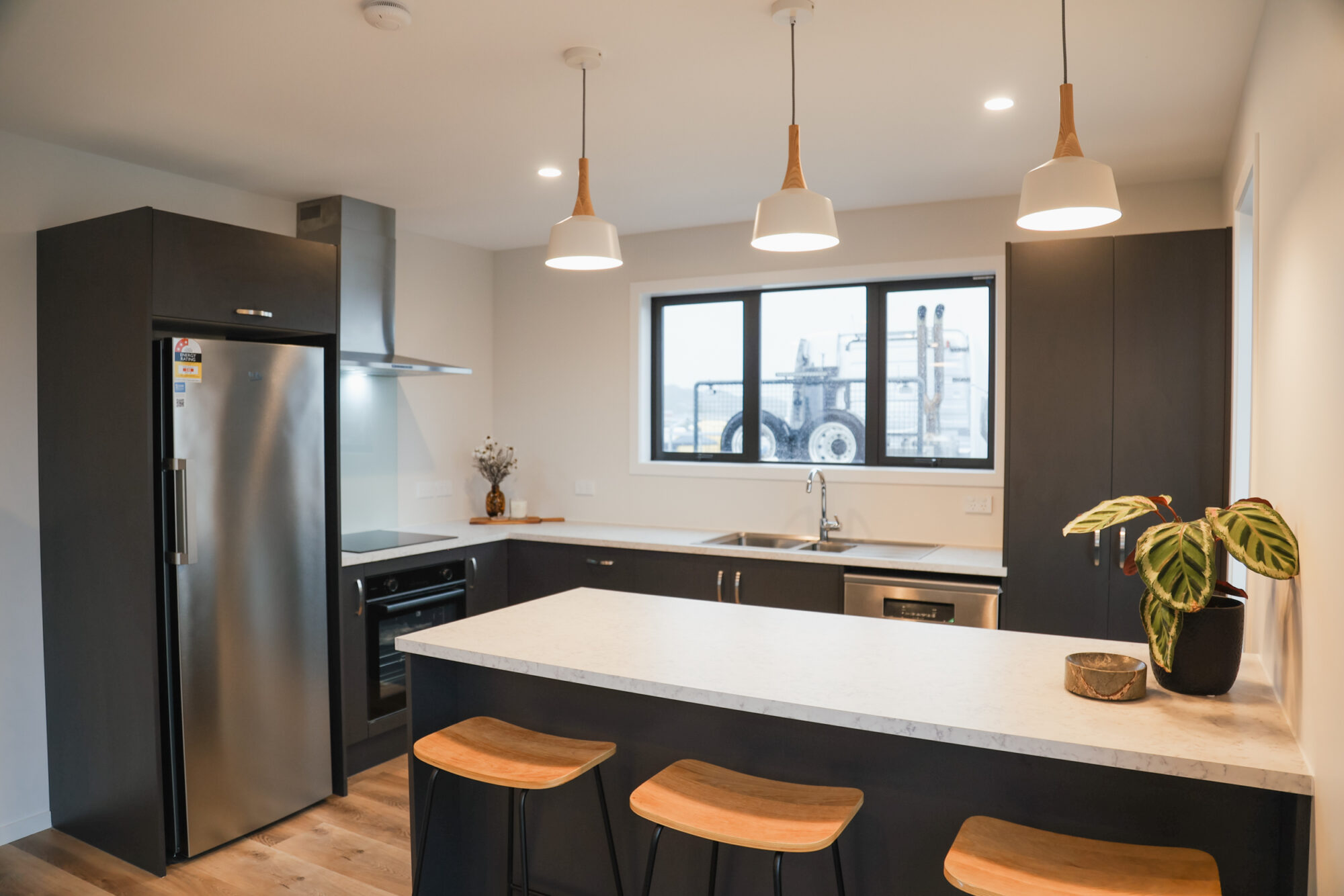

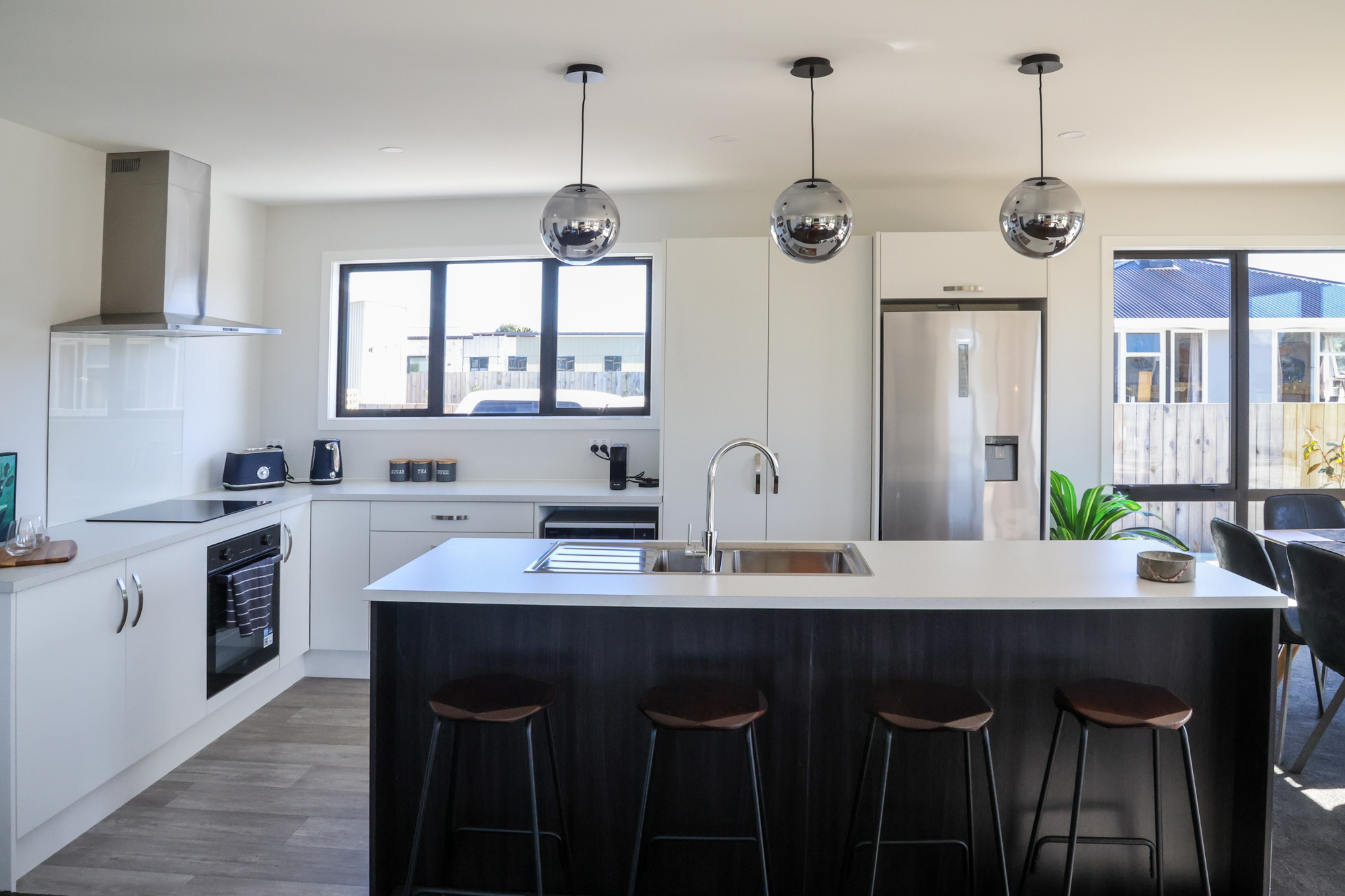

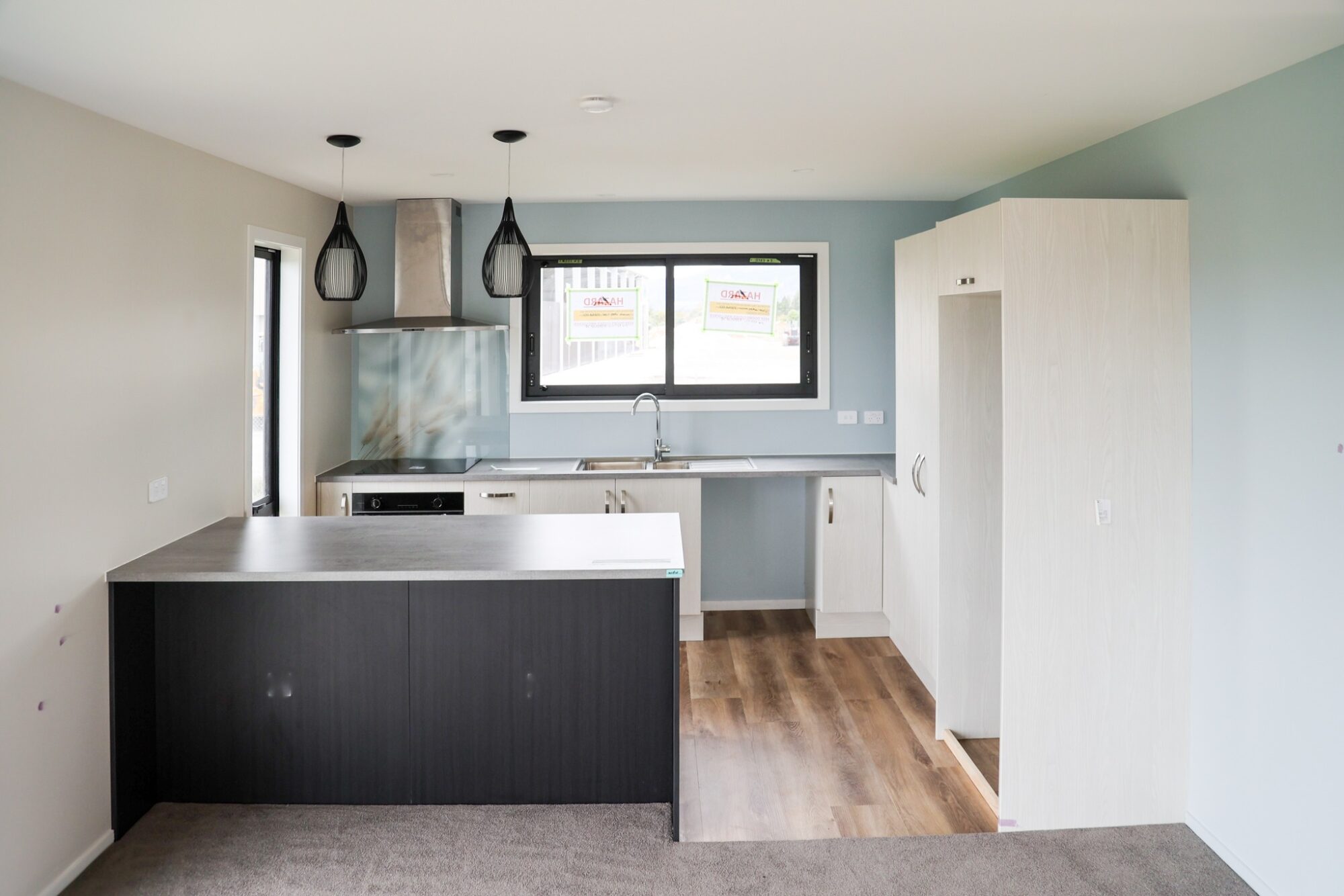

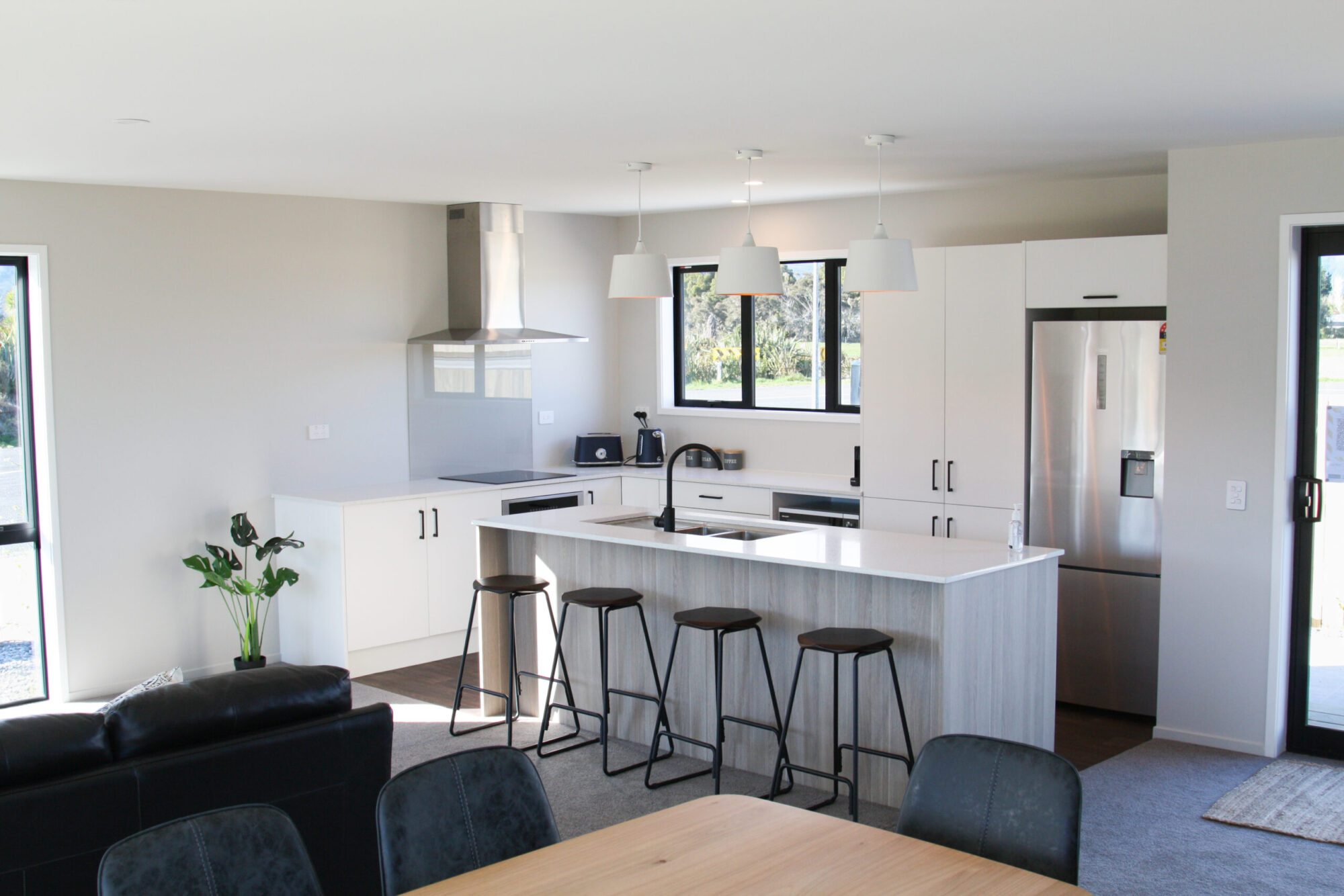

Kitchen

High quality kitchen cabinetry, appliances & hardware is used in all our homes.

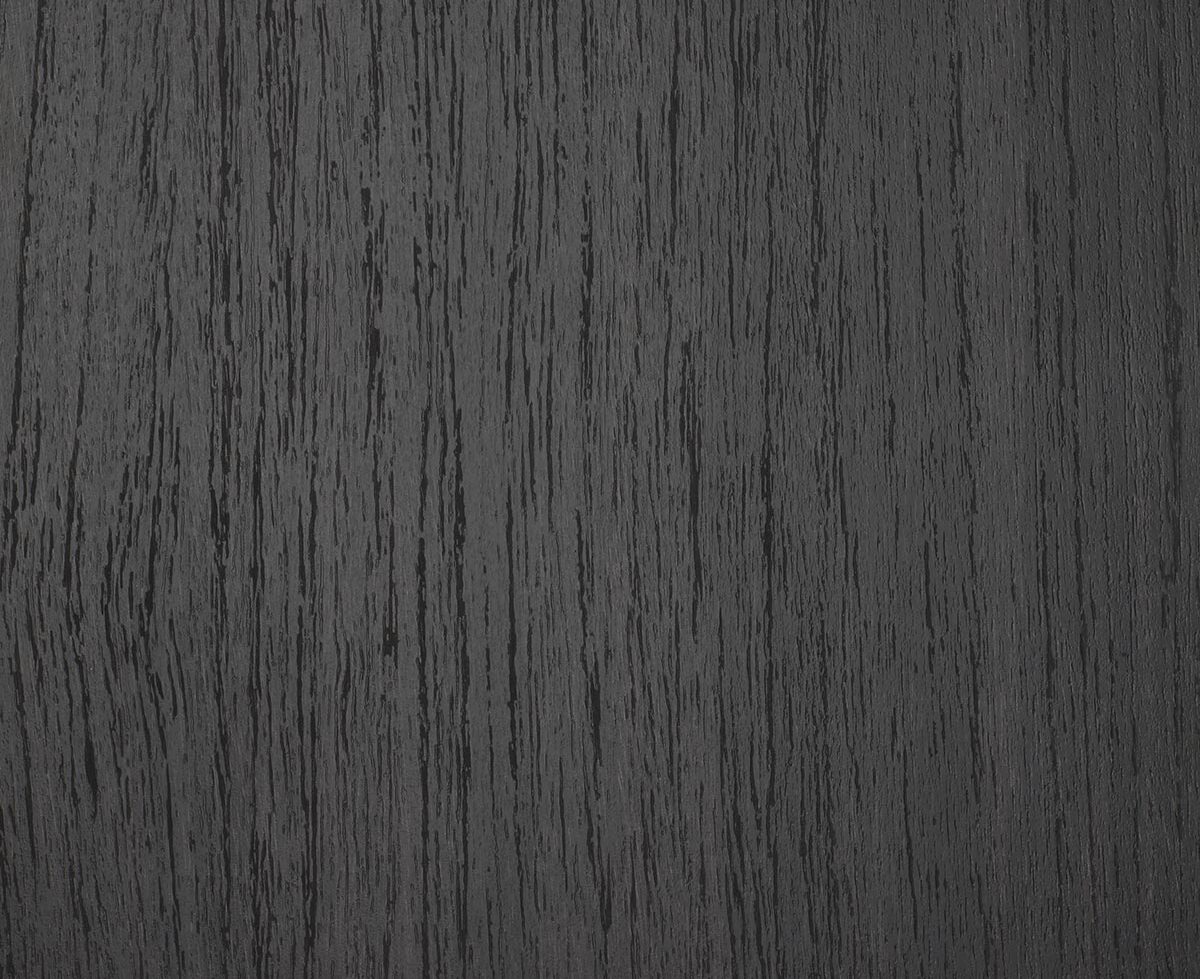

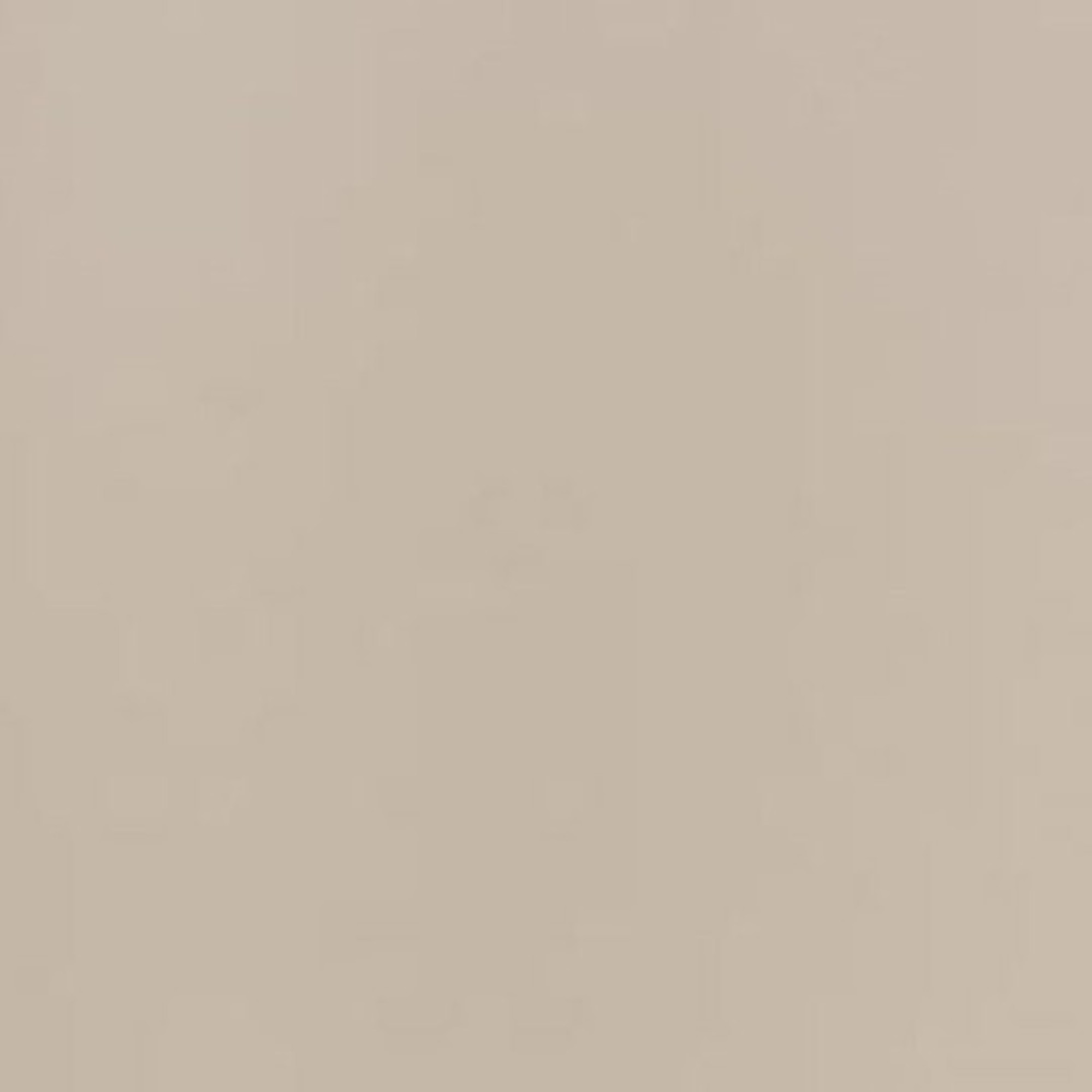

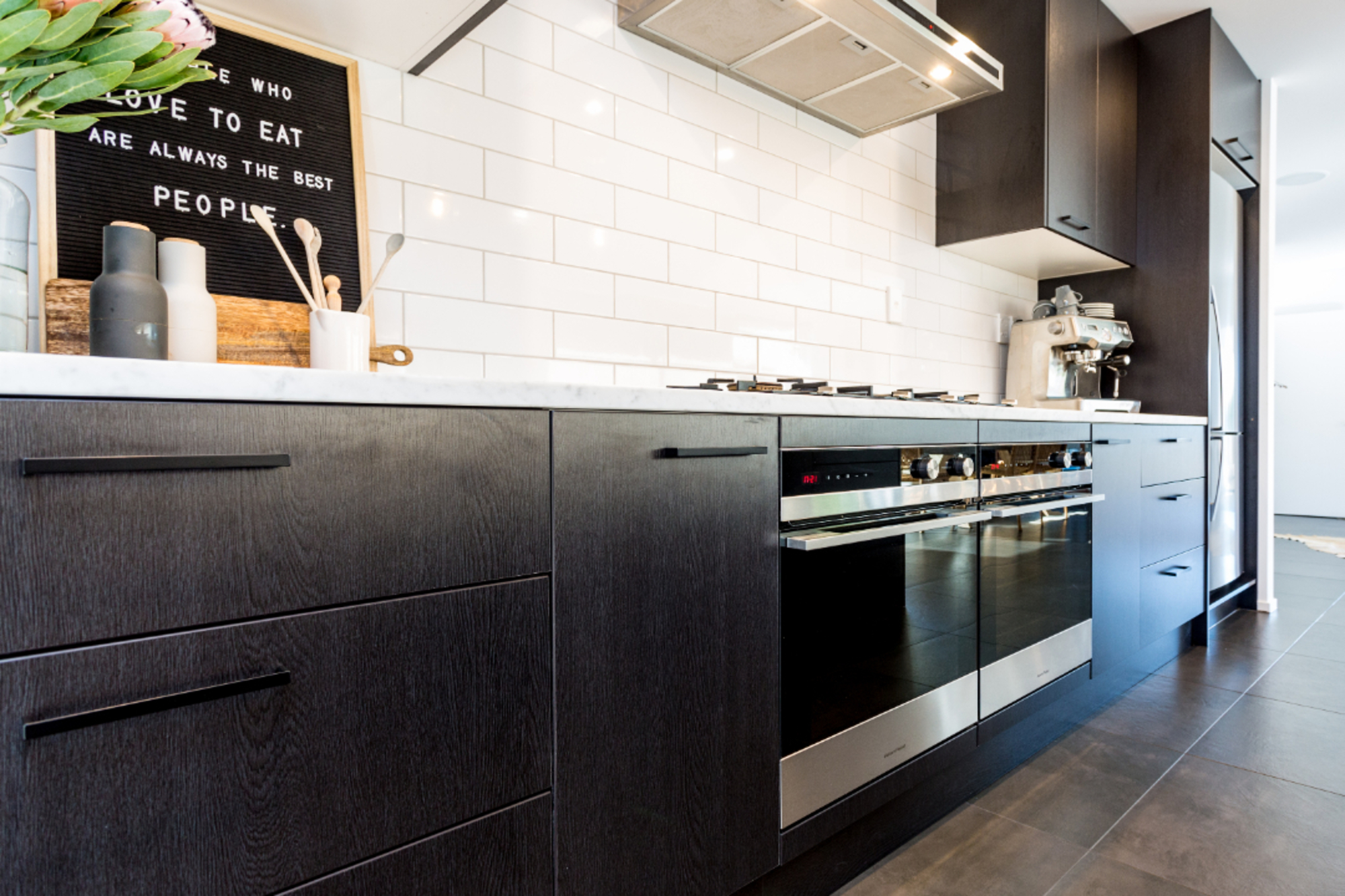

Doors & Panels – Panelform 18mm melamine kitchen doors & drawers. These are the most popular kitchen door in New Zealand, and for some very good reasons. Created in 18mm melamine-faced MDF board with a 1mm ZeroLine ‘laser edge’ tape, They are not only easy-care, scratch-resistant and durable, but are also the most cost-effective kitchen door option in our range. Available in 14 standard colours

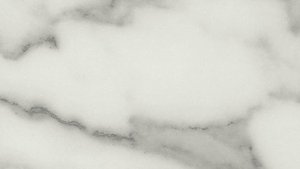

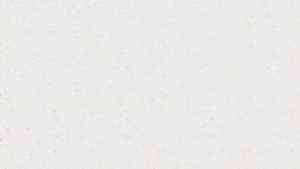

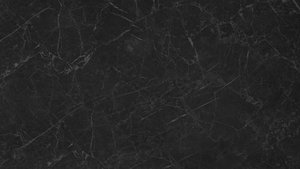

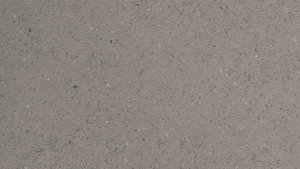

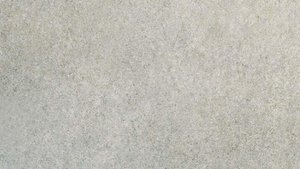

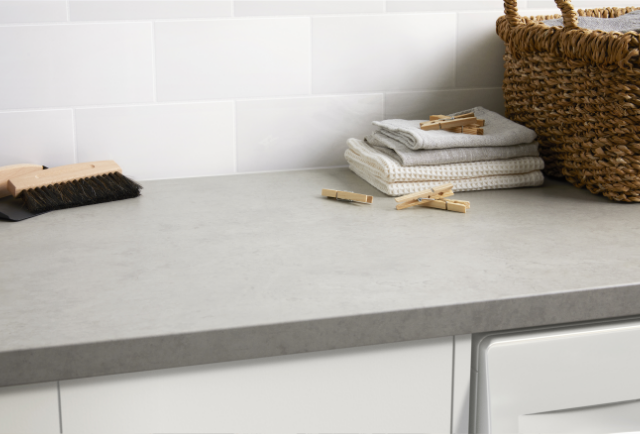

Benchtop – Freeform Select 30mm laminate benchtop. These benchtop are easy to clean and maintain also stain-resistant and nonporous. Available in 30 finishes.

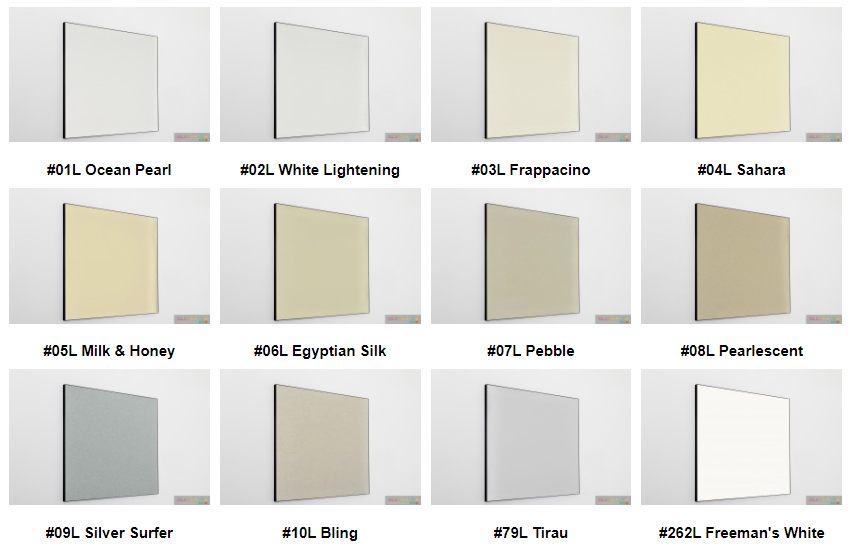

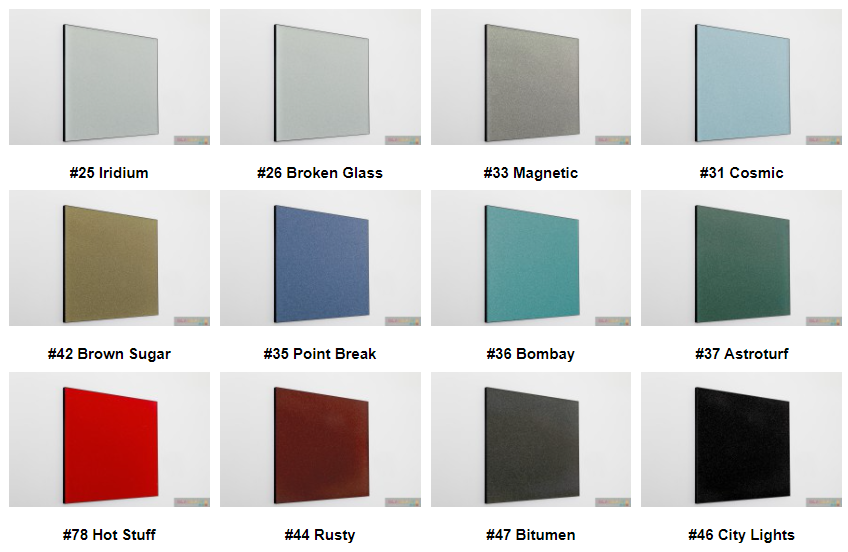

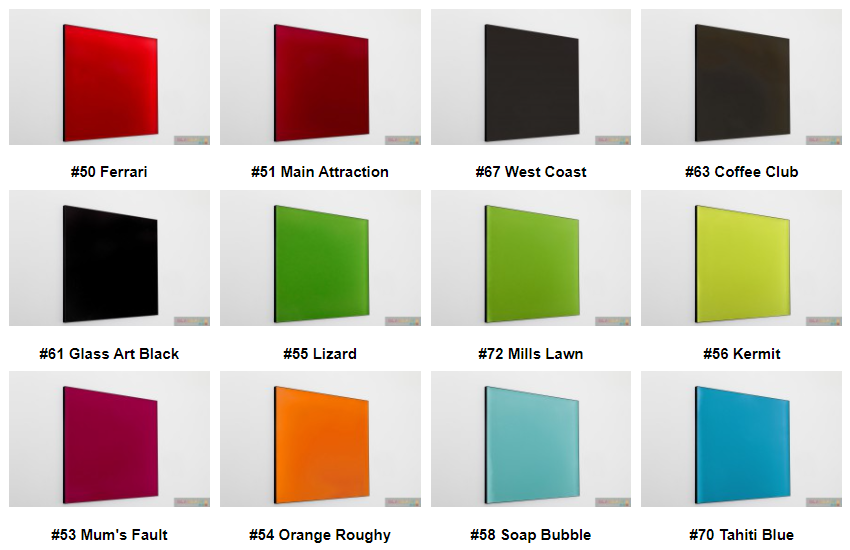

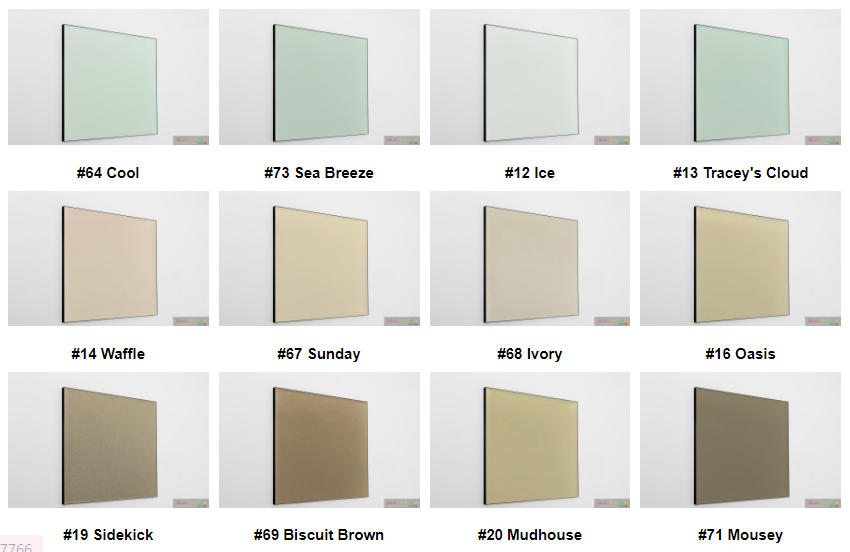

Splashback – Glassart Splashback 900x750mm glass. Available in 48 colours

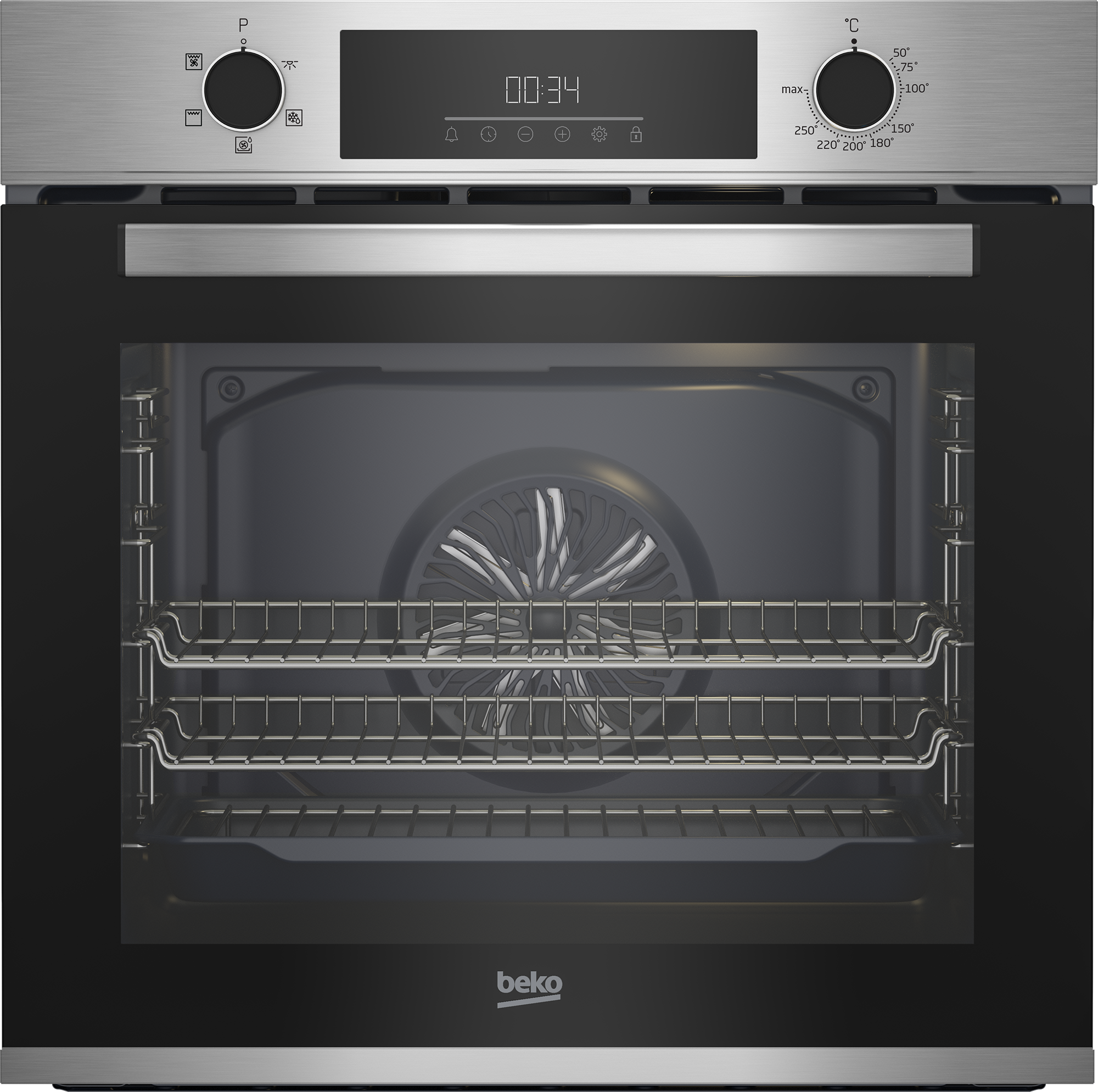

Oven – Beko Inbuilt Oven BBO6851FX Aeroperfect Design 60cm 85L dark stainless steel 5 function oven, fan forced
Cooktop – Beko Ceramic Cooktop HIC644021 60cm 4-Zone touch control 9 cooking levels
Rangehood – Beko Rangehood BRH90CX stainless steel slim pyramid canopy with stainless steel baffle filters

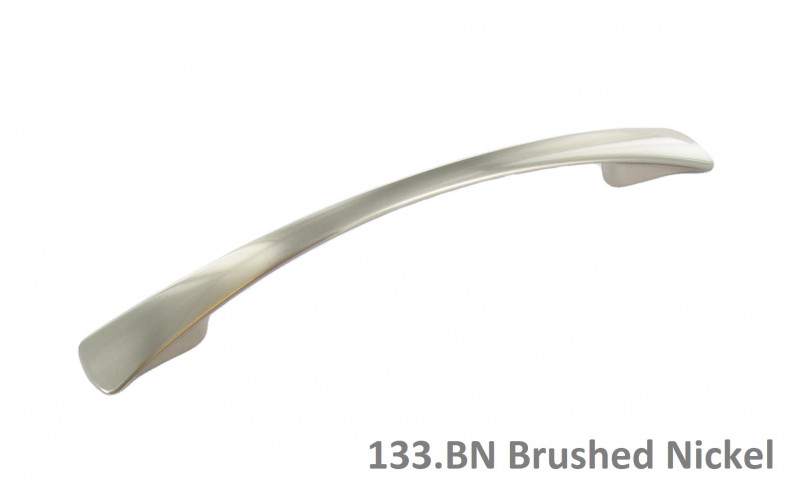

Handles – Enko standard handle range
Tap Mixer – Kohler Studio Highrise kitchen mixer in chrome

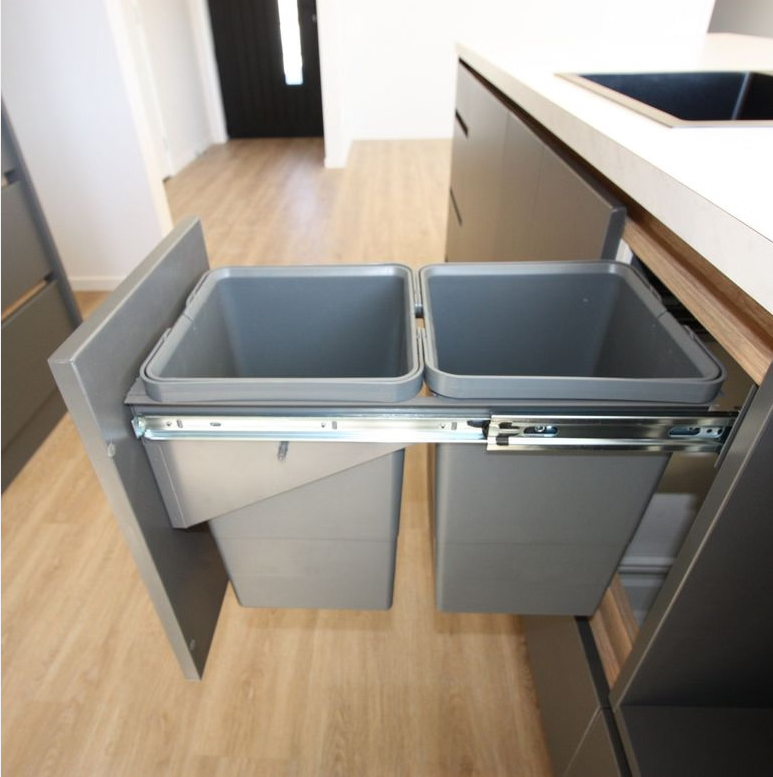

Rubbish Bin – Enko Simplex TB218.DS draw mounted pull out 2x 18L bins
Hardware – Soft-close Blum hinges and DTC soft-close drawers

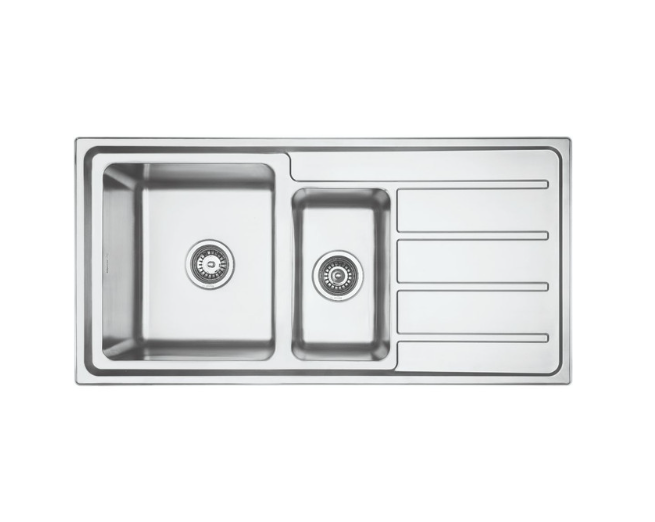

Sink – Top mounted Everglades EE201 Stainless Steel Bowl & ¼ with drainer

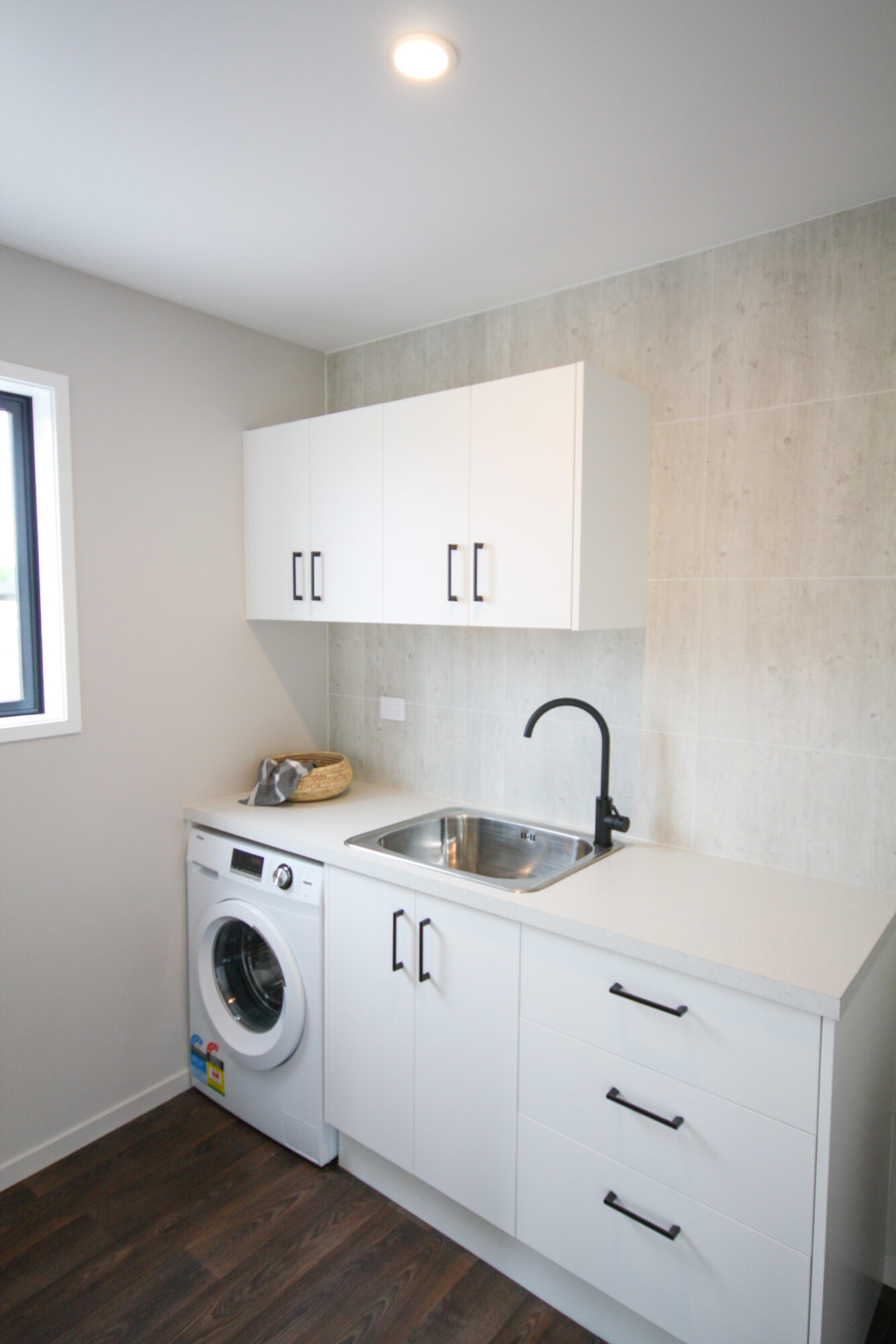

Laundry

Options of a basic supertub or a fully built in laundry & cabinetry to suit your needs.

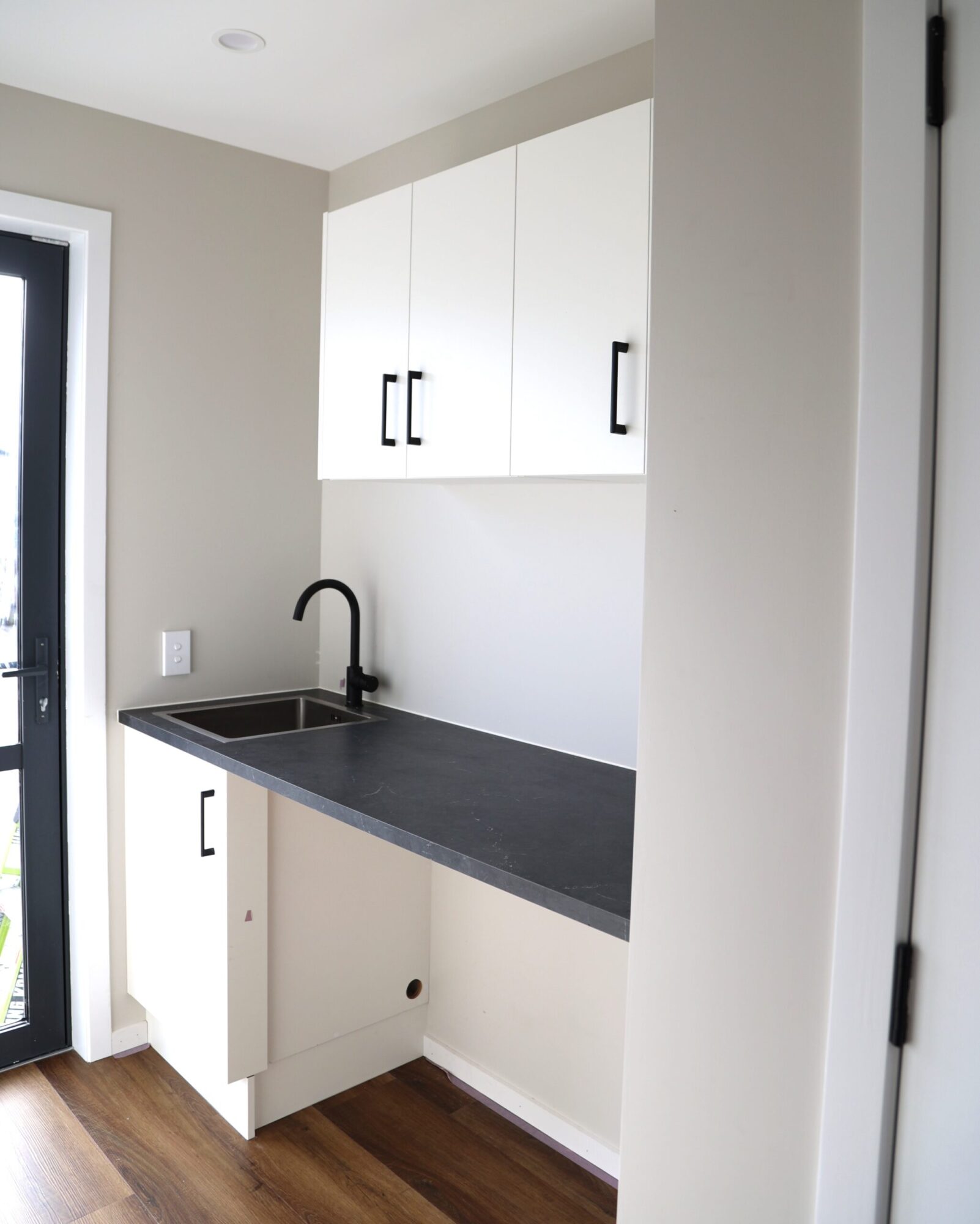

Laundry Tub – Robinhood Supertub with cupboard & mixer
Upgrade Option – Built-in laundry as per plan & specification to match kitchen

Wardrobes & Storage

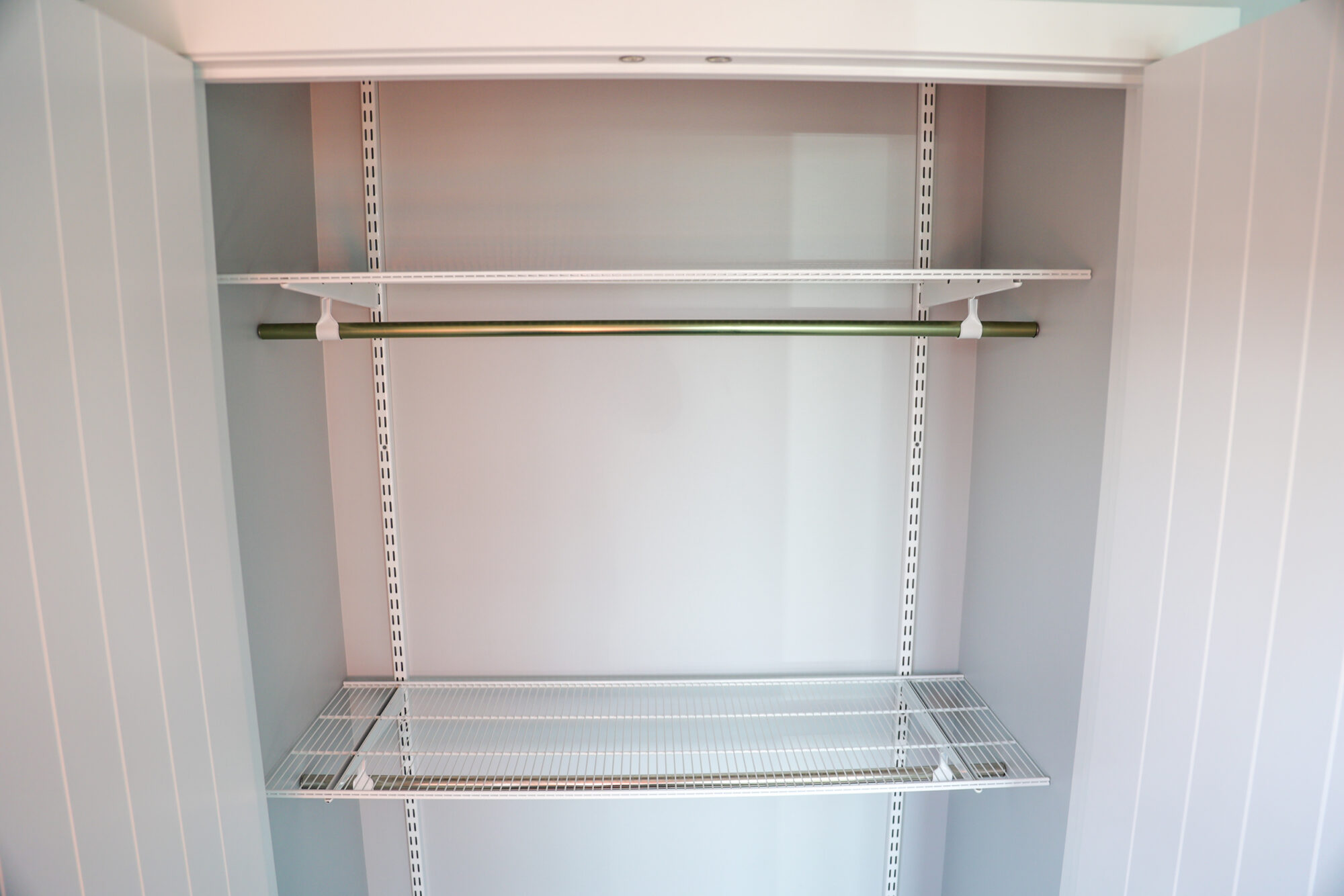

Options of a basic shelf & rail or fully adjustable shelves in wardrobes & storage areas.

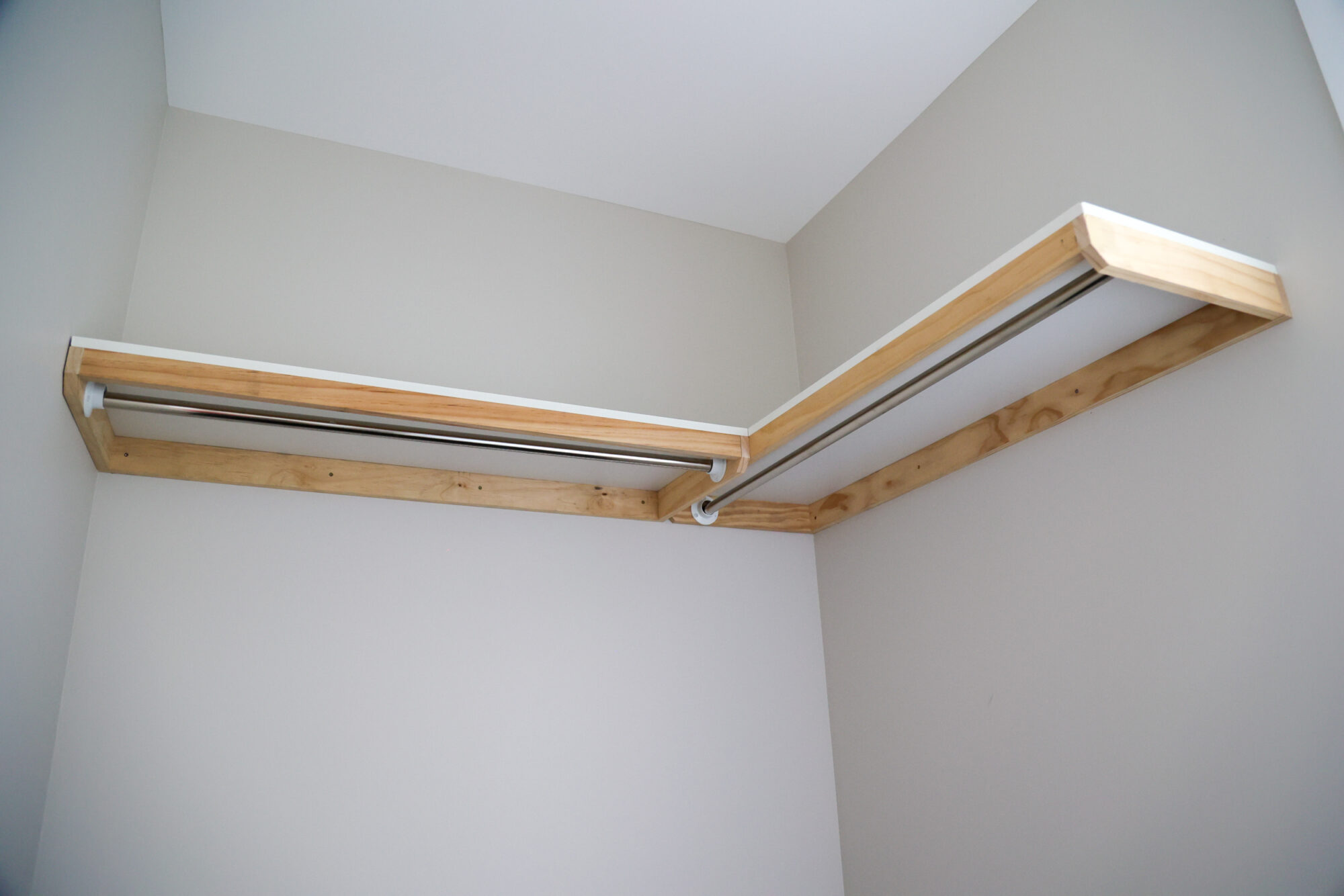

Wardrobes – One, full width, Lumberlok CRT rail with a 300mm white Melamine fixed shelf to all bedrooms
Walk In Robe – Two, full width, Lumberlok CRT rail with 300mm white Melamine fixed shelves
Store / Linen Cupboards – Three fixed white melamine shelves at 700mm, 1200mm, and 1700mm above the floor

Bathrooms

High quality bathroomware is used in all our homes with options to suit your needs.

Shower – Clearlite Pacific Shower Square or Round 900×900 flat wall with white trim

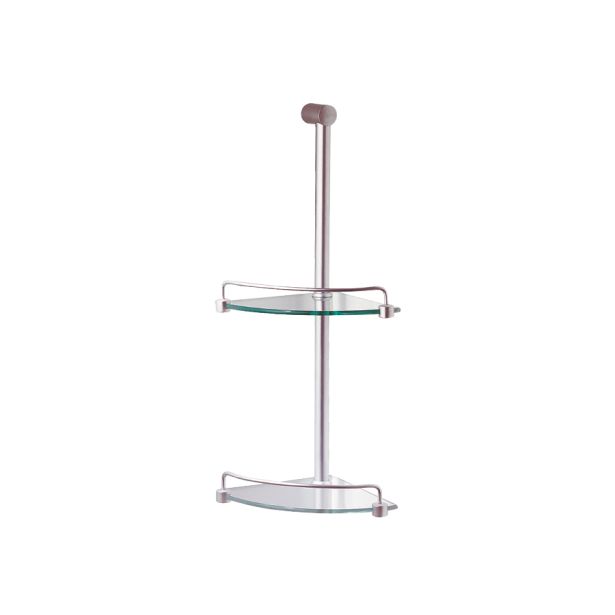

Shower Caddy – Plumbline Shower Caddy Progetto two tier
Shower Slide – Kohler studio pin 680mm
Shower Mixer – Kohler Shower Mixer studio pin
Vanity – Englefield Valencia Ceramic Top, Single Bowl One Drawer 750mm in white
Vanity Mixer – Kohler Studio Basin Mixer
Vanity Waste – Kohler 32mm popup waste with overflow
Toilet – Kohler Valencia back to wall Toilet Suite with Large Vario 160-235mm

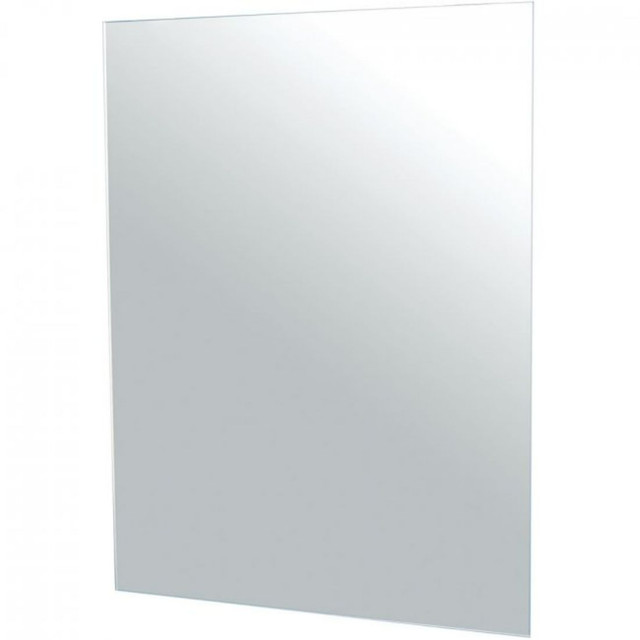

Mirror – polished edge high rectangle mirror set on vanity 1200mm x 750mm
Towel Rail – Goldair Non-heated 600mm 8 bar towel ladder
Toilet Roll Holder – Kohler Elate Toilet Roll Holder

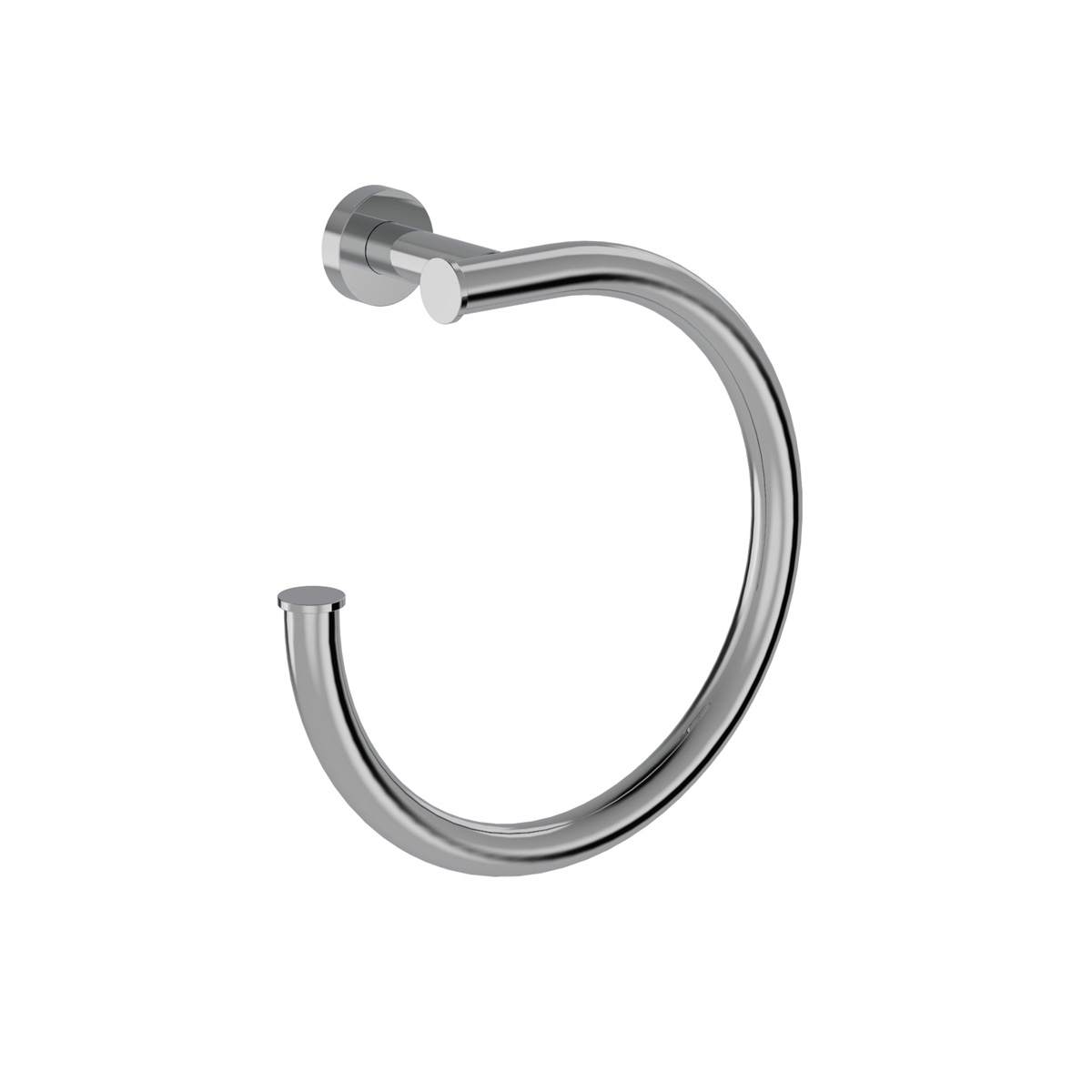

Towel Ring – Progetto Buddy Style Towel Ring

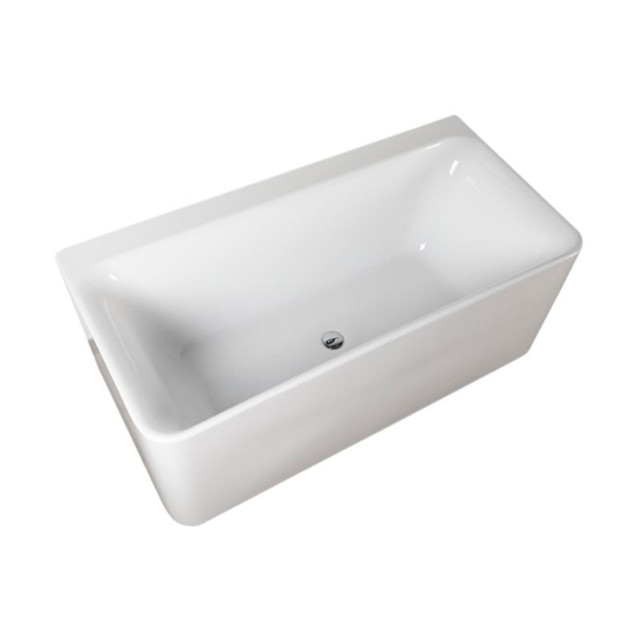

Bath – Englefield Valencia 1500 back to wall Bath (if applicable)

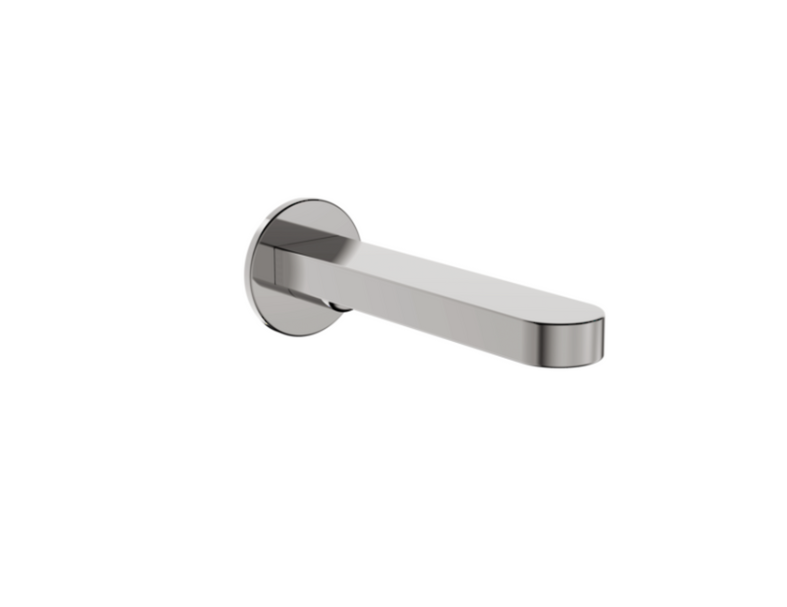

Bath Tap – Kohler Studio bath spout (if applicable)
Bath Waste – Kohler 40mm popup waste with overflow (if applicable)

Important Information

Factory building consent is included up to practical completion
Contract works & transport insurance is included only if we arrange transport
Full interior clean & quality check with client prior to hand over
1 year defects warranty & 10 year new home warranty for materials & workmanship

Items NOT included in the standard house specification:

Window treatments, curtains or blinds
Dishwasher, washing machine or dryer

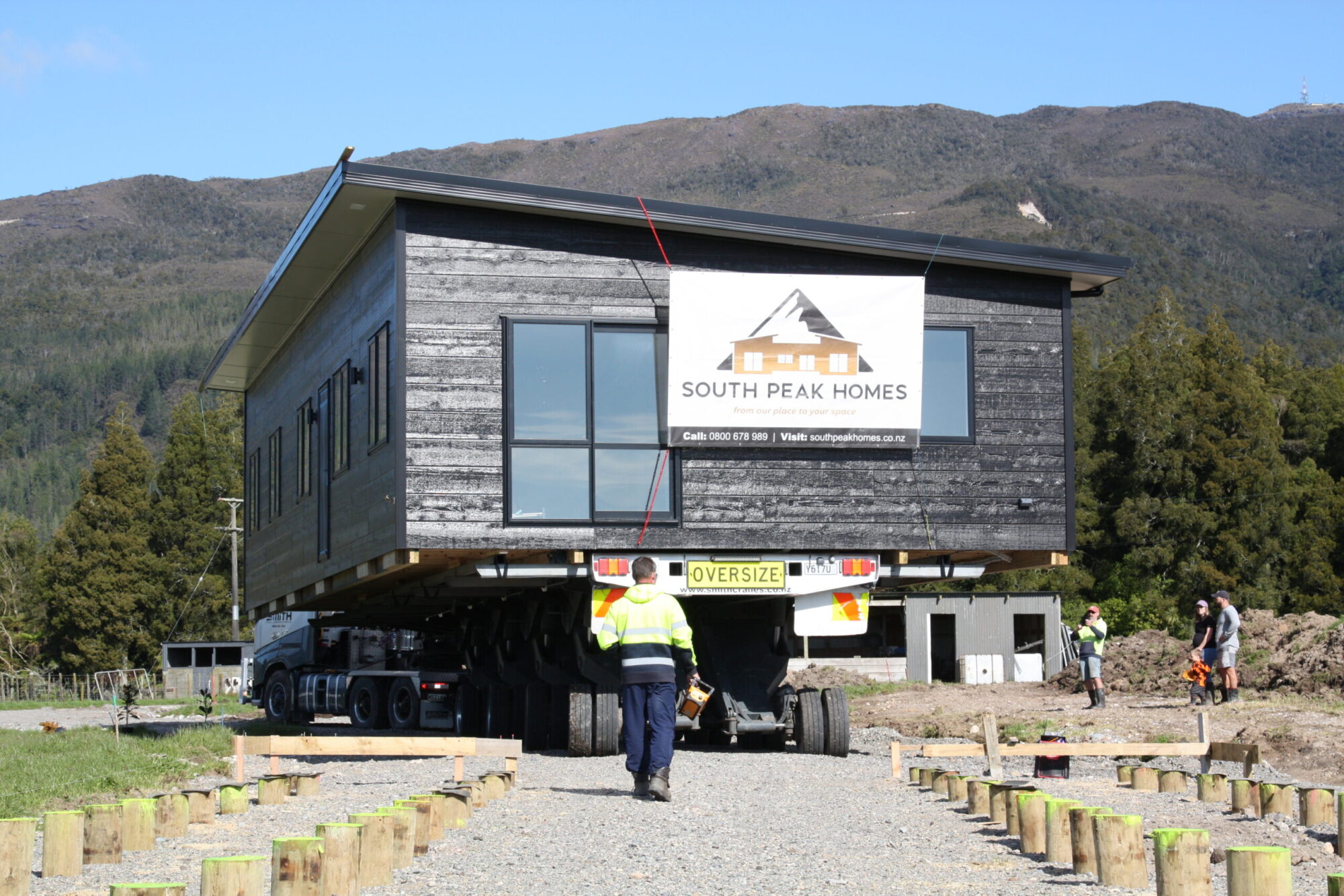

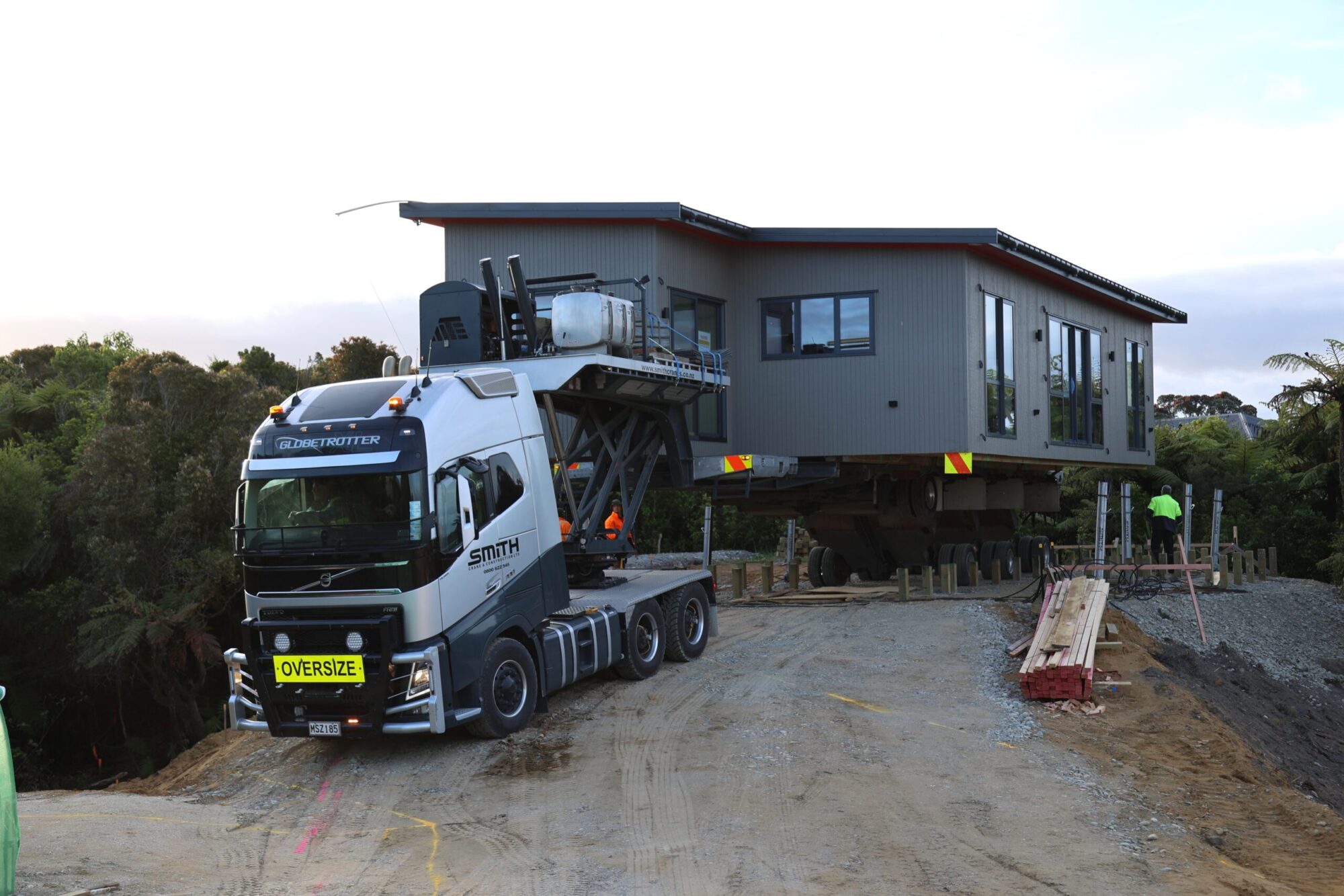

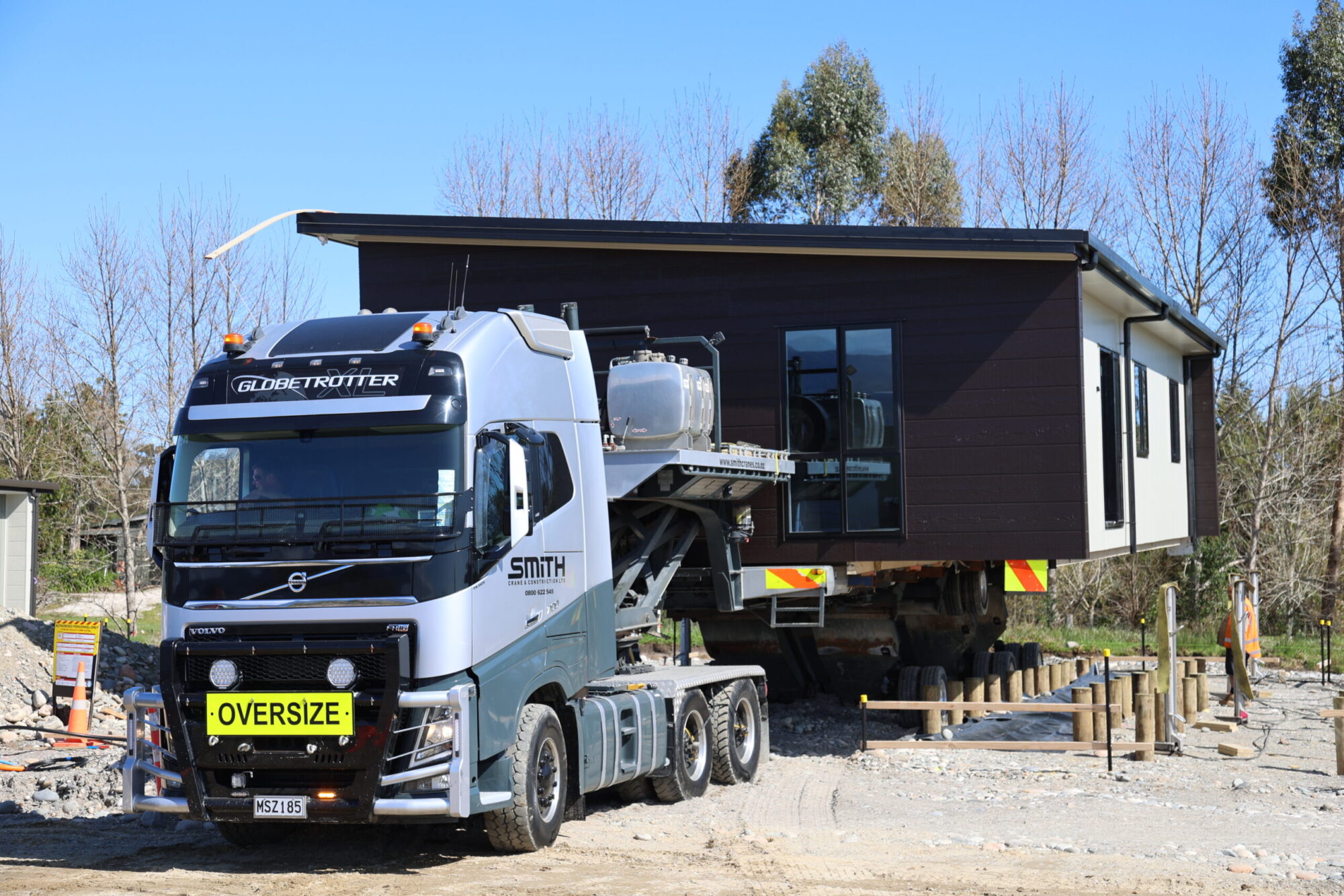

Transport to site, site preparation & truck access
Piles, decks, steps, baseboards & handrails
Onsite power, internet, water, wastewater, stormwater systems & connections
Carports, sheds or garages
Siteworks, consent fees & engineers ground bearing reports
Surveying of boundary & building position pegs
Resource consent, local bylaw requirements or council contribution fees
Consent notice requirements listed on the certificate of title
Vehicle crossings, driveways, paths or landscaping

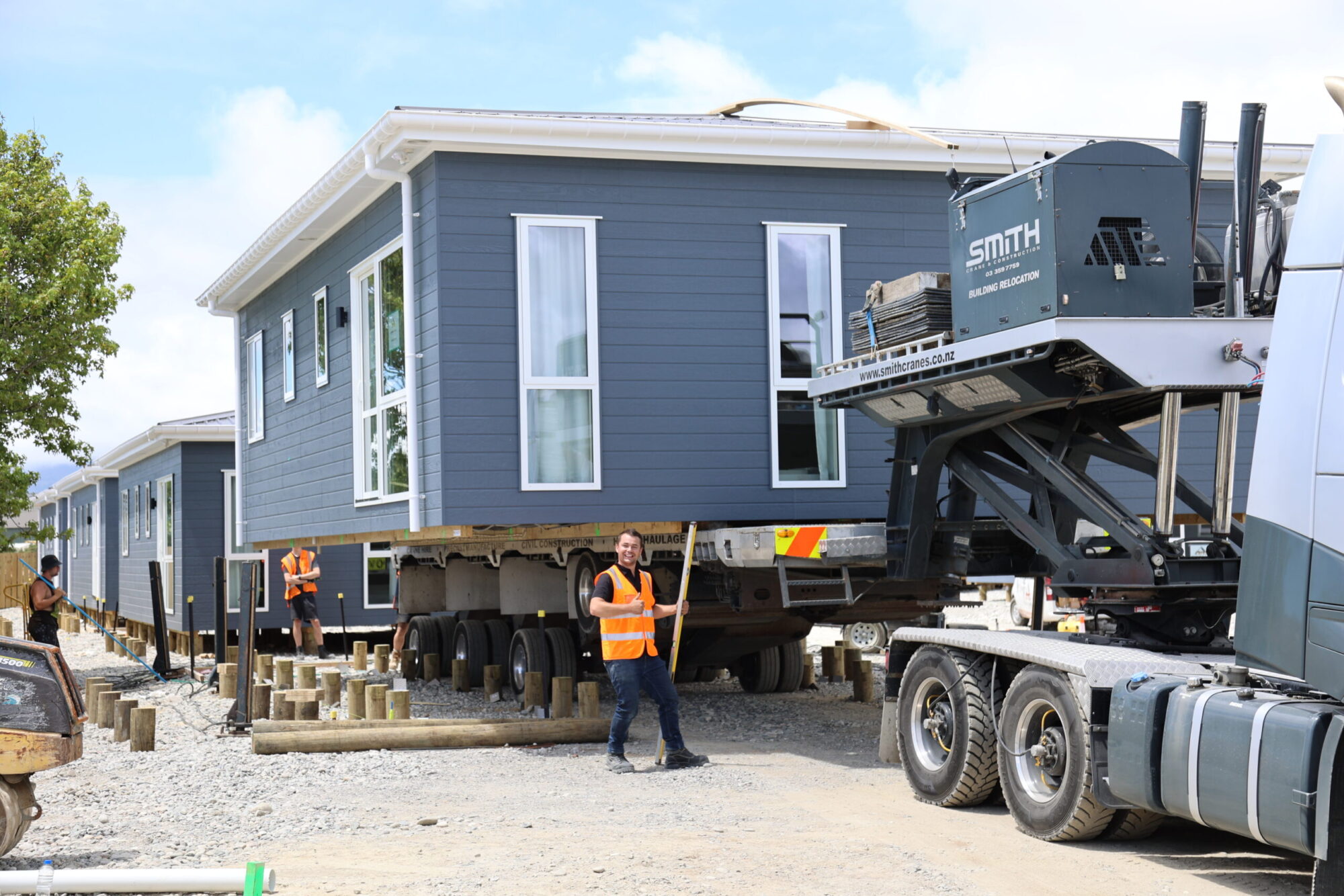

Piled Foundation

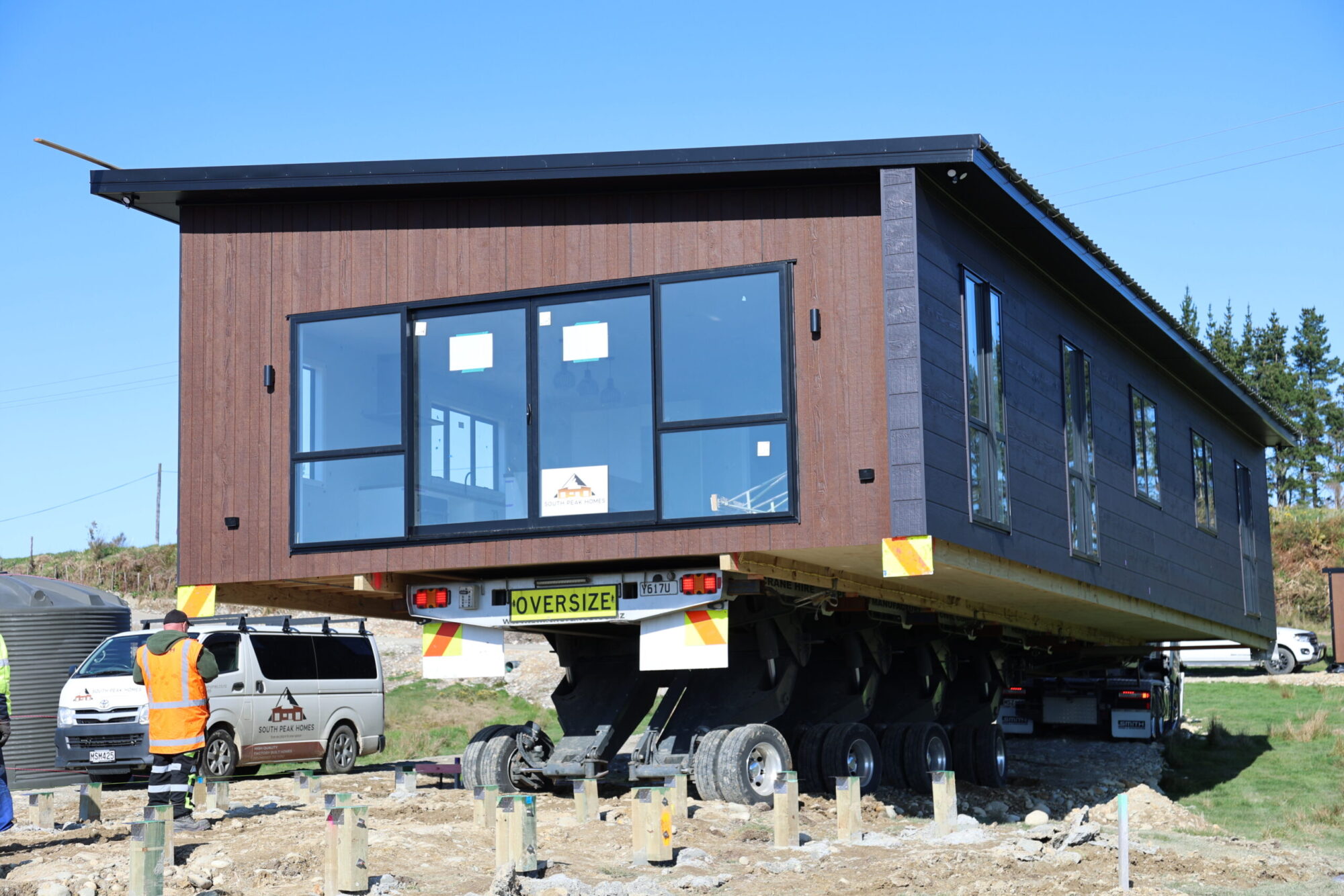

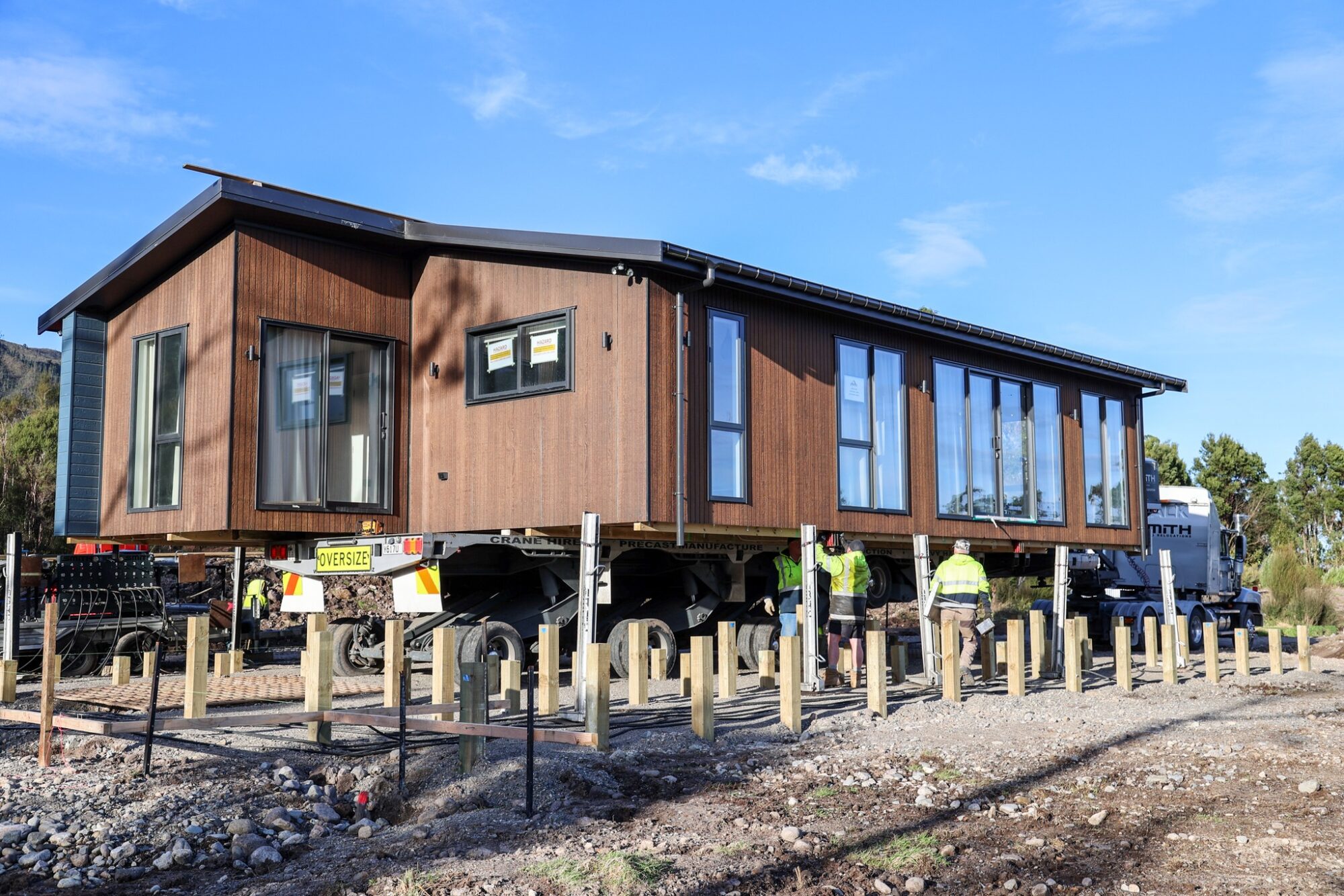

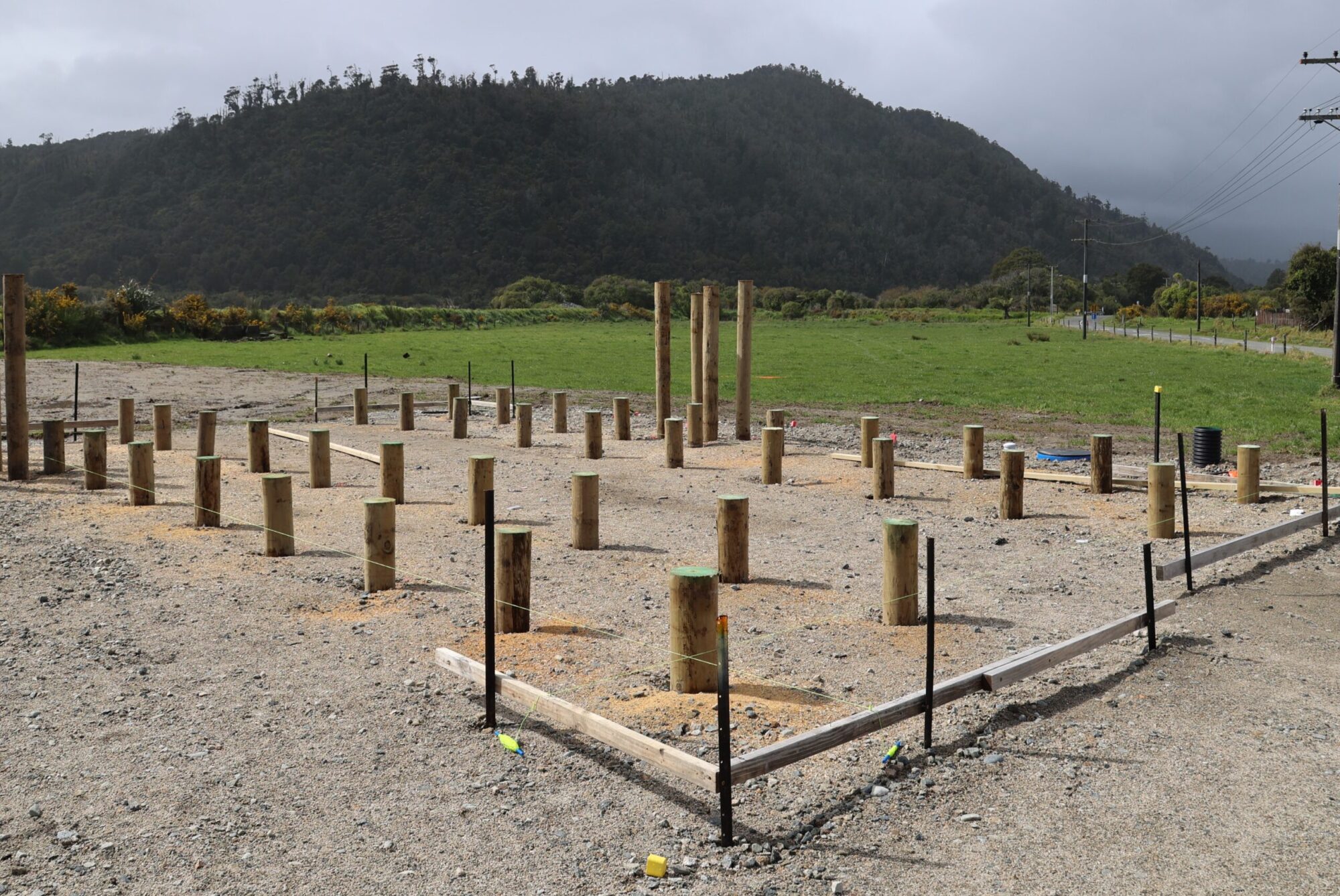

Our house foundations are either driven timber piles or concreted timber piles, depending on the engineers testing & report recommendations.

Decks, Steps & Baseboards

All decks, steps, baseboards, fences, landscaping & other site finishing work is subject to the clients requirements & priced accordingly per job.

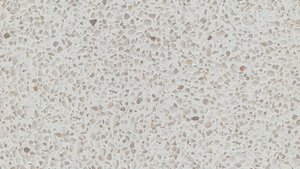

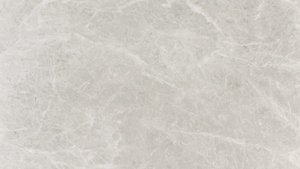

Upgrade options are available at additional costs, including coloured Marley downpipes, under bench mounted ACERO sinks, V Groove hollow core hinged doors, Inbuilt Pyrolytic Ovens, Induction Cooktops, built in Laundry Cabinetry, Beyond Tile on bathroom shower walls and Primestone, Caesarstone or Kleenstone benchtops. Talk to our New Home Consultants to discuss your needs further. All specifications are dependent on the final house design, climate zoning requirements, client’s needs, product availability & subject to change at anytime.
